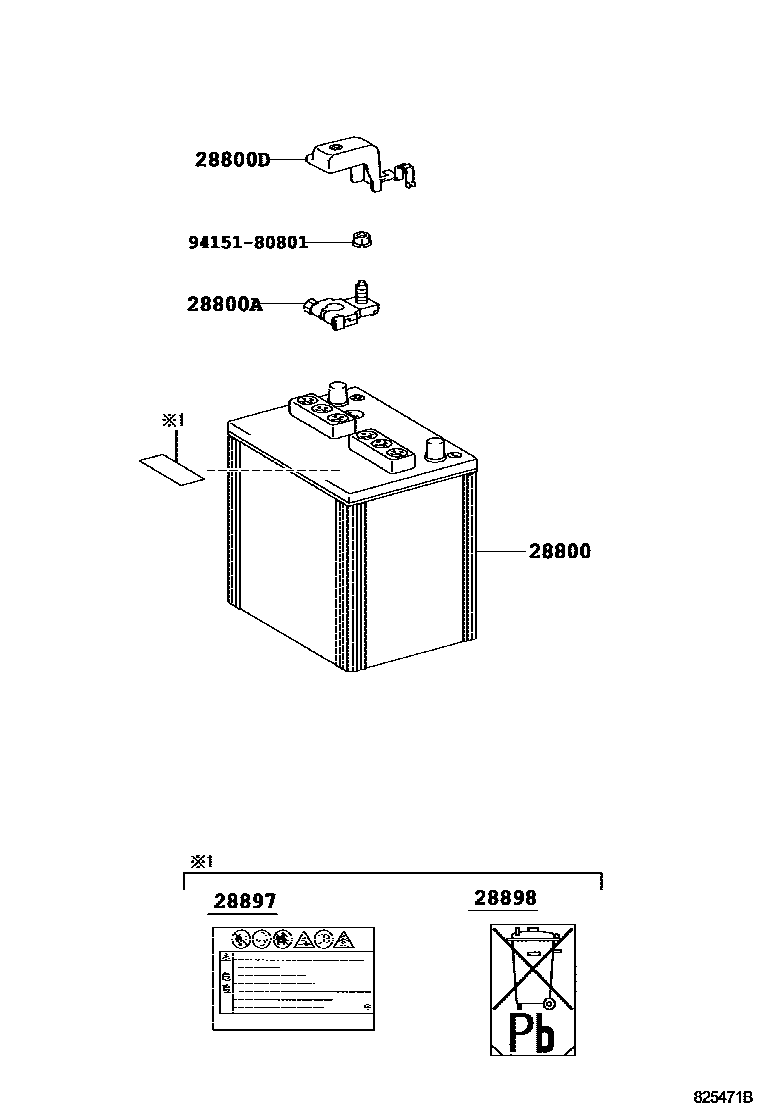

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i2GRFE..GSU4#200705-201204

80D26L,FURUKAWA

sub28800-38080

main28800-28210i2GRFE..GSU4#201204-201312

80D26L,PANASONIC

sub28800-28211

main28800-54020i2GRFE..GSU4#200705-201312

80D26L,YUASA

sub28800-67102

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFE..GSU4#..CHI200705-200909

main90982-05061i2GRFE..GSU4#200910-201007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48020i2GRFE..GSU4#..CHI200705-201007

28897PLATE, BATTERY CAUTION

main28897-50030i2GRFE..GSU4#..CHI200705-200901

sub28897-38060

28898PLATE, BATTERY

main28898-46020i2GRFE..GSU45..RUS201007

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
