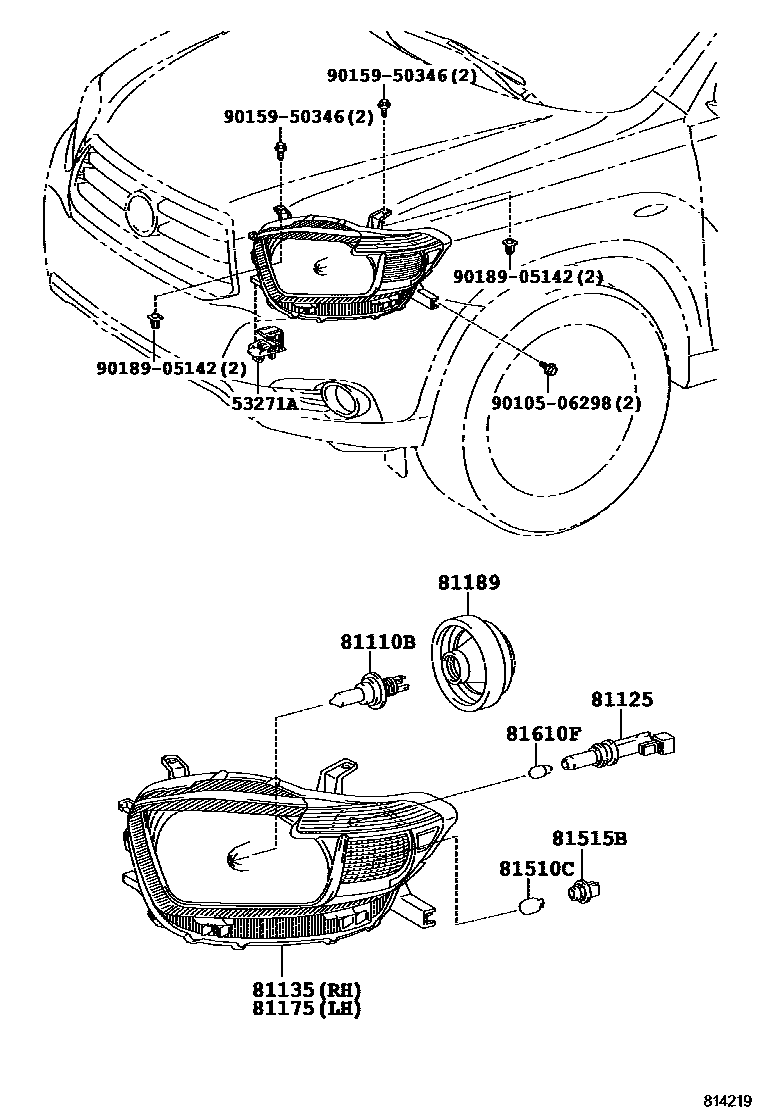

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060iGSU4#200705-201312

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iGSU4#201007

12V65W(SAE),60W(ECE)

main90981-13058iGSU4#..ARL200705-201007

12V 60/55W,HALOGEN

81125CORD, HEADLAMP

main81125-48470iGSU4#..CHI200705-201007

81135UNIT ASSY, HEADLAMP, RH

main81130-48500iGSU4#..ARL200705-201007

main81130-48510iGSU4#..(LIMD,STD)..CHI200705-200901

main81130-48520iGSU45..SPO200705-200901

main81130-48A20iGSU4#..ARL201007

main81130-48A30iGSU45..RUS201007

81175UNIT ASSY, HEADLAMP, LH

main81170-48490iGSU4#..ARL200705-201007

main81170-48500iGSU4#..(LIMD,STD)..CHI200705-200901

main81170-48510iGSU45..SPO200705-200901

main81170-48A20iGSU4#..ARL201007

main81170-48A30iGSU45..RUS201007

81189COVER, HEADLAMP

main90075-65002iGSU4#..CHI200705-201007

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGSU4#..CHI200705-201007

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iGSU4#..CHI200705-201007

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGSU4#..CHI200705-201007

12V 5W

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

12 parts on this diagram · 2 diagrams in section
