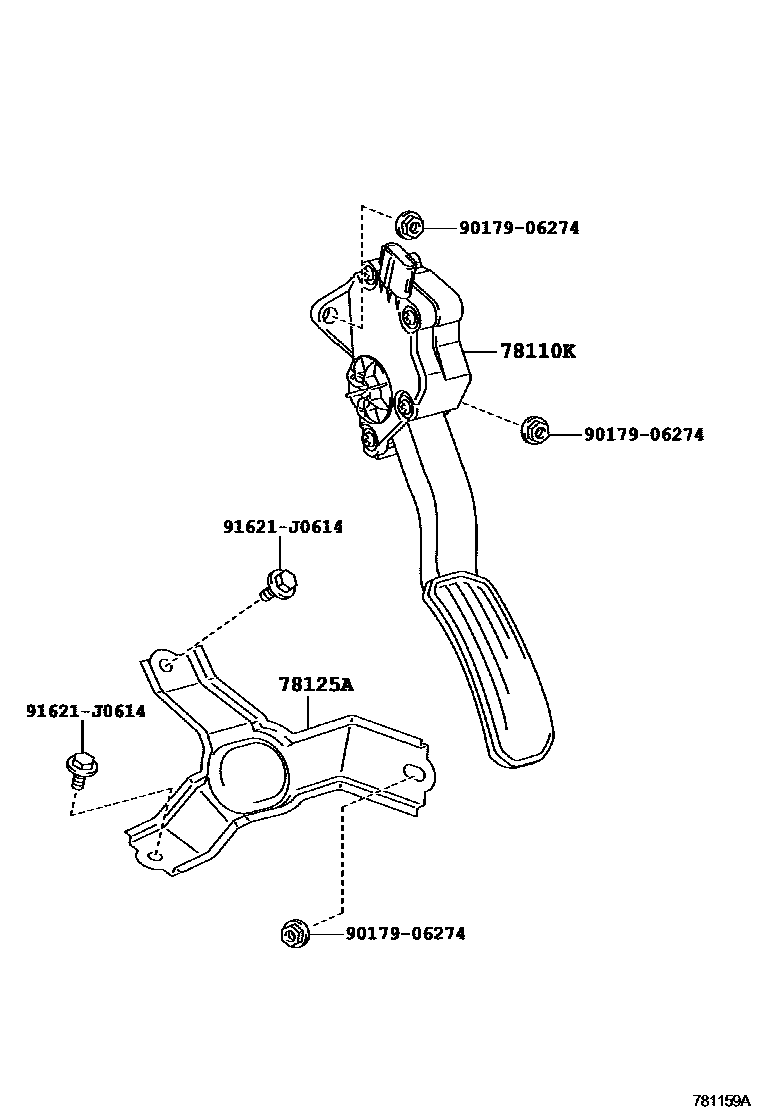

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33010iGSU4#..ARL200705-201007

main78110-33011iGSU4#..ARL201101

sub78110-33012

main78110-33020iGSU4#..CHI200705-200901

main78110-33110iGSU45..RUS201007

sub78110-33111

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-48010iGSU4#..CHI200705-200901

9017906274

main90179-06274

91621J0614

main91621-J0614

4 parts on this diagram · 2 diagrams in section
