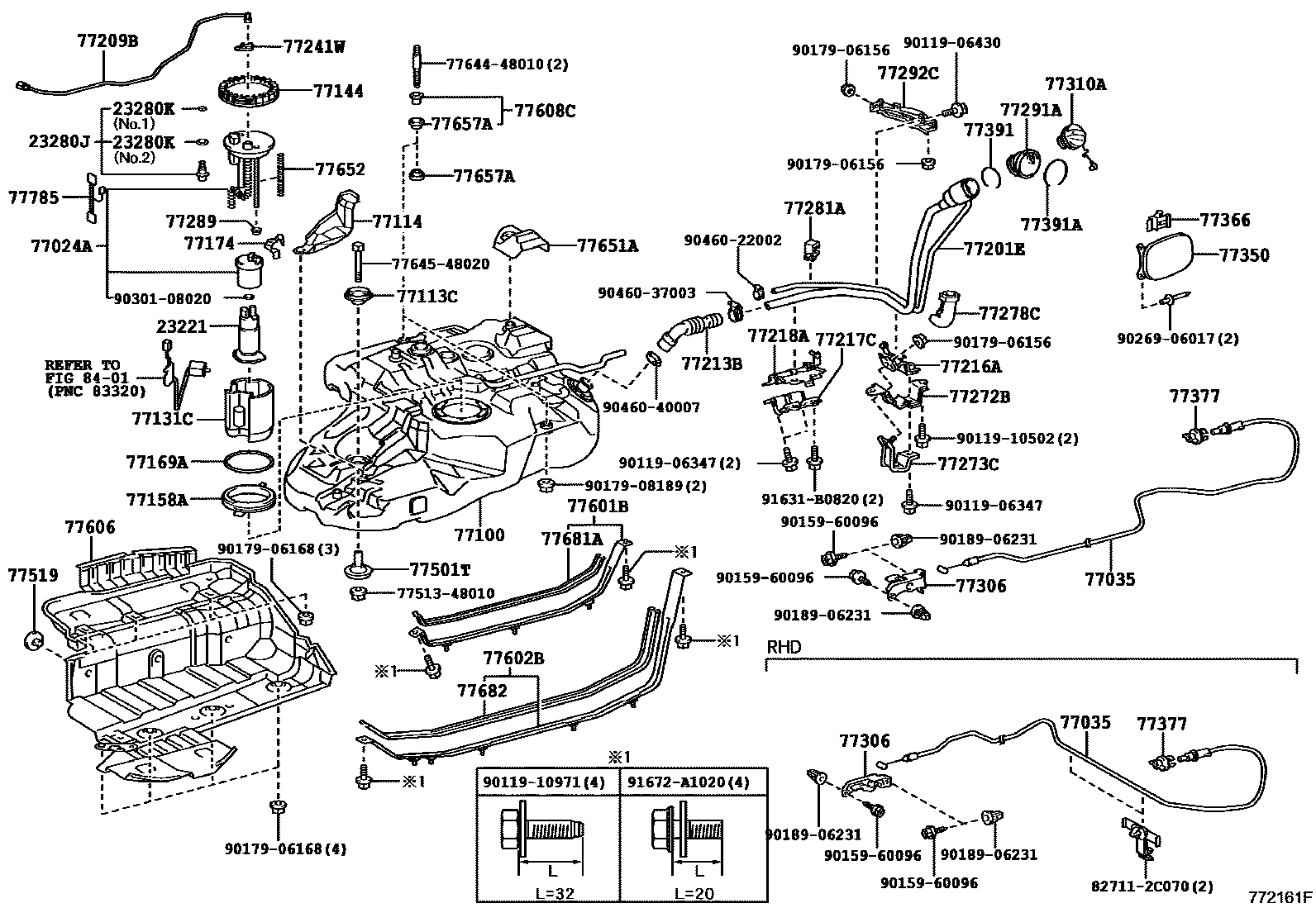

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE

23221PUMP, FUEL

main23220-31180i2GRFE..GSU4#..ARL200705-201007

main23220-31250i2GRFE..GSU4#..CHI200705-200901

sub23220-31180

main23220-31370i2GRFE..GSU4#201007

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2GRFE..GSU4#200705-201007

main23280-38020i2GRFE..GSU4#201007

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFE..GSU4#200705-201007

NO.1:REFER ILLUST.

main90301-08020i2GRFE..GSU4#..CHI200705-200901

main90301-15024i2GRFE..GSU4#200705-201007

NO.2:REFER ILLUST.

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-48040iGSU4#..ARL200705-201007

main77024-48050iGSU4#201007

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-48070iGSU45..RUS200705-200901

main77035-48080iGSU4#..ARL200705-201007

77100TANK ASSY, FUEL

main77001-48140iGSU4#..CHI200705-201007

77113CPLATE, FUEL TANK SIDE

main77103-48021iGSU4#..ARL200705-201007

77114PLATE, FUEL TANK SIDE, REAR

main77114-48010iGSU4#..CHI200705-201007

77131CSUB-TANK, FUEL, NO.1

main77131-48031iGSU4#200705-200706

sub77131-48032

main77131-48032iGSU4#..CHI200707-201007

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iGSU4#..CHI200705-201007

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iGSU4#..CHI200705-201007

77169AGASKET, FUEL SUCTION TUBE SET

main77169-48040iGSU4#200705-201002

main77169-48060iGSU4#201003-201007

77174SUPPORT, FUEL SUCTION, NO.1

main77174-22010iGSU4#..CHI200705-201007

main77174-48010iGSU4#201007

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-48220iGSU4#..CHI200705-201007

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-48070iGSU4#200705-201007

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48070iGSU4#..CHI200705-201007

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48040iGSU4#..CHI200705-201007

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48050iGSU4#..CHI200705-201007

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48070iGSU4#..CHI200705-201007

77241WCLIP, TUBE JOINT

main77241-33011iGSU4#..CHI200705-201007

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-48020iGSU4#..CHI200705-201007

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-48020iGSU4#200705-201312

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-48010iGSU4#..CHI200705-201007

77281ACLAMP, FUEL FILLER PIPE

main77281-48070iGSU4#..CHI200705-201007

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGSU4#..CHI200705-201007

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-48040iGSU4#..CHI200705-201007

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-48020iGSU4#..CHI200705-201007

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-48010iGSU4#..ARL200705-201007

main77306-48020iGSU4#..CHI200705-200901

77310ACAP ASSY, FUEL TANK

main77300-52030iGSU4#..ARL200705-201007

77350LID ASSY, FUEL FILLER OPENING

main77350-48060iGSU4#..CHI200705-201007

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-21010iGSU4#..CHI200710-201007

main77360-35010iGSU4#200705-200709

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iGSU4#..ARL200705-201007

77391RING, FUEL INLET BOX

main77391-12020iGSU4#..CHI200705-201007

77391ARING, FUEL INLET BOX

main77391-33010iGSU4#200705-201007

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-48011iGSU4#..CHI200705-201007

77519SPACER, FUEL TANK BRACKET

main77529-48010iGSU4#..CHI200705-201007

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-48070iGSU4#..ARL200705-201007

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48060iGSU4#..CHI200705-201007

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-48070iGSU4#..ARL200705-201007

77608CCUSHION SET, FUEL TANK

main77608-48011iGSU4#..ARL200705-201007

RH

main77608-48020iGSU4#..ARL200705-201007

LH

77651ACUSHION, FUEL TANK, NO.1

main77651-48010iGSU4#..ARL200705-200904

77652CUSHION, FUEL TANK, NO.1

main77652-48030iGSU4#200705-201312

77657ACUSHION, FUEL TANK, NO.5

main77655-48011iGSU4#..CHI200705-201007

RH

main77655-48020iGSU4#..ARL200705-201007

LH

77681ASEAT, FUEL TANK BAND

main77681-48050iGSU4#200705-201007

77682SEAT, FUEL TANK BAND, LH

main77682-48050iGSU4#..CHI200705-201007

77785HARNESS, FUEL PUMP

main77785-48020iGSU4#..CHI200705-201007

main77785-48030iGSU4#201007

8401

7751348010RETAINER, LPG TANK BRACKET, FRONT

main77513-48010

7764448010BOLT, FUEL TANK

main77644-48010

7764548020PACKING, FUEL TANK BRACKET UPPER, B

main77645-48020

827112C070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C070

9011906347

main90119-06347

9011906430

main90119-06430

9011910502

main90119-10502

9011910971

main90119-10971

9015960096

main90159-60096

9017906156

main90179-06156

9017906168

main90179-06168

9017908189

main90179-08189

9018906231

main90189-06231

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046037003

main90460-37003

9046040007

main90460-40007

91631B0820

main91631-B0820

91672A1020

main91672-A1020

67 parts on this diagram · 3 diagrams in section
