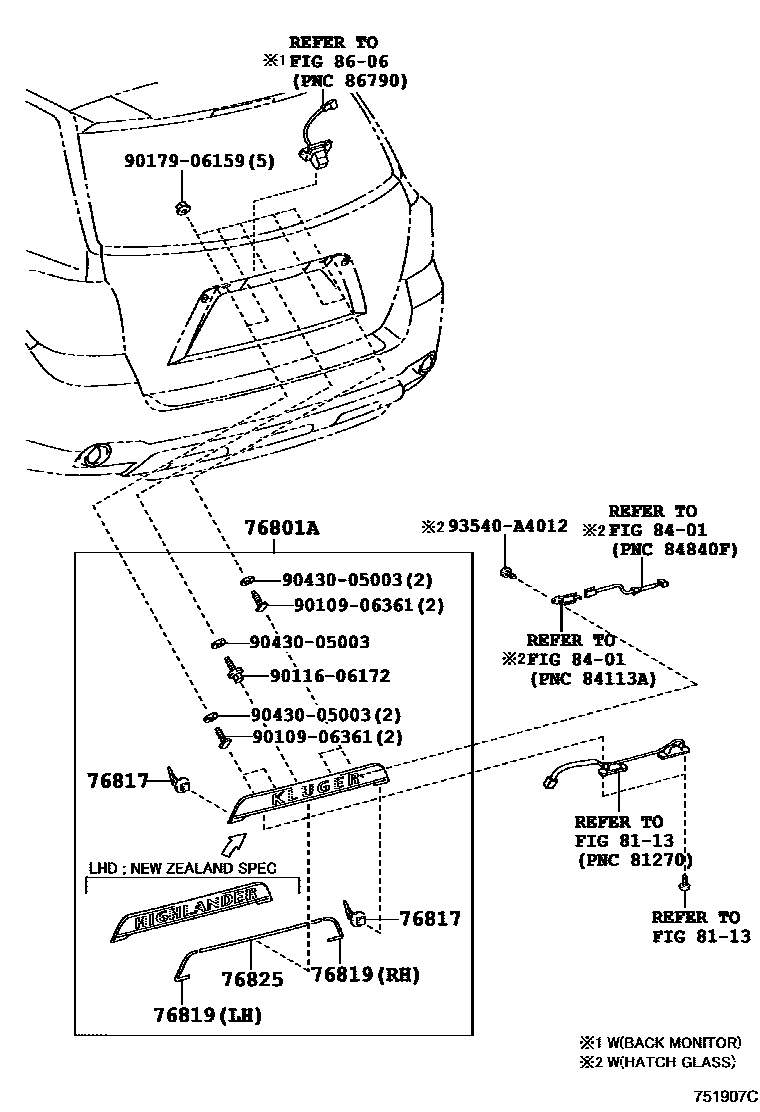

REAR MOULDING

0001 1 0002 1

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-48902iGSU40..CHI200705-200901

NO PAINT REQ.

main76801-48903iGSU45..LIMD200705-200901

PLATED

sub76801-48901

main76801-48904iGSU4#..STD..ARL200705-201007

NO PAINT REQ.

main76801-48905iGSU4#..GD200705-201007

PLATED

sub76801-48904

main76801-48906iGSU45..SPO200705-200901

PLATED

sub76801-48901

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-50010iGSU4#200705-200801

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-48010iGSU4#..CHI200705-201007

RH

main76819-48020iGSU4#201007

RH

main76829-48010iGSU4#..CHI200705-201007

LH

main76829-48020iGSU4#201007

LH

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48040iGSU4#..CHI200705-201007

main76825-48060iGSU4#201007

8113

8401

8606

9010906361

main90109-06361

9011606172

main90116-06172

9017906159

main90179-06159

9043005003

main90430-05003

93540A4012

main93540-A4012

12 parts on this diagram · 2 diagrams in section
