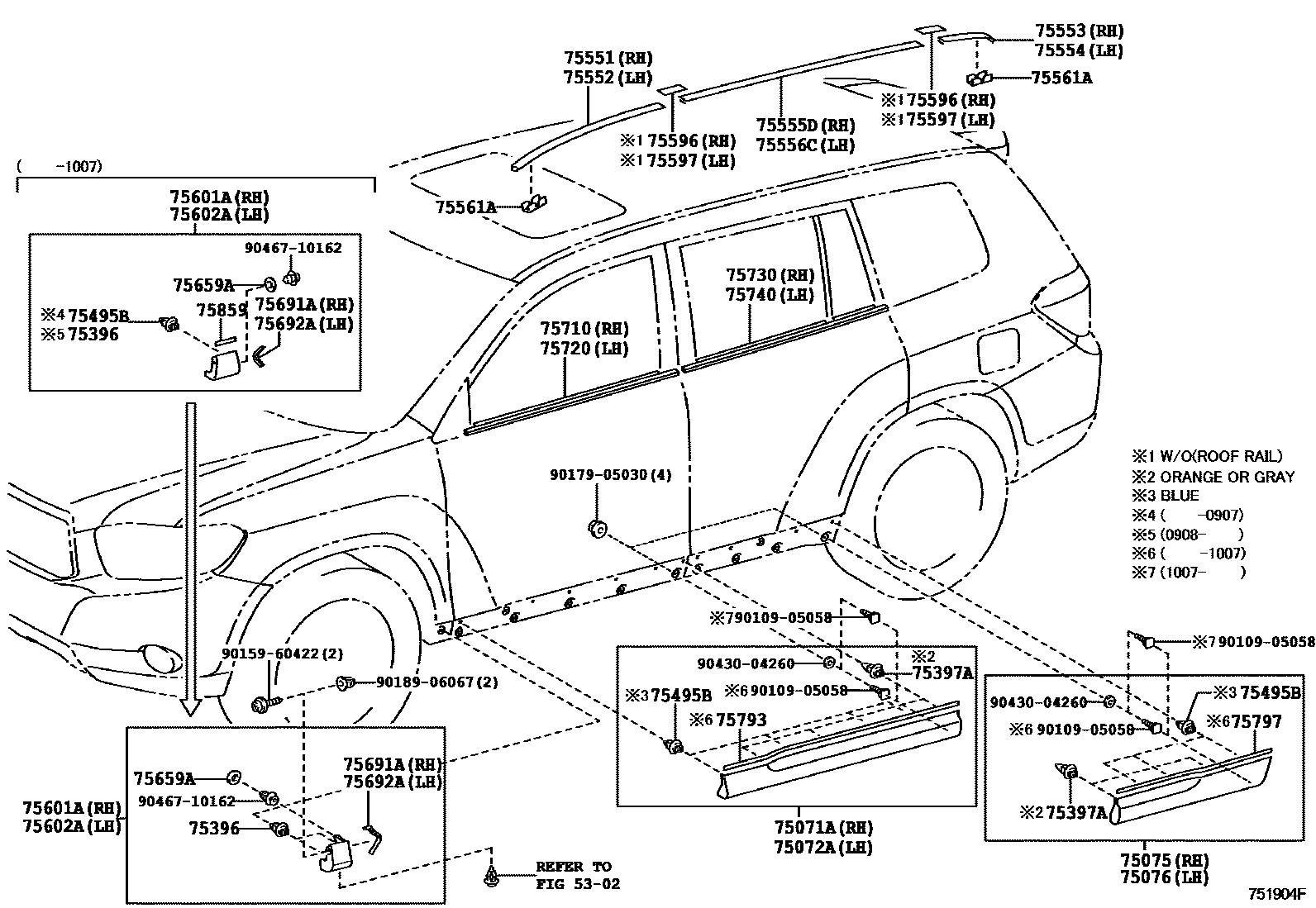

SIDE MOULDING
5302
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75396CLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
75495BCLIP, OUTSIDE MOULDING, NO.4
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75553MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75554MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
NO PAINT REQ.
PAINT REQ.
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
NO PAINT REQ.
PAINT REQ.
75659APAD, QUARTER PANEL MOULDING, NO.1
75691APAD, FRONT FENDER OUTSIDE MOULDING, RH
75692APAD, FRONT FENDER OUTSIDE MOULDING, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75797PAD, REAR DOOR OUTSIDE MOULDING, UPPER
sub75793-48020
75859PROTECTOR, FRONT FENDER SIDE
9010905058
main90109-05058
9015960422
main90159-60422
9017905030
main90179-05030
9018906067
main90189-06067
9043004260
main90430-04260
9046710162
main90467-10162
35 parts on this diagram · 1 diagram in section
