INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

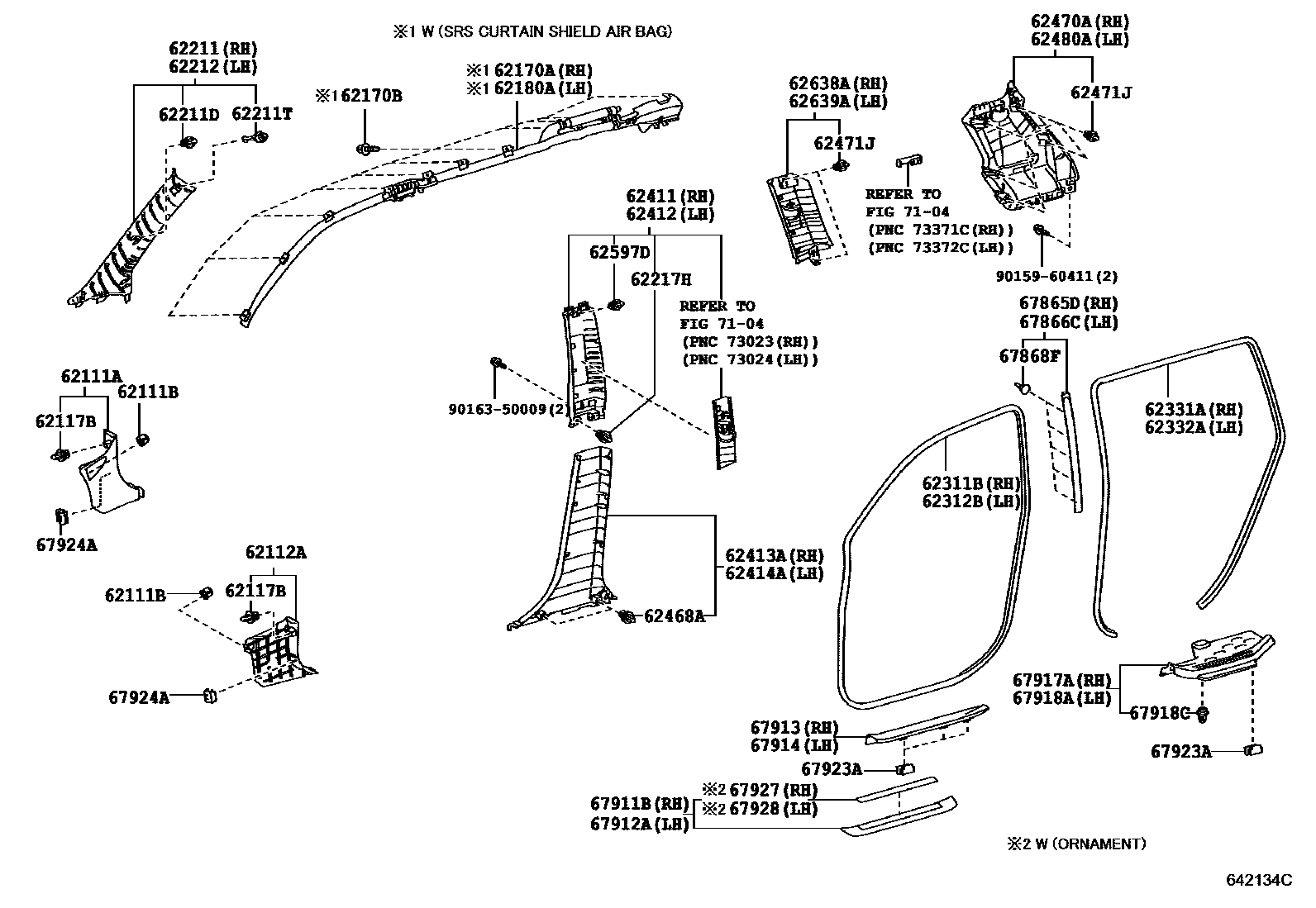

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-48040-B0i200705-201305
GRAY,TRIM1#
sub62101-48041
main62101-48040-C0i200705-201305
BLACK,TRIM2#
sub62101-48041
main62101-48040-E0i200705-201305
SAND BEIGE,TRIM4#
sub62101-48041
main62101-48041-B0i201306-201312
GRAY,TRIM1#
main62101-48041-C0i201306-201312
BLACK,TRIM2#
main62101-48041-E0i201306-201312
SAND BEIGE,TRIM4#
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06147i201301
main90467-06193-C0i200705-201007
BLACK,TRIM2#
main90467-06193-C0i200705-201212
BLACK
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-48070-B0i200705-201305
GRAY,TRIM1#
sub62102-48071
main62102-48070-C0i200705-201305
BLACK,TRIM2#
sub62102-48071
main62102-48070-E0i200705-201305
SAND BEIGE,TRIM4#
sub62102-48071
main62102-48071-B0i201306-201312
GRAY,TRIM1#
main62102-48071-C0i201306-201312
BLACK,TRIM2#
main62102-48071-E0i201306-201312
SAND BEIGE,TRIM4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-10161i200705-201312
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-48030i200705-200901
main62170-48030i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
62170BBOLT, W/WASHER
main90119-06869i200705-201009
main90119-06869i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
main90159-06001i201010
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-48030i200705-200901
main62180-48030i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
62211GARNISH, FRONT PILLAR, RH
main62210-48110-B0i200705-200901
GRAY,TRIM1#
sub62210-48111
main62210-48110-B0i200705-201305
GRAY,TRIM1#,2#
sub62210-48111
main62210-48110-B0i200705-201305
GRAY,TRIM2#
sub62210-48111
main62210-48110-B0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#,2#
sub62210-48111
main62210-48110-E0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub62210-48111
main62210-48110-E0i200705-201305
SAND BEIGE,TRIM4#
sub62210-48111
main62210-48111-B0i201306-201312
GRAY,TRIM2#
main62210-48111-B0i201306-201312
GRAY,TRIM1#,2#
main62210-48111-E0i201306-201312
SAND BEIGE,TRIM4#
main62210-48120-B0i200705-201007
GRAY,TRIM1#,2#
sub62210-48121
main62210-48120-E0i200705-201007
SAND BEIGE,TRIM4#
sub62210-48121
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-10188i200705-201007
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90950-08005i200705-201007
62212GARNISH, FRONT PILLAR, LH
main62220-48110-B0i200705-201305
GRAY,TRIM2#
sub62220-48111
main62220-48110-B0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#,2#
sub62220-48111
main62220-48110-B0i200705-201305
GRAY,TRIM1#,2#
sub62220-48111
main62220-48110-B0i200705-200901
GRAY,TRIM1#
sub62220-48111
main62220-48110-E0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub62220-48111
main62220-48110-E0i200705-201305
SAND BEIGE,TRIM4#
sub62220-48111
main62220-48111-B0i201306-201312
GRAY,TRIM1#,2#
main62220-48111-B0i201306-201312
GRAY,TRIM2#
main62220-48111-E0i201306-201312
SAND BEIGE,TRIM4#
main62220-48120-B0i200705-201007
GRAY,TRIM1#,2#
sub62220-48121
main62220-48120-E0i200705-201007
SAND BEIGE,TRIM4#
sub62220-48121
62217HCLIP, CENTER PILLER GARNISH
main90467-10161i200705-201007
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-48060-B0i200705-201312
GRAY,TRIM1#
main62311-48060-C0i200705-201312
BLACK,TRIM2#
main62311-48060-E0i200705-201312
SAND BEIGE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-48060-B0i200705-201312
GRAY,TRIM1#
main62312-48060-C0i200705-201312
BLACK,TRIM2#
main62312-48060-E0i200705-201312
SAND BEIGE,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-48040-B0i200705-201312
GRAY,TRIM1#
main62331-48040-C0i200705-201312
BLACK,TRIM2#
main62331-48040-E0i200705-201312
SAND BEIGE,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-48040-B0i200705-201312
GRAY,TRIM1#
main62332-48040-C0i200705-201312
BLACK,TRIM2#
main62332-48040-E0i200705-201312
SAND BEIGE,TRIM4#
62411GARNISH, CENTER PILLAR, RH
main62410-48070-B0i200705-201305
GRAY,TRIM2#
sub62410-48071
main62410-48070-B0i200705-201305
GRAY,TRIM1#,2#
sub62410-48071
main62410-48070-B0i200705-200901
GRAY,TRIM1#
sub62410-48071
main62410-48070-E0i200705-201305
SAND BEIGE,TRIM4#
sub62410-48071
main62410-48071-B0i201306-201312
GRAY,TRIM2#
main62410-48071-B0i201306-201312
GRAY,TRIM1#,2#
main62410-48071-E0i201306-201312
SAND BEIGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
main62420-48070-B0i200705-201305
GRAY,TRIM2#
sub62420-48071
main62420-48070-B0i200705-200901
GRAY,TRIM1#
sub62420-48071
main62420-48070-B0i200705-201305
GRAY,TRIM1#,2#
sub62420-48071
main62420-48070-E0i200705-201305
SAND BEIGE,TRIM4#
sub62420-48071
main62420-48071-B0i201306-201312
GRAY,TRIM1#,2#
main62420-48071-B0i201306-201312
GRAY,TRIM2#
main62420-48071-E0i201306-201312
SAND BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-48030-B0i200705-201312
GRAY,TRIM1#
main62413-48030-C0i200705-201312
BLACK,TRIM2#
main62413-48030-E0i200705-201312
SAND BEIGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-48030-B0i200705-201312
GRAY,TRIM1#
main62414-48030-C0i200705-201312
BLACK,TRIM2#
main62414-48030-E0i200705-201312
SAND BEIGE,TRIM4#
62468ACLIP (FOR CENTER PILLAR REAR GARNISH)
main90467-10161i200705-200712
main90467-10167i200801-201007
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-48100-B0i200705-201305
GRAY,TRIM1#,2#
sub62470-48101
main62470-48100-B0i200705-201007
GRAY,TRIM2#
sub62470-48101
main62470-48100-B0i200705-200901
GRAY,TRIM1#
sub62470-48101
main62470-48100-E0i200705-201305
SAND BEIGE,TRIM4#
sub62470-48101
main62470-48101-B0i201306-201312
GRAY,TRIM1#,2#
sub62470-48102
main62470-48101-B0i201306-201312
GRAY,TRIM2#
sub62470-48102
main62470-48101-E0i201306-201312
SAND BEIGE,TRIM4#
sub62470-48102
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161i200705-201007
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-48080-B0i200705-201305
GRAY,TRIM1#,2#
sub62480-48081
main62480-48080-B0i200705-200901
GRAY,TRIM1#
sub62480-48081
main62480-48080-B0i200705-201007
GRAY,TRIM2#
sub62480-48081
main62480-48080-E0i200705-201305
SAND BEIGE,TRIM4#
sub62480-48081
main62480-48081-B0i201306-201312
GRAY,TRIM2#
main62480-48081-B0i201306-201312
GRAY,TRIM1#,2#
main62480-48081-E0i201306-201312
SAND BEIGE,TRIM4#
main62480-48100-B0i200705-200901
POWRE BACK DOOR-WITH,GRAY,TRIM1#,2#
sub62480-48101
main62480-48100-B0i200705-201305
GRAY,TRIM1#,2#
sub62480-48101
main62480-48100-B0i201007-201305
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM1#,2#
sub62480-48101
main62480-48100-E0i201007-201305
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
sub62480-48101
main62480-48100-E0i200705-201305
SAND BEIGE,TRIM4#
sub62480-48101
main62480-48101-B0i201306-201312
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM2#
sub62480-48102
main62480-48101-B0i201306-201312
GRAY,TRIM2#
sub62480-48102
main62480-48101-E0i201306-201312
SAND BEIGE,TRIM4#
sub62480-48102
main62480-48101-E0i201306-201312
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
sub62480-48102
62597DCLIP
main90467-10188i200705-201007
62638AGARNISH, QUARTER PILLAR, RH
main62638-48030-B0i200705-201007
GRAY,TRIM1#,2#
sub62638-48031
main62638-48030-E0i200705-201007
SAND BEIGE,TRIM4#
sub62638-48031
main62638-48040-B0i200705-201305
GRAY,TRIM1#,2#
sub62638-48041
main62638-48040-B0i200705-200901
GRAY,TRIM1#
sub62638-48041
main62638-48040-B0i200705-201305
GRAY,TRIM2#
sub62638-48041
main62638-48040-B0i200705-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#,2#
sub62638-48041
main62638-48040-B0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#,2#
sub62638-48041
main62638-48040-E0i200705-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub62638-48041
main62638-48040-E0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub62638-48041
main62638-48040-E0i200705-201305
SAND BEIGE,TRIM4#
sub62638-48041
main62638-48041-B0i201306-201312
GRAY,TRIM1#,2#
main62638-48041-B0i201306-201312
GRAY,TRIM2#
main62638-48041-E0i201306-201312
SAND BEIGE,TRIM4#
62639AGARNISH, QUARTER PILLAR, LH
main62639-48030-B0i200705-201007
GRAY,TRIM1#,2#
sub62639-48031
main62639-48030-E0i200705-201007
SAND BEIGE,TRIM4#
sub62639-48031
main62639-48040-B0i200705-201305
GRAY,TRIM1#,2#
sub62639-48041
main62639-48040-B0i200705-200901
GRAY,TRIM1#
sub62639-48041
main62639-48040-B0i200705-201305
GRAY,TRIM2#
sub62639-48041
main62639-48040-B0i200705-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#,2#
sub62639-48041
main62639-48040-B0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),GRAY,TRIM1#,2#
sub62639-48041
main62639-48040-E0i200705-201007
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub62639-48041
main62639-48040-E0i200705-201007
WITHOUT(REAR NO.2 SEAT)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD),SAND BEIGE,TRIM4#
sub62639-48041
main62639-48040-E0i200705-201305
SAND BEIGE,TRIM4#
sub62639-48041
main62639-48041-B0i201306-201312
GRAY,TRIM2#
sub62639-48042
main62639-48041-B0i201306-201312
GRAY,TRIM1#,2#
sub62639-48042
main62639-48041-E0i201306-201312
SAND BEIGE,TRIM4#
sub62639-48042
67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH
main67865-48010i200705-201007
67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH
main67866-48010i200705-201007
67868FRETAINER, DOOR WEATHERSTRIP, LH
main67867-12150i200705-201007
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-48070-B0i200705-201312
GRAY,TRIM1#
main67911-48070-C0i200705-201312
BLACK,TRIM2#
main67911-48070-E0i200705-201312
SAND BEIGE,TRIM4#
main67911-48080-B0i201007-201312
NEW ZEALAND SPEC&CVX PACKAGE,GRAY,TRIM1#
main67911-48080-B0i200705-201312
GRAY,TRIM1#
main67911-48080-B0i201007-201312
NEW ZEALAND SPEC,GRAY,TRIM1#
main67911-48080-C0i201007-201312
NEW ZEALAND SPEC&CVX PACKAGE,BLACK,TRIM2#
main67911-48080-C0i200705-201312
BLACK,TRIM2#
main67911-48080-C0i201007-201312
NEW ZEALAND SPEC,BLACK,TRIM2#
main67911-48080-E0i200705-201312
SAND BEIGE,TRIM4#
main67911-48080-E0i201007-201312
NEW ZEALAND SPEC,SAND BEIGE,TRIM4#
main67911-48080-E0i201007-201312
NEW ZEALAND SPEC&CVX PACKAGE,SAND BEIGE,TRIM4#
main67911-48090-B0i201007-201312
CVX PACKAGE,GRAY,TRIM1#
main67911-48090-B0i201007-201312
GRAY,TRIM1#
main67911-48090-C0i200705-201312
BLACK,TRIM2#
main67911-48090-C0i200705-201312
CVX PACKAGE,BLACK,TRIM2#
main67911-48090-E0i200705-201312
SAND BEIGE,TRIM4#
main67911-48090-E0i200705-201312
CVX PACKAGE,SAND BEIGE,TRIM4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-48070-B0i200705-201312
GRAY,TRIM1#
main67912-48070-C0i200705-201312
BLACK,TRIM2#
main67912-48070-E0i200705-201312
SAND BEIGE,TRIM4#
main67912-48080-B0i200705-201312
GRAY,TRIM1#
main67912-48080-B0i201007-201312
NEW ZEALAND SPEC,GRAY,TRIM1#
main67912-48080-B0i201007-201312
NEW ZEALAND SPEC&CVX PACKAGE,GRAY,TRIM1#
main67912-48080-C0i200705-201312
BLACK,TRIM2#
main67912-48080-C0i201007-201312
NEW ZEALAND SPEC,BLACK,TRIM2#
main67912-48080-C0i201007-201312
NEW ZEALAND SPEC&CVX PACKAGE,BLACK,TRIM2#
main67912-48080-E0i201007-201312
NEW ZEALAND SPEC,SAND BEIGE,TRIM4#
main67912-48080-E0i201007-201312
NEW ZEALAND SPEC&CVX PACKAGE,SAND BEIGE,TRIM4#
main67912-48080-E0i200705-201312
SAND BEIGE,TRIM4#
main67912-48090-B0i201007-201312
CVX PACKAGE,GRAY,TRIM1#
main67912-48090-B0i201007-201312
GRAY,TRIM1#
main67912-48090-C0i200705-201312
BLACK,TRIM2#
main67912-48090-C0i200705-201312
CVX PACKAGE,BLACK,TRIM2#
main67912-48090-E0i200705-201312
SAND BEIGE,TRIM4#
main67912-48090-E0i200705-201312
CVX PACKAGE,SAND BEIGE,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-48040-B0i200705-201305
GRAY,TRIM1#
sub67913-48041
main67913-48040-C0i200705-201305
BLACK,TRIM2#
sub67913-48041
main67913-48040-E0i200705-201305
SAND BEIGE,TRIM4#
sub67913-48041
main67913-48041-B0i201306-201312
GRAY,TRIM1#
main67913-48041-C0i201306-201312
BLACK,TRIM2#
main67913-48041-E0i201306-201312
SAND BEIGE,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-48040-B0i200705-201305
GRAY,TRIM1#
sub67914-48041
main67914-48040-C0i200705-201305
BLACK,TRIM2#
sub67914-48041
main67914-48040-E0i200705-201305
SAND BEIGE,TRIM4#
sub67914-48041
main67914-48041-B0i201306-201312
GRAY,TRIM1#
main67914-48041-C0i201306-201312
BLACK,TRIM2#
main67914-48041-E0i201306-201312
SAND BEIGE,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67917-48060-B0i200705-201312
GRAY,TRIM1#
main67917-48060-C0i200705-201312
BLACK,TRIM2#
main67917-48060-E0i200705-201312
SAND BEIGE,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67918-48060-B0i200705-201312
GRAY,TRIM1#
main67918-48060-C0i200705-201312
BLACK,TRIM2#
main67918-48060-E0i200705-201312
SAND BEIGE,TRIM4#
67918CCLIP(FOR REAR SCUFF PLATE)
main67921-48050i200705-201007
YELLOW
main90467-10161i200705-201007
NATURAL
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i200705-201007
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67923-30030i200705-201007
67927ORNAMENT, FRONT DOOR SCUFF, RH
main67927-48050i200705-200901
main67927-48050i201007
NEW ZEALAND SPEC
main67927-48050i201007
NEW ZEALAND SPEC&CVX PACKAGE
main67927-48060i200705-201007
CVX PACKAGE
67928ORNAMENT, FRONT DOOR SCUFF, LH
main67928-48050i201007
NEW ZEALAND SPEC&CVX PACKAGE
main67928-48050i200705-200901
main67928-48050i201007
NEW ZEALAND SPEC
main67928-48060i200705-201007
CVX PACKAGE
7104
9015960411
main90159-60411
9016350009
main90163-50009

44 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
