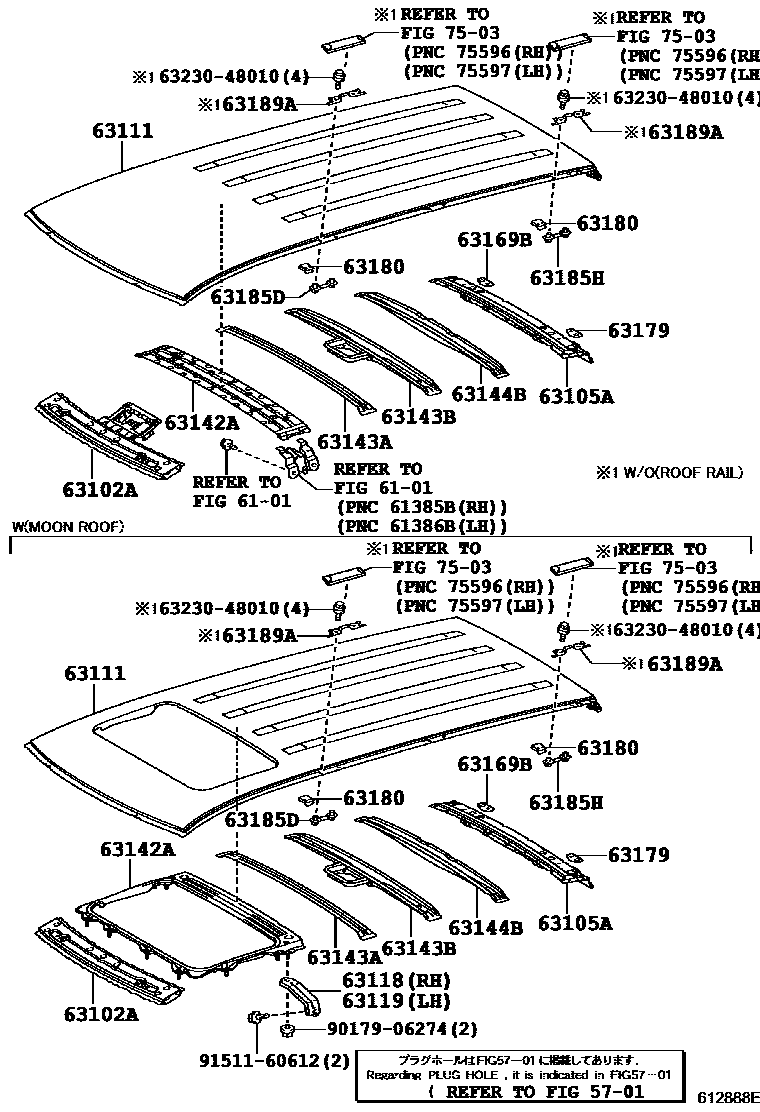

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

5701

6101

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48906iGSU4#..SPO,STD200705-200811

sub63102-48910

main63102-48907iGSU4#..GD,LIMD200705-200811

MOON ROOF-WITH

sub63102-48911

main63102-48910iGSU4#..(SPO,STD)..CHI200811-201204

main63102-48911iGSU4#..GD200811-201204

MOON ROOF-WITH

main63102-48914iGSU4#..LIMD,STD201204

main63102-48915iGSU4#..GD201204

MOON ROOF-WITH

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48050iGSU4#200705-201007

63111PANEL, ROOF

main63111-48110iGSU4#..(SPO,STD)..CHI200705-201007

main63111-48120iGSU4#..GD200705-201007

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-48090iGSU45..LIMD200705-201007

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-48090iGSU45..SPO200705-201007

MOON ROOF-WITH

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-48020iGSU4#..SPO,STD200705-201312

main63142-48040iGSU45..SPO,STD;GSU40..STD..ARL200705-201312

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-48060iGSU4#..CHI200705-201007

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63104-48020iGSU4#200705-201007

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-48050iGSU4#..ARL200705-201007

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iGSU4#..ARL200705-201007

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iGSU4#..ARL200705-201007

63180CLIP(BRACKET, ROOF RACK)

main63479-48010iGSU4#..ARL200705-201007

REAR

main63479-48020iGSU4#..ARL200705-201007

FRONT

63185DBRACKET, ROOF RACK, FRONT

main63187-35020iGSU4#..CHI200705-201007

63185HBRACKET, ROOF RACK

main63187-48020iGSU4#..CHI200705-201007

63189ABRACKET, ROOF RACK, CENTER

main63185-48010iGSU40..CHI200705-201007

7503

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

9017906274

main90179-06274

9151160612

main91511-60612

21 parts on this diagram · 3 diagrams in section
