SIDE MEMBER
5202
53821BBRACKET, FRONT FENDER, REAR RH
53821FBRACKET, FRONT FENDER, REAR NO.2 RH
5701
58578FPAD, REAR WHEEL HOUSE, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033BPILLAR SUB-ASSY, NO.2 INNER, RH
61043PILLAR SUB-ASSY, NO.2 INNER, LH
61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61311BPILLAR, CENTER BODY, OUTER RH
61385BEXTENSION, CENTER BODY PILLAR, INNER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61601EPANEL SUB-ASSY, QUARTER, OUTER RH
61613EPANEL, QUARTER, INNER RH
61619DREINFORCEMENT, QUARTER PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61667CSEAL, QAURTER PANEL, NO.1
61688BLINING, QUARTER PANEL REINFORCEMENT, RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61715CBRACKET, ROOF SIDE, RH
61719HBRACKET SUB-ASSY, ROOF SIDE RAIL, RH
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH
61751ARETAINER, QUARTER TRIM, RH
61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH
61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61812BPLATE, NOISE CONTROL, RH
61826APLATE, NOISE CONTROL, NO.3
65637LINER, REAR WHEEL HOUSE, RH
66383BRACKET, ROPE HOOK BAR, NO.1 RH
8149612050GUIDE, REAR COMBINATION LAMP
main81496-12050
9010506260
main90105-06260
9015906001
main90159-06001
9015940085
main90159-40085
9015960008
main90159-60008
9018906013
main90189-06013
9018906029
main90189-06029
9018906228
main90189-06228
9046706121
main90467-06121
9048007006
main90480-07006

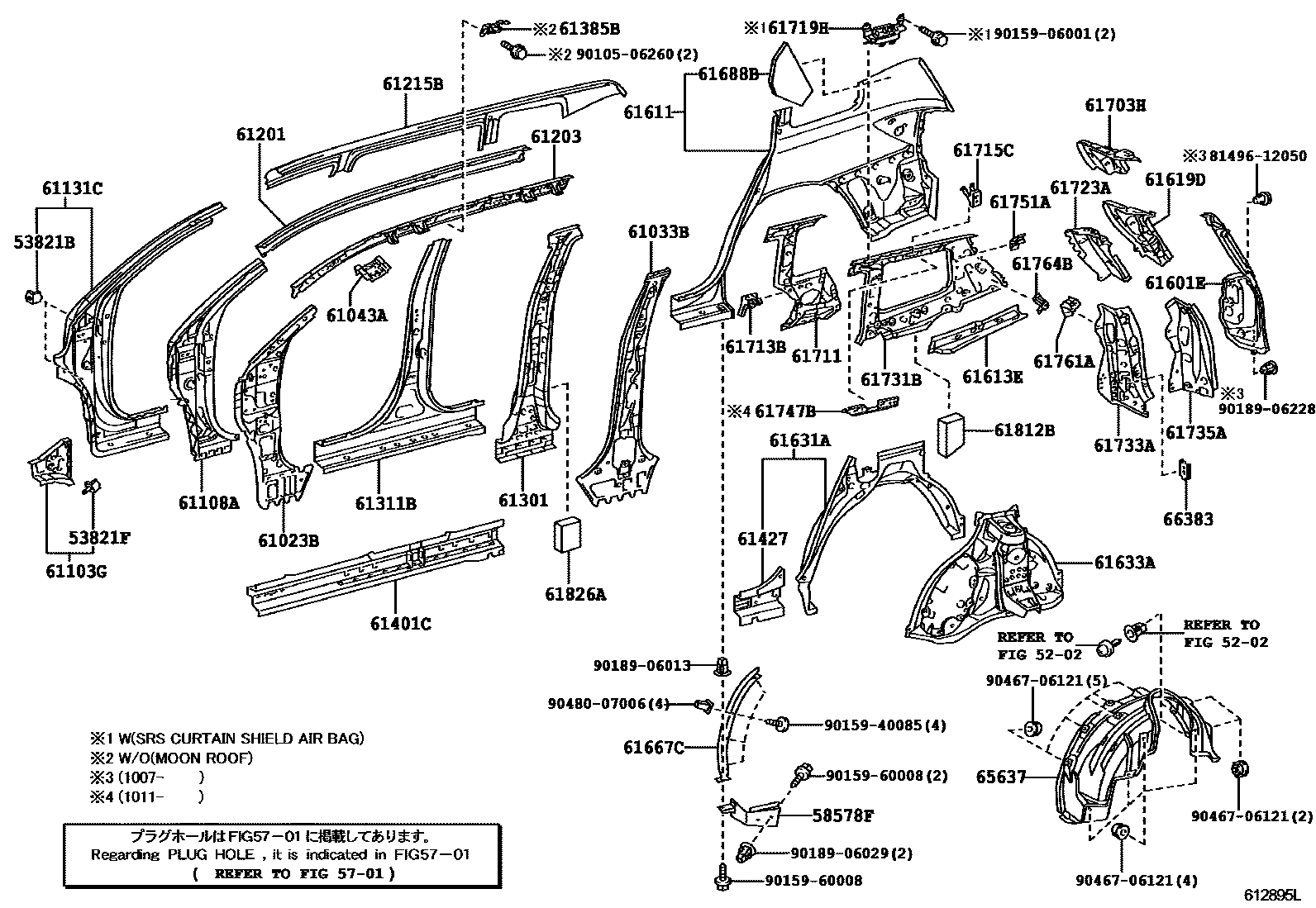

55 parts on this diagram · 2 diagrams in section
