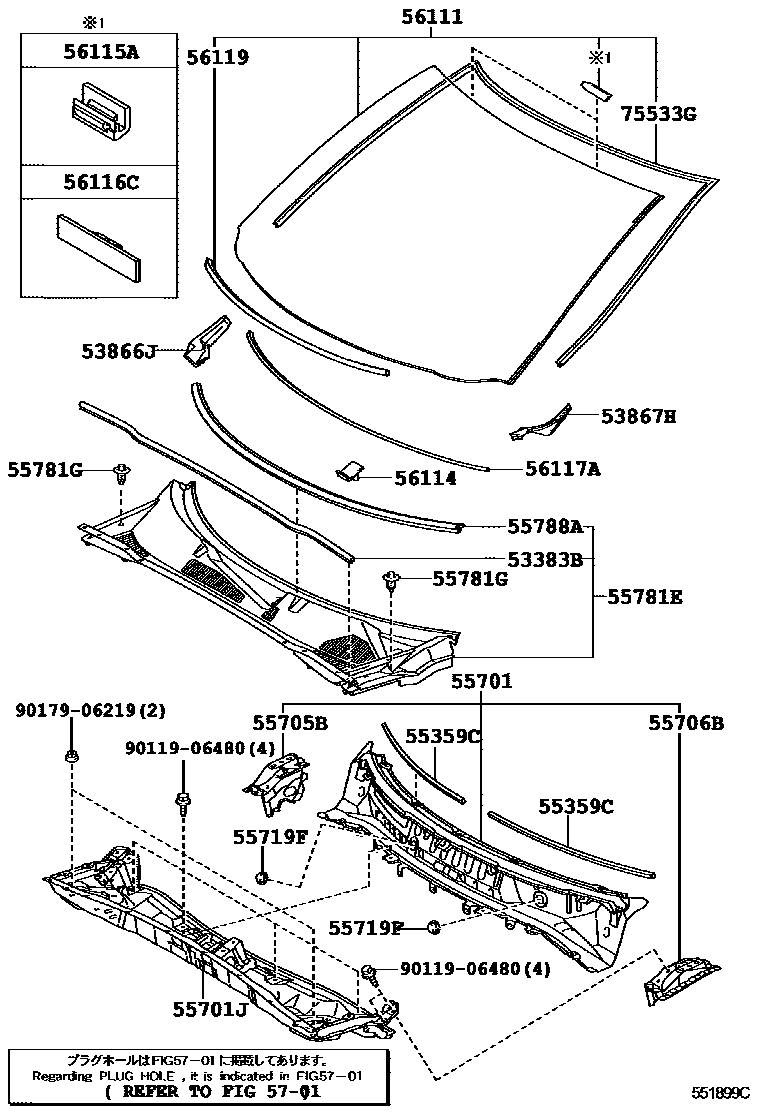

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55359CCOSHION, INSTRUMENT PANEL, NO.5
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55719FPACKING, FRONT LOWER PANEL
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*EHL,T=4.76,GREEN
*LAM,T=4.76,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56119SEAL, WINDSHIELD GLASS
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906480
main90119-06480
9017906219
main90179-06219
22 parts on this diagram · 2 diagrams in section
