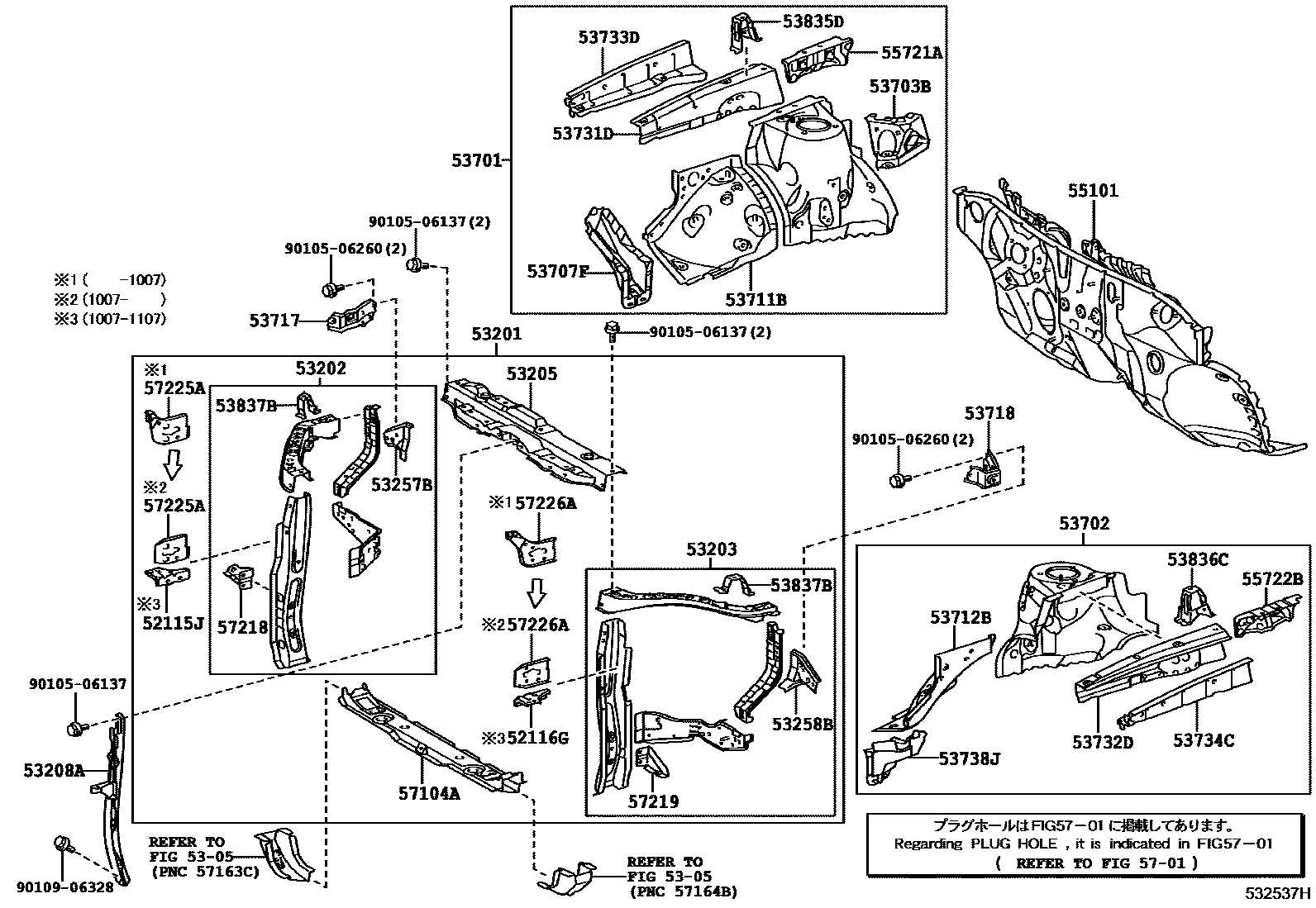

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1INSULATOR & SEAL

52115JSUPPORT, FRONT BUMPER SIDE, RH

main52115-48070iGSU4#..ARL¥1,230200705-201107

52116GSUPPORT, FRONT BUMPER SIDE, LH

main52116-48030iGSU4#..CHI200705-201107

5305

53201SUPPORT SUB-ASSY, RADIATOR

main53201-48906iGSU4#200705-201007

sub53201-48915¥51,600

main53201-48908iGSU4#201007-201104

sub53201-48912

main53201-48912iGSU4#201104-201108

sub53201-48916

main53201-48916iGSU4#201108-201303

sub53201-48918

main53201-48918iGSU4#201303-201312

sub53201-48923

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-48060iGSU4#..CHI¥14,400200705-201007

main53202-48080iGSU4#201007

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-48070iGSU4#..CHI200705-201007

main53203-48100iGSU4#201007

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-48060iGSU4#..CHI¥8,100200705-201103

sub53216-48061

main53216-48061iGSU4#201104

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-48050iGSU4#..CHI¥3,950200705-201007

main53208-48070iGSU4#201007-201302

sub53208-48071

main53208-48071iGSU4#201303

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-48050iGSU4#200705-201007

main53257-48070iGSU4#¥910201007

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-48050iGSU4#200705-201007

main53258-48070iGSU4#¥910201007

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-48070iGSU4#..CHI¥35,000200705-201007

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-48050iGSU4#..CHI¥31,800200705-201104

main53702-48051iGSU4#201104

sub53702-48050¥31,800

53703BRETAINER SUB-ASSY, FENDER APRON, RH

main53703-48040iGSU4#..CHI¥4,730200705-201007

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-48020iGSU4#..CHI¥2,490200705-201007

53711BAPRON, FRONT FENDER, FRONT RH

main53711-48040iGSU4#..CHI¥6,400200705-201007

53712BAPRON, FRONT FENDER, FRONT LH

main53712-48050iGSU4#..CHI¥6,400200705-201007

53717PLATE, FENDER APRON, RH

main53717-48040iGSU4#..CHI200705-201007

main53717-48060iGSU4#201007

53718PLATE, FENDER APRON, LH

main53718-48050iGSU4#..CHI¥1,450200705-201007

main53718-48060iGSU4#201007

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-48040iGSU4#..CHI¥4,120200705-201007

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-48050iGSU4#..CHI¥4,120200705-201007

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-48030iGSU4#..CHI¥3,370200705-201007

sub53733-48031¥3,370

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-48030iGSU4#..CHI¥3,370200705-201007

sub53734-48031¥3,370

53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH

main53738-48030iGSU4#..ARL¥2,760200705-201007

sub53738-48031¥2,760

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-48030iGSU4#..CHI200705-201007

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-48020iGSU4#..CHI200705-201007

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-48010iGSU4#200705-201007

RH

main53838-48010iGSU4#200705-201007

LH

55101PANEL SUB-ASSY, DASH

main55101-48150iGSU45..RUS200705-200901

sub55101-48151¥52,900

main55101-48160iGSU4#..ARL¥52,900200705-201007

sub55101-48161¥52,900

sub90333-25001¥140

55721ABRACE, COWL TOP TO COWL, INNER NO.1

main55721-48020iGSU4#..CHI¥2,110200705-201007

55722BBRACE, COWL TOP TO COWL, INNER NO.2

main55722-48040iGSU4#..CHI¥2,110200705-201007

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-48050iGSU4#..CHI¥16,200200705-201007

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-48010iGSU4#200705-201007

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-48010iGSU4#200705-201007

57225ABRACE, FRONT MOUNTING BRACKET, RH

main57225-48030iGSU4#..CHI¥1,330200705-201007

main57225-48050iGSU4#201007-201107

main57225-48060iGSU4#201107

57226ABRACE, FRONT MOUNTING BRACKET, LH

main57226-48020iGSU4#..CHI200705-201007

main57226-48040iGSU4#201007-201107

main57226-48050iGSU4#201107

9010506137

main90105-06137¥70

9010506260

main90105-06260¥60

9010906328

main90109-06328¥60

38 parts on this diagram · 2 diagrams in section
