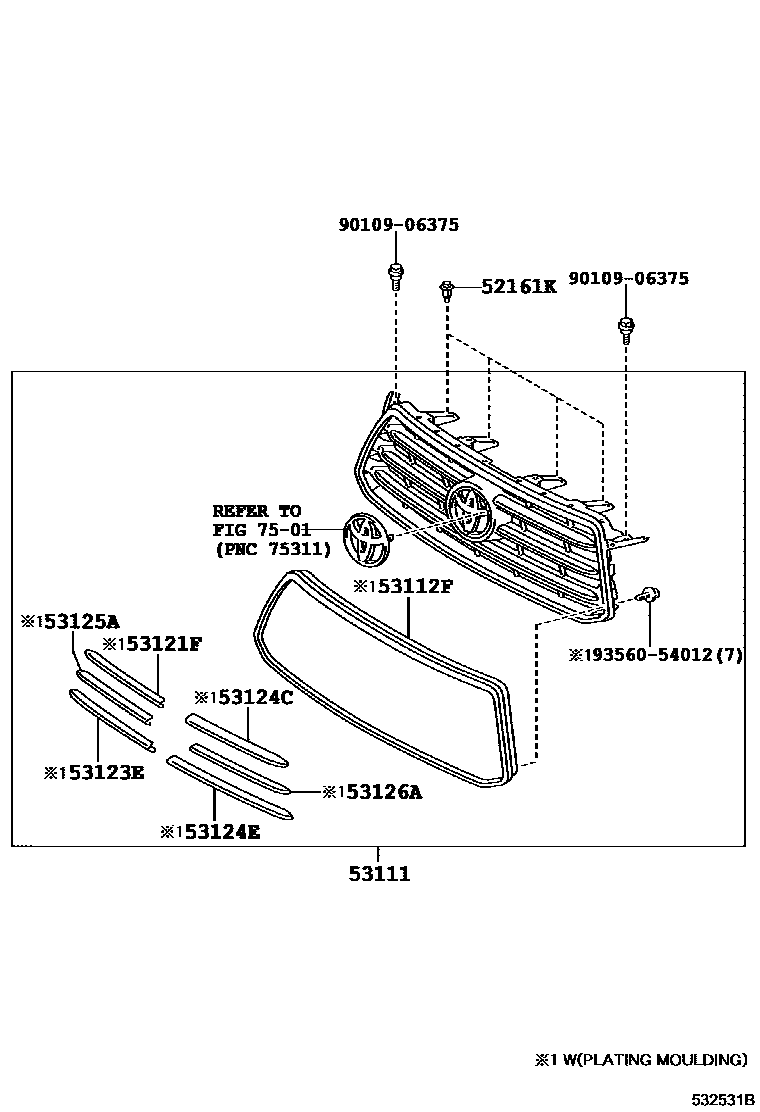

RADIATOR GRILLE

0001 1 0002 1

52161KPIECE, FRONT BUMPER

main52161-16010iGSU4#200705-201007

sub52161-0K040

53111GRILLE, RADIATOR

main53101-48160iGSU4#..STD200705-201007

NO PAINT REQ.

main53101-48170iGSU45..SPO200705-200901

PLATED

sub53101-48180

main53101-48170iGSU4#..STD..ARL200705-201007

PLATED,CVX PACKAGE

sub53101-48180

main53101-48180iGSU4#..GD,LIMD200705-201007

PLATED

main53101-48350iGSU4#..ARL201007

NO PAINT REQ.

sub53101-48937

sub90975-02188

main53101-48360iGSU45..RUS201007

NO PAINT REQ.

sub53101-48938

sub90975-02191

53112FGRILLE, RADIATOR, INSIDE

main53112-48070iGSU45..SPO200705-200901

sub53112-48080

main53112-48070iGSU4#..STD..ARL200705-201007

CVX PACKAGE

sub53112-48080

main53112-48080iGSU4#..GD,LIMD200705-201007

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-48020iGSU45..SPO200705-200901

main53121-48020iGSU4#..STD..ARL200705-201007

CVX PACKAGE

main53121-48030iGSU4#..GD,LIMD200705-201007

53123EMOULDING, RADIATOR GRILLE, LOWER RH

main53123-48010iGSU4#..STD..ARL200705-201007

CVX PACKAGE

main53123-48010iGSU45..SPO200705-200901

main53123-48020iGSU4#..GD,LIMD200705-201007

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-48020iGSU45..SPO200705-200901

main53124-48020iGSU4#..STD..ARL200705-201007

CVX PACKAGE

main53124-48030iGSU4#..GD,LIMD200705-201007

53124EMOULDING, RADIATOR GRILLE, LOWER LH

main53122-48020iGSU45..SPO200705-200901

main53122-48020iGSU4#..STD..ARL200705-201007

CVX PACKAGE

main53122-48030iGSU4#..GD,LIMD200705-201007

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-48020iGSU45..SPO200705-200901

main53125-48020iGSU4#..STD..ARL200705-201007

CVX PACKAGE

main53125-48030iGSU4#..GD,LIMD200705-201007

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-48020iGSU45..SPO200705-200901

main53126-48020iGSU4#..STD..ARL200705-201007

CVX PACKAGE

main53126-48030iGSU4#..GD,LIMD200705-201007

7501

9010906375

main90109-06375

9356054012

main93560-54012

12 parts on this diagram · 2 diagrams in section
