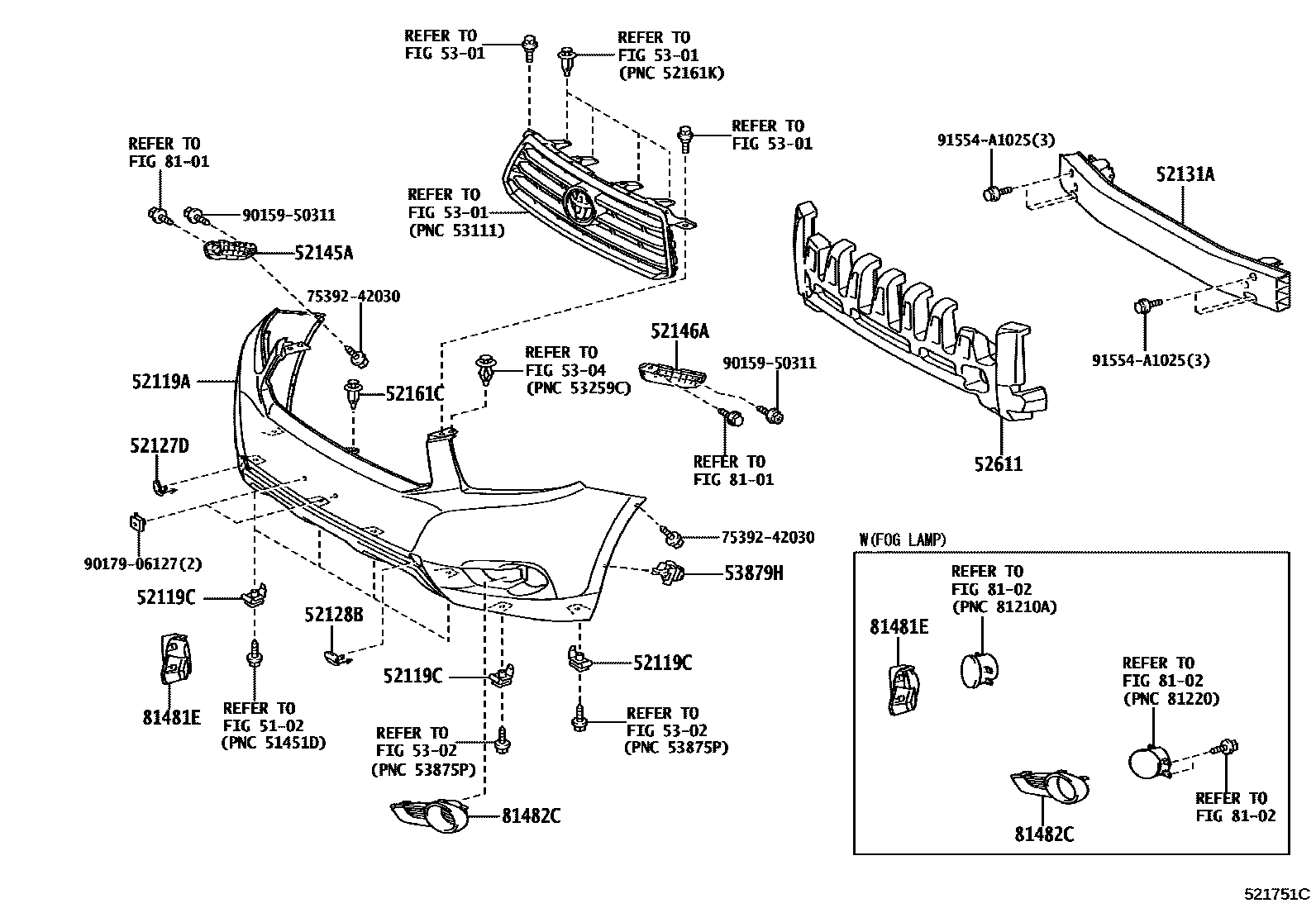

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52119ACOVER, FRONT BUMPER

main52119-48937iGSU4#..ARL200705-201007

PAINT REQ.

main52119-48962iGSU4#201007

PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-05114iGSU4#200705-201007

main90467-09230iGSU4#201007-201312

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-48906iGSU4#..CHI200705-201007

main52127-48911iGSU4#201007

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-48904iGSU4#..CHI200705-201007

main52128-48907iGSU4#201007

52131AREINFORCEMENT, FRONT BUMPER

main52131-48100iGSU4#200705-201007

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-48020iGSU4#201007

main52145-48030iGSU4#..CHI200705-201007

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-48020iGSU4#..ARL200705-201007

main52146-48030iGSU4#201007

52161CPIECE, FRONT BUMPER

main52161-16010iGSU4#..CHI200705-201007

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48090iGSU4#..ARL200705-201007

main52611-48110iGSU4#201007

5301

5302

5304

53879HRETAINER, FRONT FENDER LINER

main53879-28010iGSU4#200705-201312

8101

8102

81481ECOVER, FOG LAMP, RH

main81481-48030iGSU4#..STD..ARL200705-201007

main81481-48040-A0iGSU4#..STD..ARL200705-201007

FOG LAMP-WITH,WHITE PEARL CS.,070

main81481-48040-A0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

WHITE PEARL CS.,070

main81481-48040-B0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

SILVER ME.,1F7

main81481-48040-B0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,SILVER ME.,1F7

main81481-48040-B1iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,GRAY ME.,1G3

main81481-48040-B1iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

GRAY ME.,1G3

main81481-48040-C0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

BLACK,202

main81481-48040-C0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,BLACK,202

main81481-48040-D0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

DK. RED M.M.,3Q3

main81481-48040-D0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,DK. RED M.M.,3Q3

main81481-48040-E0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

BEIGE ME.,4T8

main81481-48040-E0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,BEIGE ME.,4T8

main81481-48040-G0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

OLIVE M.M.,6T7

main81481-48040-G0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,OLIVE M.M.,6T7

main81481-48040-J0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

LT.BLUE M.M.,8S7

main81481-48040-J0iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,LT.BLUE M.M.,8S7

main81481-48040-J1iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

BLUE ME.,8T7

main81481-48040-J1iGSU40..CHI;GSU4#..GD,LIMD,SPO200705-201007

FOG LAMP-WITH,BLUE ME.,8T7

main81481-48040-K0iGSU4#..GD200901-201007

AMETHIST GRAY M.M.,9AG

main81481-48040-K0iGSU4#..GD200901-201007

FOG LAMP-WITH,AMETHIST GRAY M.M.,9AG

main81481-48110iGSU4#..STD..ARL201007

ALTITUDE

main81481-48110iGSU4#..GD,LIMD;GSU45..STD..RUS201007

CVX PACKAGE

main81481-48120iGSU4#..STD..ARL201007

81482CCOVER, FOG LAMP, LH

main81482-48040-A0iGSU4#..CHI200705-200901

WHITE PEARL CS.,070

main81482-48040-B0iGSU4#..CHI200705-200901

SILVER ME.,1F7

main81482-48040-B1iGSU4#..CHI200705-200901

GRAY ME.,1G3

main81482-48040-C0iGSU4#..CHI200705-200901

BLACK,202

main81482-48040-D0iGSU4#..CHI200705-200901

DK. RED M.M.,3Q3

main81482-48040-E0iGSU4#..CHI200705-200901

BEIGE ME.,4T8

main81482-48040-G0iGSU4#..CHI200705-200901

OLIVE M.M.,6T7

main81482-48040-J0iGSU4#..CHI200705-200901

LT.BLUE M.M.,8S7

main81482-48040-J1iGSU4#..CHI200705-200901

BLUE ME.,8T7

main81482-48050-A0iGSU4#..GD200705-201007

WHITE PEARL CS.,070

main81482-48050-A0iGSU4#..GD200705-201007

FOG LAMP-WITH,WHITE PEARL CS.,070

main81482-48050-B0iGSU4#..GD200705-201007

FOG LAMP-WITH,SILVER ME.,1F7

main81482-48050-B0iGSU4#..GD200705-201007

SILVER ME.,1F7

main81482-48050-B1iGSU4#..GD200705-201007

GRAY ME.,1G3

main81482-48050-B1iGSU4#..GD200705-201007

FOG LAMP-WITH,GRAY ME.,1G3

main81482-48050-C0iGSU4#..GD200705-201007

BLACK,202

main81482-48050-C0iGSU4#..GD200705-201007

FOG LAMP-WITH,BLACK,202

main81482-48050-D0iGSU4#..GD200705-201007

DK. RED M.M.,3Q3

main81482-48050-D0iGSU4#..GD200705-201007

FOG LAMP-WITH,DK. RED M.M.,3Q3

main81482-48050-E0iGSU4#..GD200705-201007

FOG LAMP-WITH,BEIGE ME.,4T8

main81482-48050-E0iGSU4#..GD200705-201007

BEIGE ME.,4T8

main81482-48050-G0iGSU4#..GD200705-201007

OLIVE M.M.,6T7

main81482-48050-G0iGSU4#..GD200705-201007

FOG LAMP-WITH,OLIVE M.M.,6T7

main81482-48050-J0iGSU4#..GD200705-201007

LT.BLUE M.M.,8S7

main81482-48050-J0iGSU4#..GD200705-201007

FOG LAMP-WITH,LT.BLUE M.M.,8S7

main81482-48050-J1iGSU4#..GD200705-201007

BLUE ME.,8T7

main81482-48050-J1iGSU4#..GD200705-201007

FOG LAMP-WITH,BLUE ME.,8T7

main81482-48050-K0iGSU4#..STD200901-201007

FOG LAMP-WITH,AMETHIST GRAY M.M.,9AG

main81482-48050-K0iGSU4#..GD200901-201007

AMETHIST GRAY M.M.,9AG

main81482-48060iGSU4#..STD..ARL200705-201007

main81482-48110iGSU4#..GD,LIMD;GSU45..STD..RUS201007

CVX PACKAGE

main81482-48110iGSU4#..GD,LIMD;GSU45..STD..RUS201007

ALTITUDE

main81482-48120iGSU4#..STD..ARL201007

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9015950311

main90159-50311

9017906127

main90179-06127

91554A1025

main91554-A1025

22 parts on this diagram · 2 diagrams in section
