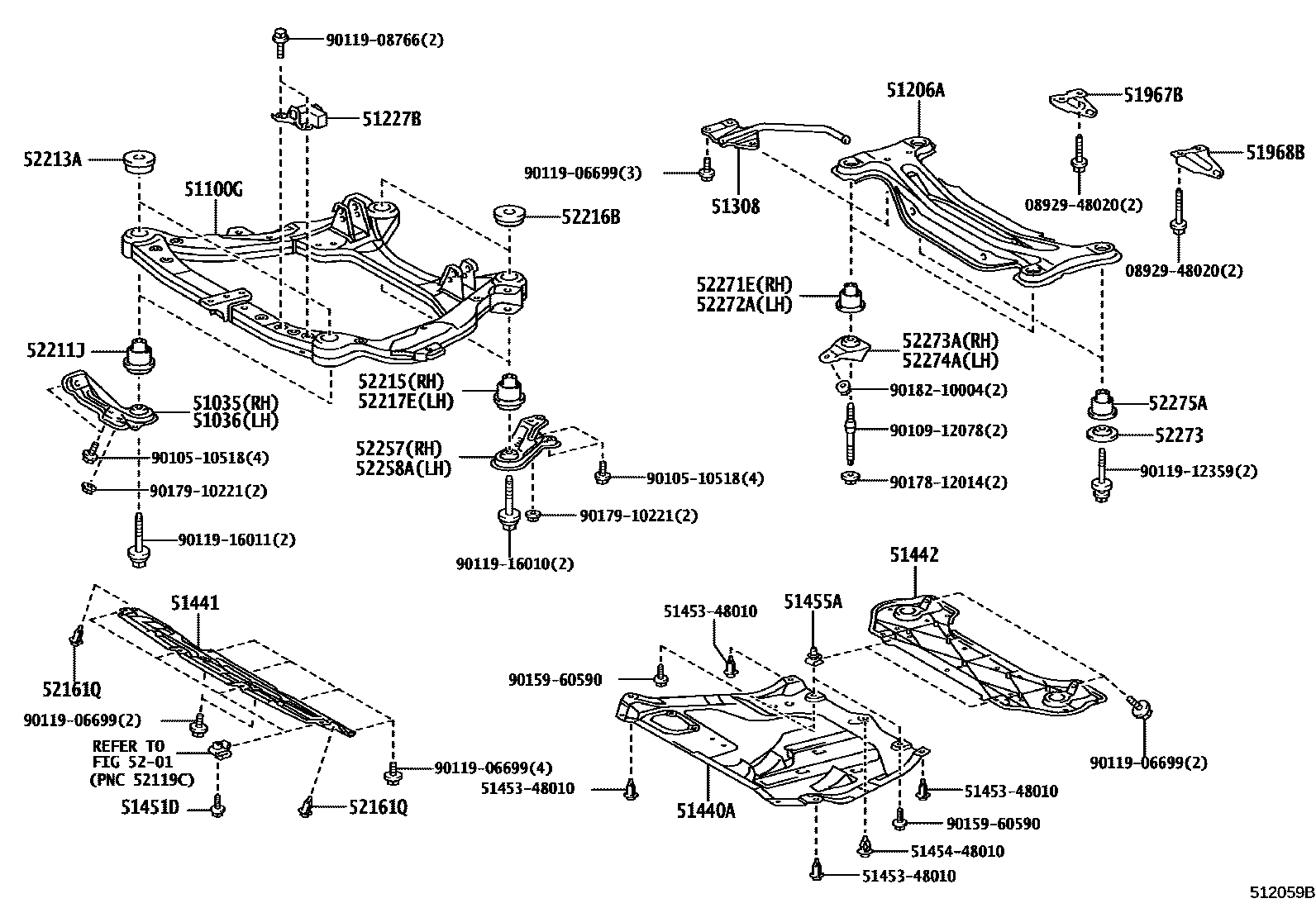

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iGSU4#..CHI200705-201107

sub51035-48021

main51035-48021iGSU4#201108

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iGSU4#..CHI200705-201107

sub51036-48021

main51036-48021iGSU4#201108

51100GFRAME ASSY, FRONT

main51100-48070iGSU4#200705-200806

sub51100-48071

main51100-48071iGSU4#..CHI200807-201303

sub51100-48072

main51100-48072iGSU4#201304-201308

sub51100-48073

main51100-48073iGSU4#201309-201312

sub51100-48074

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48040iGSU45..CHI200705-201007

main51206-48070iGSU40..CHI200705-201004

sub51206-48071

main51206-48071iGSU40201005-201007

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48031iGSU4#..ARL200705-201007

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-48022iGSU40..CHI200705-201007

51440ACOVER ASSY, ENGINE UNDER

main51440-48070iGSU4#200705-201206

sub51440-48071

main51440-48071iGSU4#201207

main51440-48080iGSU4#..CHI200705-200901

sub51440-48081

51441COVER, ENGINE UNDER, NO.1

main51441-48060iGSU4#..CHI200705-201007

main51441-48130iGSU4#201007

51442COVER, ENGINE UNDER, NO.2

main51442-48020iGSU4#..CHI200705-200905

sub51442-48021

main51442-48021iGSU4#200906-201007

51451DSCREW, NO.1

main90159-60444iGSU4#200705-201007

main90159-60525iGSU4#201007-201312

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010iGSU4#..CHI200705-201007

51967BHOOK, TRANSPORT, REAR RH

main51967-48010iGSU4#..CHI200705-201007

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iGSU4#..CHI200705-201007

5201

52161QPIECE, FRONT BUMPER

main52161-16010iGSU4#200705-201312

sub52161-0K040

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iGSU4#..CHI200705-201007

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iGSU4#..CHI200705-201007

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iGSU4#..CHI200705-201007

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iGSU4#..CHI200705-201007

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iGSU4#..CHI200705-201007

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iGSU4#..CHI200705-201007

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48040iGSU4#..CHI200705-201007

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-33030iGSU40..CHI200705-201007

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iGSU45..CHI200705-201007

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-33040iGSU40..CHI200705-201007

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iGSU40..CHI200705-201007

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-48010iGSU40..CHI200705-201007

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-48010iGSU40..CHI200705-201007

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iGSU40..CHI200705-201007

main52275-48010iGSU45..CHI200705-201007

0892948020

main08929-48020

5145348010SILENCER, ENGINE UNDER COVER, FRONT

main51453-48010

5145448010CLIP

main51454-48010

9010510518

main90105-10518

9010912078

main90109-12078

9011906699

main90119-06699

9011908766

main90119-08766

9011912359

main90119-12359

9011916010

main90119-16010

9011916011

main90119-16011

9015960590

main90159-60590

9017812014

main90178-12014

9017910221

main90179-10221

9018210004

main90182-10004

43 parts on this diagram · 2 diagrams in section
