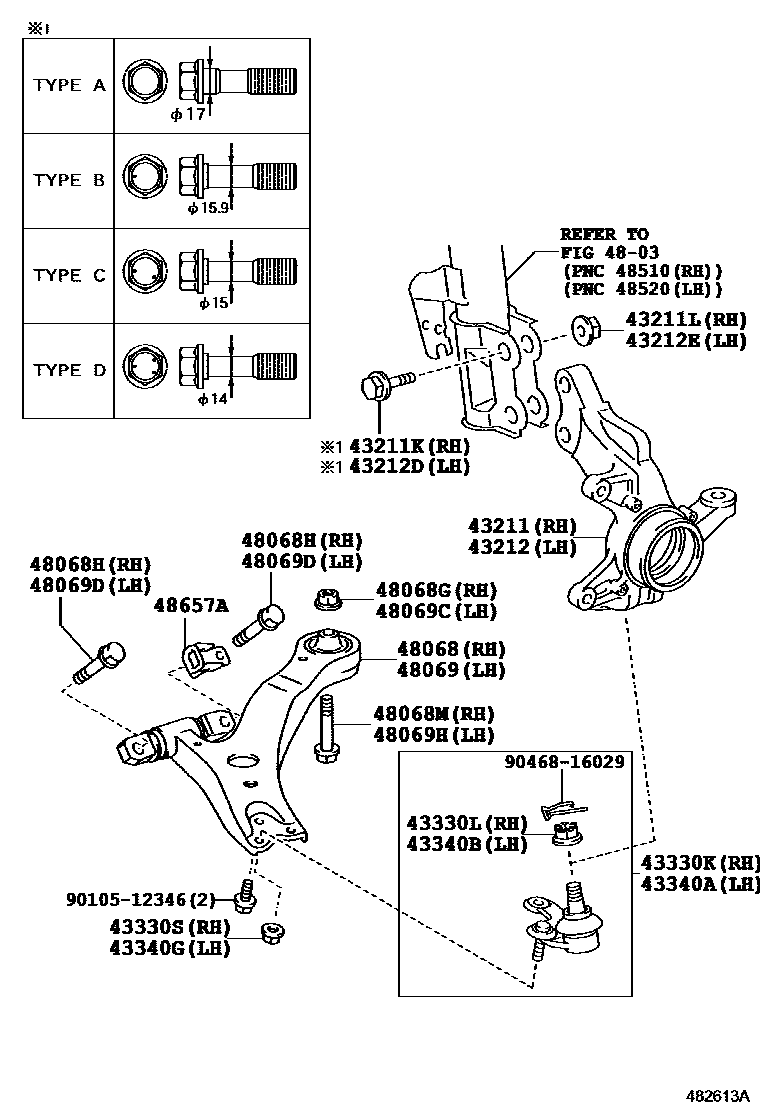

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-48010i200705-201312

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012i200705-201312

OD=17,TYPE A:REFER ILLUST.

main90105-17013i200705-201312

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i200705-201312

OD=15,TYPE C:REFER ILLUST.

main90105-17015i200705-201312

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002i200705-201312

43212KNUCKLE, STEERING, LH

main43212-48010i200705-201312

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012i200705-201312

OD=17,TYPE A:REFER ILLUST.

main90105-17013i200705-201312

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i200705-201312

OD=15,TYPE C:REFER ILLUST.

main90105-17015i200705-201312

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002i200705-201312

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49125i200705-200812

sub43330-49165

main43330-49165i200812-201312

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011i200705-201007

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019i200705-201007

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-49015i200705-200812

sub43340-49035

main43340-49035i200812-201007

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011i200705-201007

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019i200705-201007

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48040i200705-200908

sub48068-48041

main48068-48041i200909-201007

sub48068-48070

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068i200705-201007

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16082i200705-201007

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126i200705-200902

main90119-14140i200903-201107

sub90119-14146

main90119-14146i201108

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48040i200705-200908

sub48069-48041

main48069-48041i200909-201007

sub48069-48070

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068i200705-201007

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16082i200705-201007

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126i200705-200902

main90119-14140i200903-201107

sub90119-14146

main90119-14146i201108

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010i200705-201007

9010512346

main90105-12346

9046816029

main90468-16029

24 parts on this diagram · 1 diagram in section
