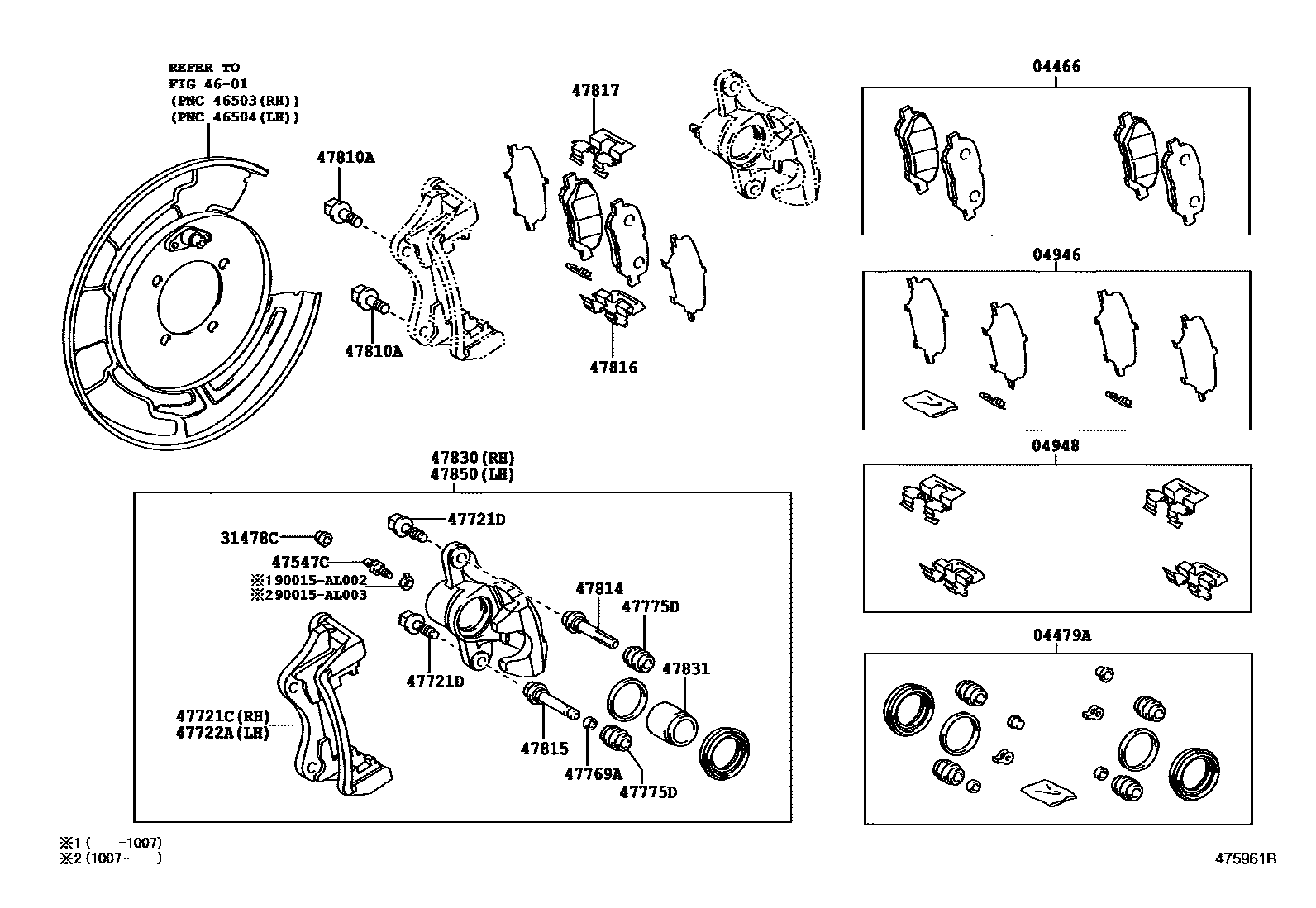

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48120iGSU4#¥7,000200705-201312

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48120iGSU4#..CHI¥2,420200705-201007

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48090iGSU4#..CHI¥1,550200705-201007

04948FITTING KIT, DISC BRAKE, REAR

main04948-48040iGSU4#..CHI200705-201007

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGSU4#¥160200705-201007

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27040iGSU4#..CHI¥300200705-201007

main47847-48100iGSU4#¥360201007

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48090iGSU4#..CHI¥7,700200705-201007

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08346iGSU4#..CHI¥80200705-201007

*8-1.00PX21.5-10.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-48090iGSU4#..CHI¥7,700200705-201007

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-33020iGSU4#..CHI¥60200705-201007

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-48090iGSU4#..CHI¥450200705-201007

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iGSU4#¥130200705-201312

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-48090iGSU4#..CHI¥820200705-201007

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-48090iGSU4#..CHI¥820200705-201007

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-48090iGSU4#..CHI200705-201007

47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)

main47817-48090iGSU4#..CHI200705-201007

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48090iGSU4#..CHI200705-201007

main47830-48120iGSU4#201007

47831PISTON, REAR DISC BRAKE

main47831-48090iGSU4#..CHI200705-201007

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48090iGSU4#..CHI200705-201007

main47850-48120iGSU4#201007

90015AL002

main90015-AL002

90015AL003

main90015-AL003

22 parts on this diagram · 1 diagram in section
