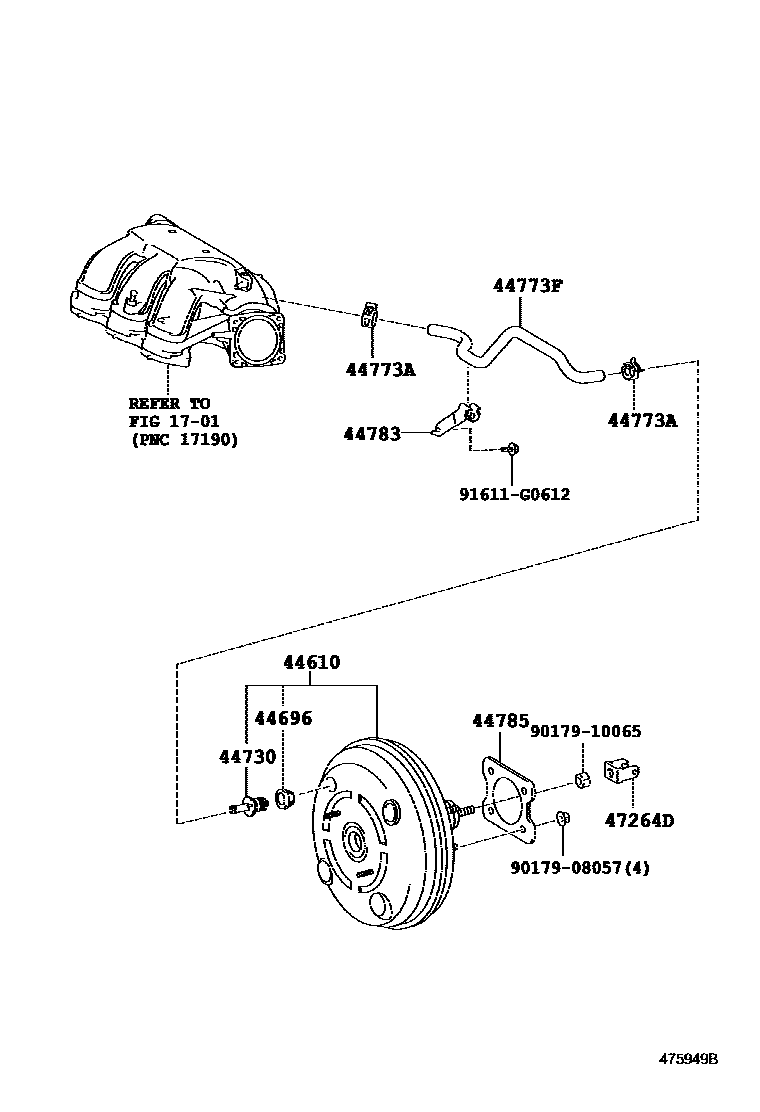

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-48290iGSU4#..CHI200705-200802

sub44610-48291

main44610-48291iGSU45..RUS200803-201312

main44610-48300iGSU4#..ARL200705-200803

sub44610-48301

main44610-48301iGSU4#..ARL200803-201312

44696GROMMET, CHECK VALVE

main90480-24439iGSU4#..ARL200705-201007

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGSU4#..ARL200705-201312

main44730-22150iGSU4#..CHI200705-201312

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90467-16014iGSU4#..CHI200705-201007

44773FHOSE, UNION TO CHECK VALVE

main44773-48160iGSU4#..CHI200705-200901

main44773-48170iGSU4#..ARL200705-201007

44783CLAMP, VACUUM HOSE

main44783-48010iGSU4#..CHI200705-200901

44785GASKET, BRAKE BOOSTER

main44785-12040iGSU4#..CHI200705-201007

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSU4#..CHI200705-201203

9017908057

main90179-08057

9017910065

main90179-10065

91611G0612

main91611-G0612

12 parts on this diagram · 2 diagrams in section
