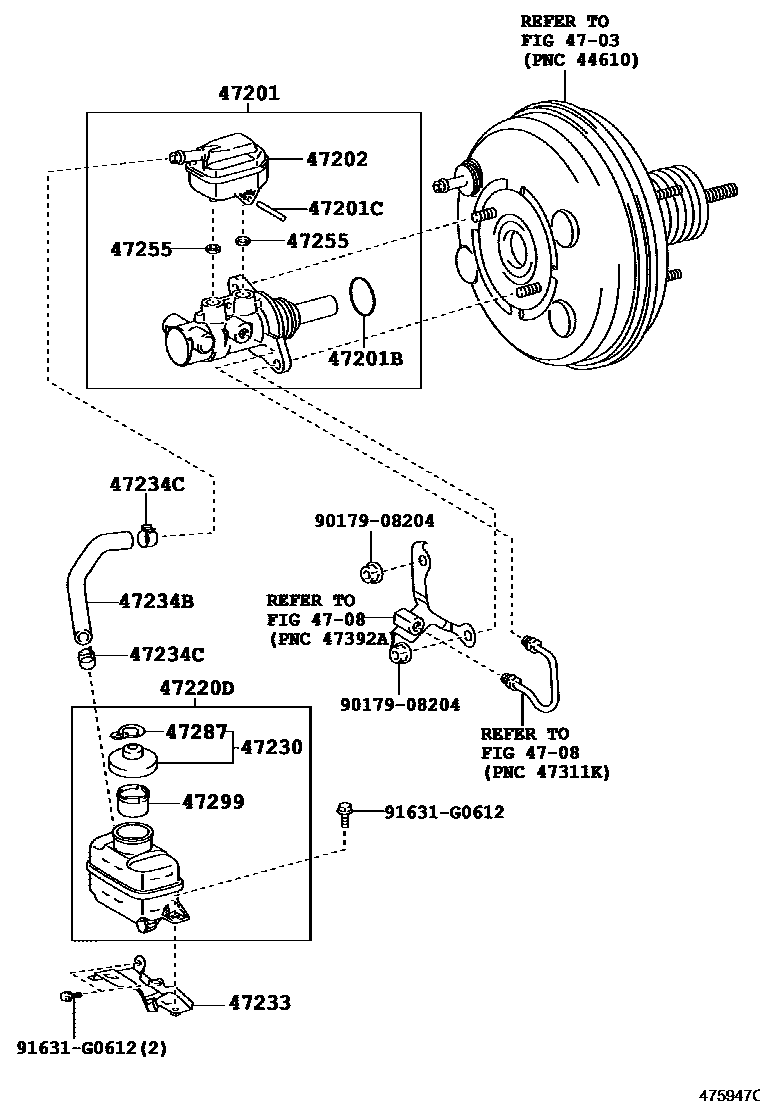

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48200iGSU4#200705-201203

sub47201-48201

main47201-48201iGSU4#201204-201205

sub47201-48202

main47201-48202iGSU4#201205-201312

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSU4#..CHI200705-201203

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSU4#..CHI200705-201203

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iGSU4#200705-201312

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48190iGSU4#200705-201312

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGSU4#..CHI200705-201007

47233BRACKET, RESERVOIR

main47233-48120iGSU4#..CHI200705-200901

main47233-48130iGSU4#..ARL200705-201202

main47233-48131iGSU4#..ARL201202

47234BTUBE, RESERVOIR, NO.1

main47234-48160iGSU4#..CHI200705-200901

main47234-48170iGSU4#..ARL200705-201202

main47234-48171iGSU4#..ARL201202

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iGSU4#..CHI200705-201007

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSU4#..CHI200705-201203

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGSU4#..CHI200705-201007

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSU4#..CHI200705-201007

9017908204

main90179-08204

91631G0612

main91631-G0612

16 parts on this diagram · 2 diagrams in section
