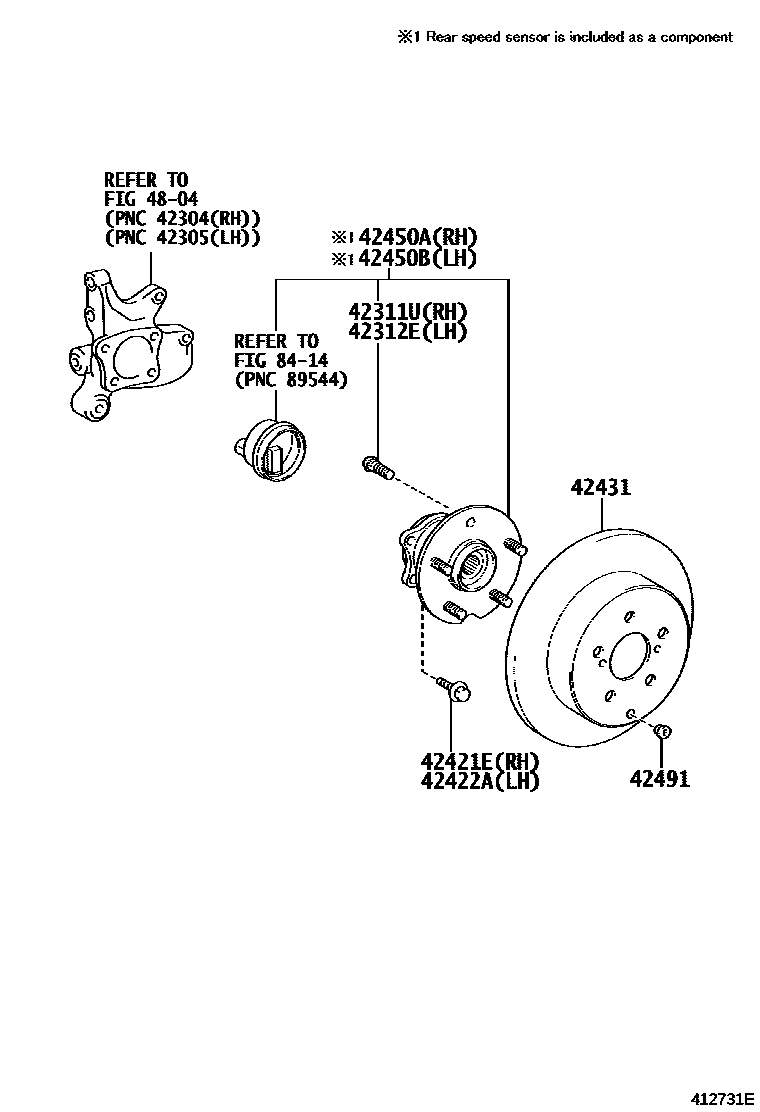

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iGSU4#200705-201007

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iGSU4#..CHI200705-201007

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12332iGSU4#..CHI200705-201007

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12332iGSU4#..CHI200705-201007

42431DISC, REAR

main42431-48060iGSU4#200705-201312

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-48040iGSU40200705-201312

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-48040iGSU40..CHI200705-201007

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iGSU4#200705-201312

4804

8414

10 parts on this diagram · 4 diagrams in section
