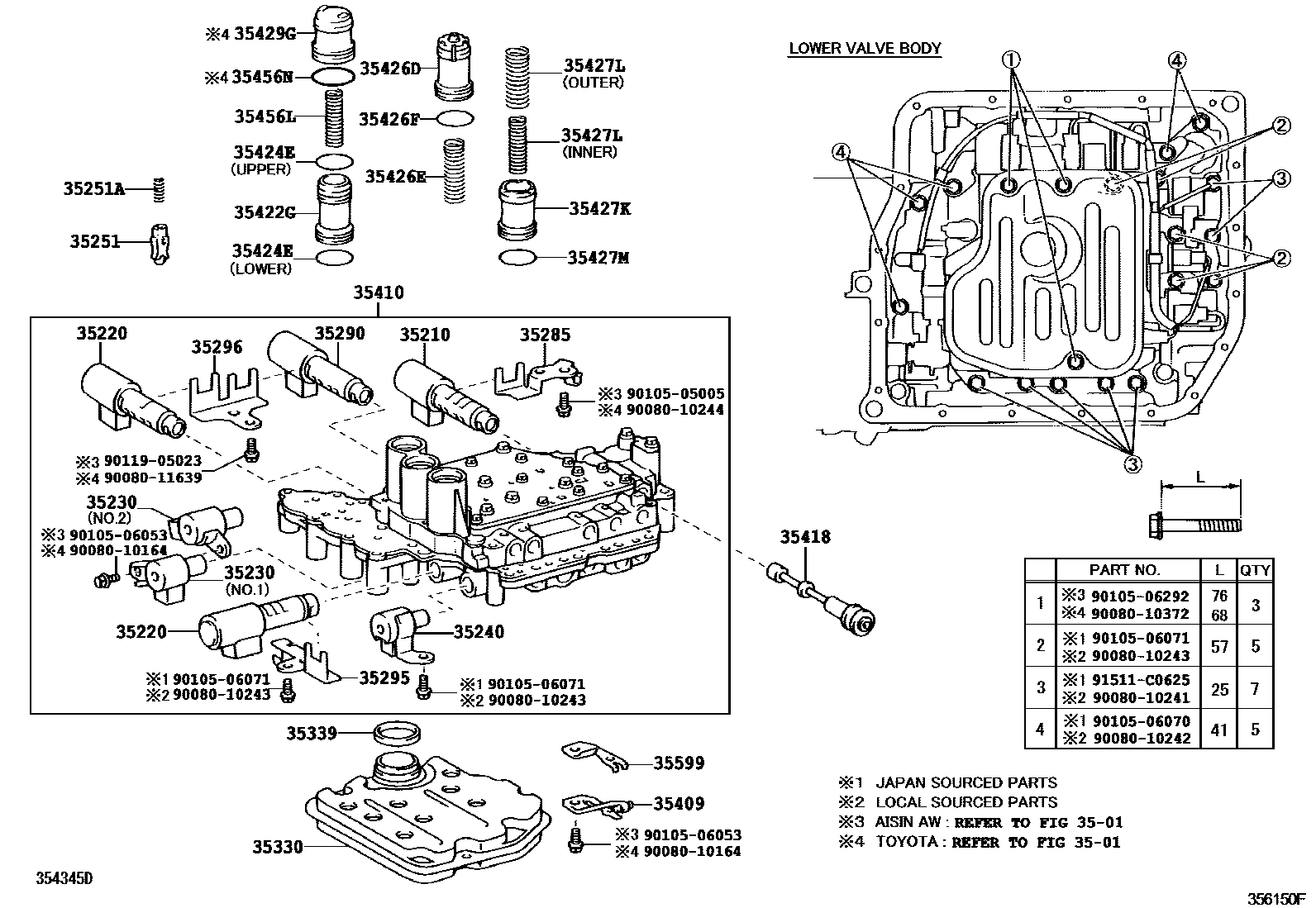

VALVE BODY & OIL STRAINER (ATM)

0001 1U151E,U151F 0002 1U151E,U151F

3501

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33020iGSU4#..CHI200705-201007

AISIN AW:REFER 35-01

main35210-33020iGSU4#201007

main35210-45010iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33020iGSU4#201007

main35220-33020iGSU4#..CHI200705-201007

AISIN AW:REFER 35-01

main35220-45010iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-33010iGSU4#..CHI200705-201007

NO.1

main35230-33020iGSU4#..ARL200705-201007

NO.2

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-33030iGSU4#..CHI200705-201007

35251BODY, CHECK BALL

main35251-30020iGSU4#..CHI200705-201007

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90080-50308iGSU4#..ARL200801-201007

(L)

main90501-03005iGSU4#..CHI200705-201007

(J)

main90501-03005iGSU4#201007

35285PLATE, SOLENOID LOCK

main35285-07010iGSU4#..ARL200801-201007

(L)TOYOTA:REFER35-01

main35285-33030iGSU4#201007

main35285-33030iGSU4#..CHI200705-201007

AISIN AW:REFER 35-01

main35285-45010iGSU4#..ARL200801-201007

(J)TOYOTA:REFER35-01

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33020iGSU4#..CHI200705-201007

AISIN AW:REFER 35-01

main35290-33020iGSU4#201007

main35290-45010iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

35295PLATE, SOLENOID LOCK, NO.2

main35295-07010iGSU4#..ARL200801-201007

(L)TOYOTA:REFER35-01

main35295-33010iGSU4#..ARL200705-201007

AISIN AW:REFER 35-01

main35295-33010iGSU4#201007

main35295-45010iGSU4#..ARL200801-201007

(J)TOYOTA:REFER35-01

35296PLATE, SOLENOID LOCK, NO.3

main35296-07010iGSU4#..ARL200801-201007

(L)TOYOTA:REFER35-01

main35296-33010iGSU4#201007

main35296-33010iGSU4#..CHI200705-201007

AISIN AW:REFER 35-01

main35296-45010iGSU4#..ARL200801-201007

(J)TOYOTA:REFER35-01

35330STRAINER ASSY, VALVE BODY OIL

main35330-08010iGSU4#..ARL200705-201007

35339GASKET, OIL STRAINER

main90080-30077iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

main90301-32012iGSU4#201007

main90301-32012iGSU4#..CHI200705-201007

AISIN AW:REFER 35-01

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-21010iGSU4#..ARL200705-201007

35410BODY ASSY, TRANSMISSION VALVE

main35410-48020iGSU4#201007

main35410-48020iGSU4#..ARL200705-201007

AISIN AW:REFER 35-01

main35410-48030iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

sub35410-48020

35418VALVE, MANUAL

main35418-33010iGSU4#200705-201007

35422GPISTON, REVERSE CLUTCH ACCUMULATOR

main35422-08010iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

main35422-33040iGSU4#..ARL200705-201007

AISIN AW:REFER 35-01

main35422-33040iGSU4#201007

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90080-30076iGSU4#..ARL200801-201007

(L),LOWER

main90301-19016iGSU4#..ARL200705-201007

UPPER

main90301-30007iGSU4#..CHI200705-200901

LOWER

main90301-30007iGSU4#..ARL200705-201007

(J),LOWER

35426DPISTON, C-3 ACCUMULATOR

main35406-06010iGSU4#..ARL200801-200905

(L)

sub35406-21010

main35406-21010iGSU4#200705-201007

main35406-21010iGSU4#..ARL200705-200905

(J)

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90080-50387iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

main90501-22056iGSU4#..CHI200705-200901

main90501-22056iGSU4#..ARL200705-201007

AISIN AW:REFER 35-01

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90080-30076iGSU4#..ARL200801-201007

(L)

main90301-30007iGSU4#200705-200901

main90301-30007iGSU4#..ARL200705-201007

(J)

35427KPISTON, B-3 ACCUMULATOR

main35427-06010iGSU4#..ARL200801-200905

(L)TOYOTA:REFER35-01

sub35427-21010

main35427-21010iGSU4#..ARL200801-200905

(J)TOYOTA:REFER35-01

main35427-21010iGSU4#200905-201007

TOYOTA:REFER 35-01

main35427-28010iGSU4#..CHI200705-200901

main35427-28010iGSU4#..ARL200705-201007

AISIN AW:REFER 35-01

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90080-50388iGSU4#..ARL200801-201007

INNER,TMC:SEE 35-01

main90080-50389iGSU4#..ARL200801-201007

OUTER,TMC:SEE 35-01

main90501-19037iGSU4#..CHI200705-200901

INNER

main90501-19037iGSU4#..ARL200705-201007

INNER,AISIN:SEE35-01

main90501-26096iGSU4#200705-200901

OUTER

main90501-26096iGSU4#..ARL200705-201007

OUTER,AISIN:SEE35-01

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-28008iGSU4#..ARL200705-201007

(J)

main90301-28008iGSU4#200705-200901

main90301-A0017iGSU4#..ARL200801-201007

(L)

35429GSLEEVE, REVERSE CLUTCH ACCUMULATOR

main35429-08010iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

35456LSPRING, COMPRESSION (FOR C-2 CONTROL VALVE)

main90501-19038iGSU4#..ARL200705-201007

(J)

main90501-19038iGSU4#201007

main90501-A0039iGSU4#..ARL200801-201007

(L)

35456NRING, O (FOR C-2 CONTROL)

main90301-A0018iGSU4#..ARL200801-201007

TOYOTA:REFER 35-01

35599COVER, MANUAL DETENT SPRING

main35599-21010iGSU4#..CHI200705-201007

9008010164

main90080-10164

9008010241

main90080-10241

9008010242

main90080-10242

9008010243

main90080-10243

9008010244

main90080-10244

9008010372

main90080-10372

9008011639

main90080-11639

9010505005

main90105-05005

9010506053

main90105-06053

9010506070

main90105-06070

9010506071

main90105-06071

9010506292

main90105-06292

9011905023

main90119-05023

91511C0625

main91511-C0625

42 parts on this diagram · 2 diagrams in section
