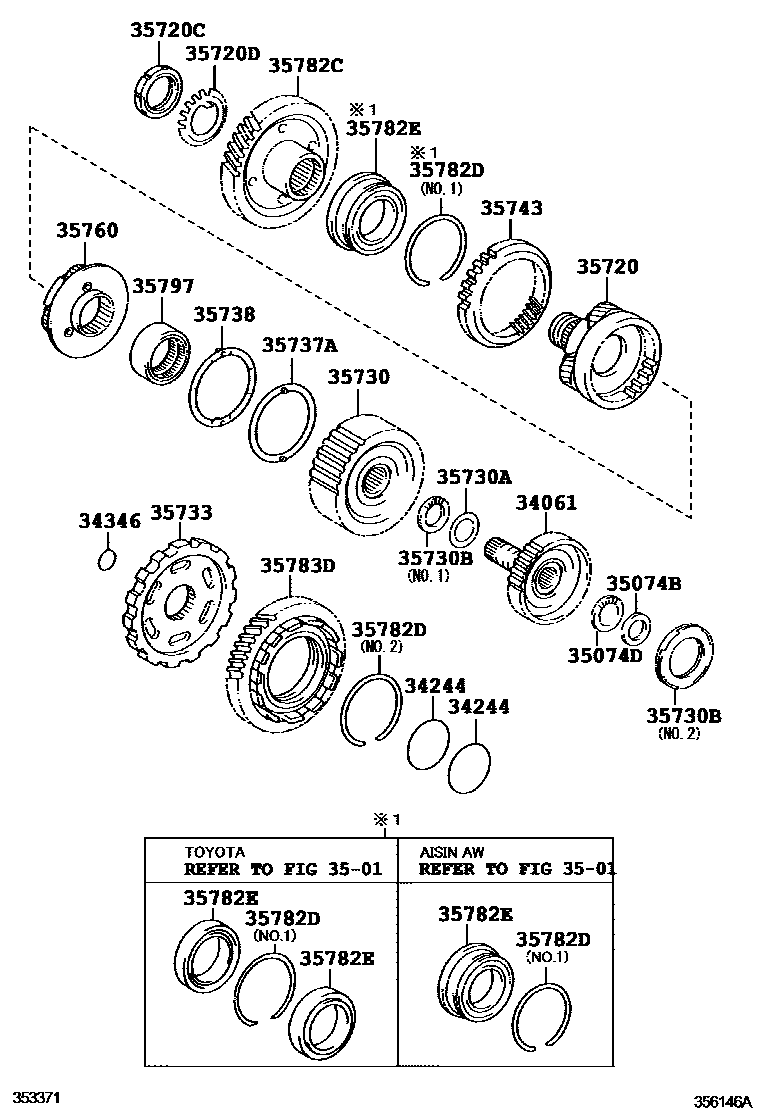

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34061HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH
(L)
(J)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
3501
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35720GEAR ASSY, FRONT PLANETARY
AISIN AW:REFER 35-01
35720CNUT (FOR FRONT PLANETARY GEAR)
(J)
(L)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730GEAR ASSY, REAR PLANETARY SUN
(L)
(J)
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
BLACK,NO.2,*229
BROWN,NO.2,*229
NO.1,TMC:REFER 35-01
*228,NO.1
NO.1
NO.2,T=3.4
T=3.4,NO.2,*228
NO.2,T=3.7
T=3.7,NO.2,*228
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
(L)TOYOTA:REFER35-01
(J)TOYOTA:REFER35-01
AISIN AW:REFER 35-01
35738WASHER, PLANETARY CARRIER THRUST, NO.2
(L)
(J)
35743GEAR, FRONT PLANETARY RING
AISIN AW:REFER 35-01
35760GEAR ASSY, REAR PLANETARY
AISIN AW:REFER 35-01
35782CGEAR, COUNTER DRIVE
AISIN AW:REFER 35-01
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
(L)NO.1,TMC:SEE35-01
(L),NO.2
(J)NO.1,TMC:SEE35-01
NO.1,AISIN:SEE 35-01
NO.1
NO.2
(J),NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35783DGEAR, COUNTER DRIVEN
AISIN AW:REFER 35-01
35797RACE, 1 WAY CLUTCH INNER
22 parts on this diagram · 1 diagram in section
