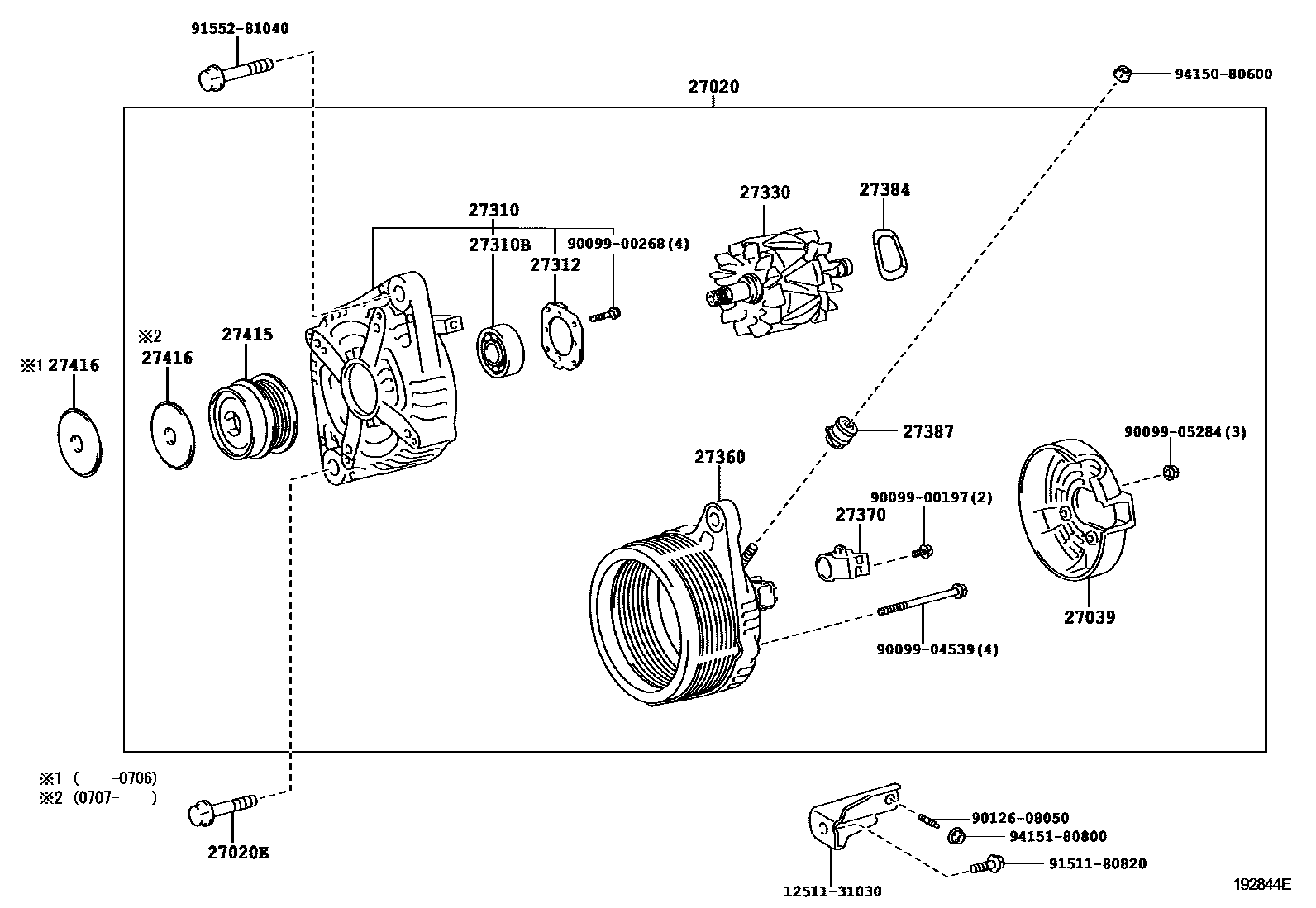

ALTERNATOR
27020ALTERNATOR ASSY
12V 150A,WITH(REAR MANUAL AIR CONDITIONER)
sub27060-31161
12V 150A,WITH(REAR MANUAL AIR CONDITIONER)
sub27060-31162
12V 150A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
WITH(REAR MANUAL AIR CONDITIONER)
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
WITH(REAR MANUAL AIR CONDITIONER)
27360COIL ASSY, ALTERNATOR
WITH(REAR MANUAL AIR CONDITIONER)
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27416CAP, ALTERNATOR PULLEY
1251131030BRACKET, ALTERNATOR, NO.1
main12511-31030
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905284
main90099-05284
9012608050
main90126-08050
9151180820
main91511-80820
9155281040
main91552-81040
9415080600
main94150-80600
9415180800
main94151-80800
23 parts on this diagram · 1 diagram in section
