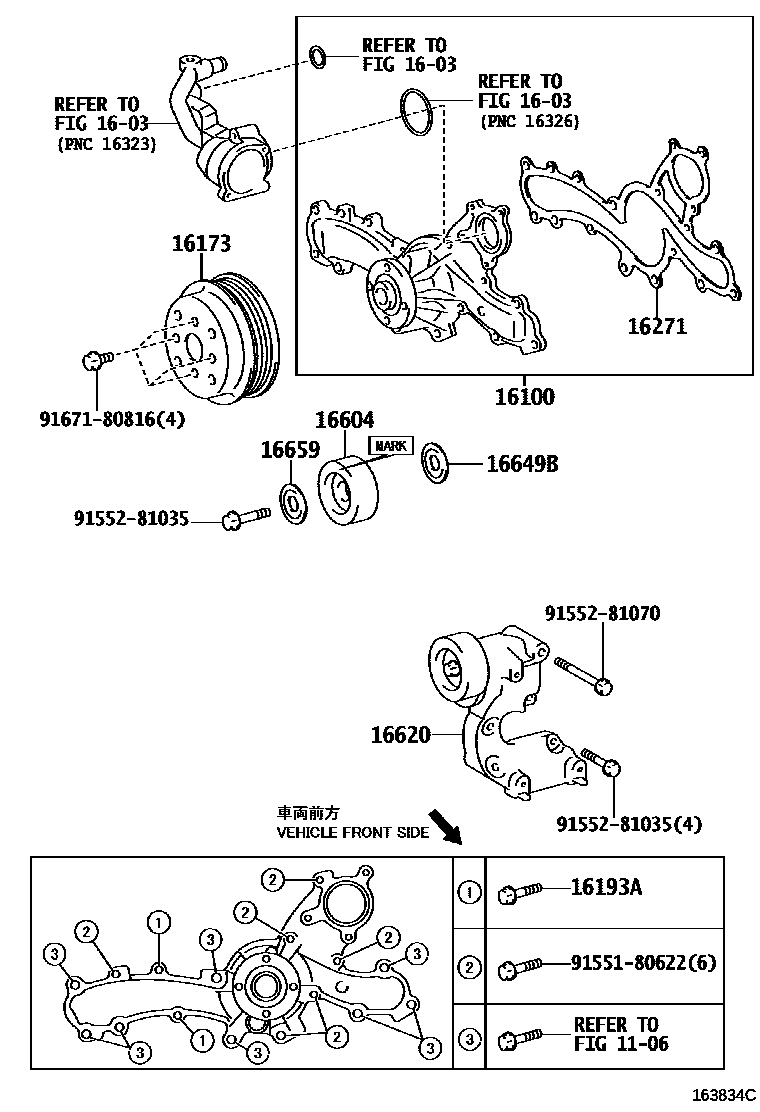

WATER PUMP

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-39455i2GRFE..GSU4#..CHI200705-200903

sub16100-39456

main16100-39456i2GRFE..GSU4#200903-201007

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GSU4#..CHI200705-201007

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GRFE..GSU4#..CHI200705-201007

16271GASKET, WATER PUMP

main16271-31030i2GRFE..GSU4#..CHI200705-201007

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i2GRFE..GSU4#200705-200709

main16604-31020i2GRFE..GSU4#..CHI200709-201007

main16604-31020i2GRFE..GSU4#201007

MARK=PU107013ARMXY3

main16604-31030i2GRFE..GSU4#201206

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GSU4#..CHI200705-201007

16649BPLATE, IDLER PULLEY COVER

main16649-31020i2GRFE..GSU4#..CHI200709-201007

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2GRFE..GSU4#..CHI200705-201007

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

14 parts on this diagram · 1 diagram in section
