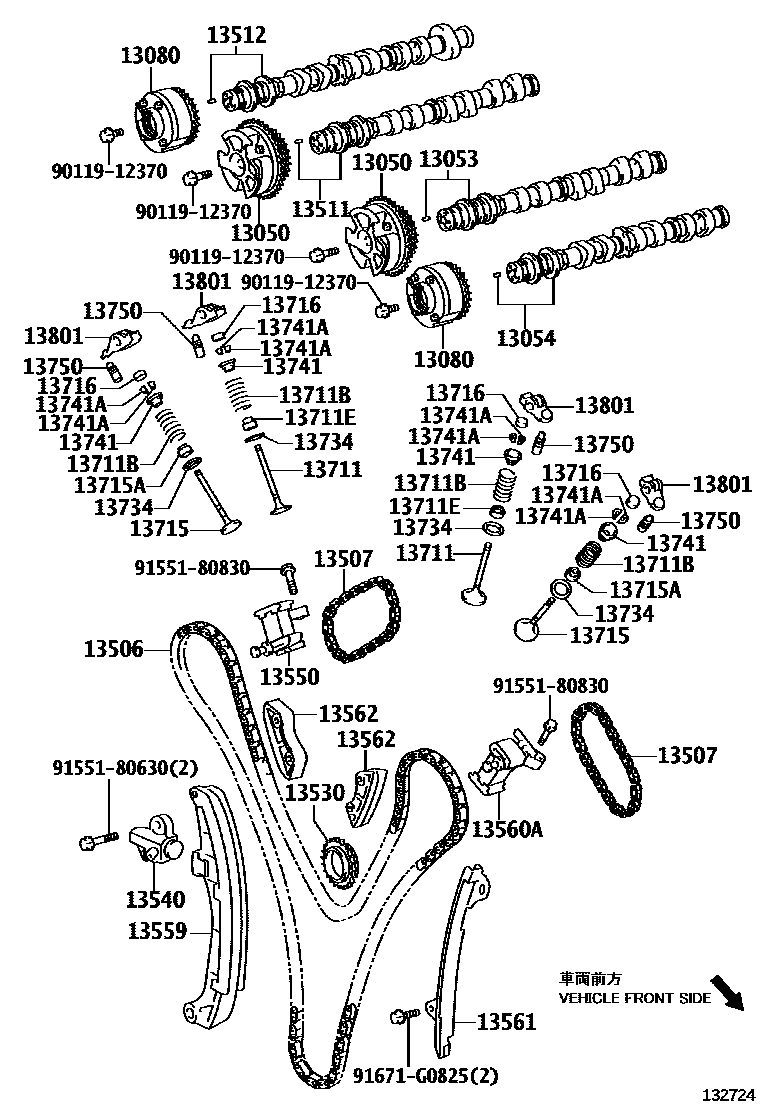

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
sub13053-31061
13054CAMSHAFT SUB-ASSY, NO.4
sub13054-31061
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
sub13501-31091
13512CAMSHAFT, NO.2
sub13502-31061
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9011912370
main90119-12370
9155180630
main91551-80630
9155180830
main91551-80830
91671G0825
main91671-G0825
30 parts on this diagram · 1 diagram in section
