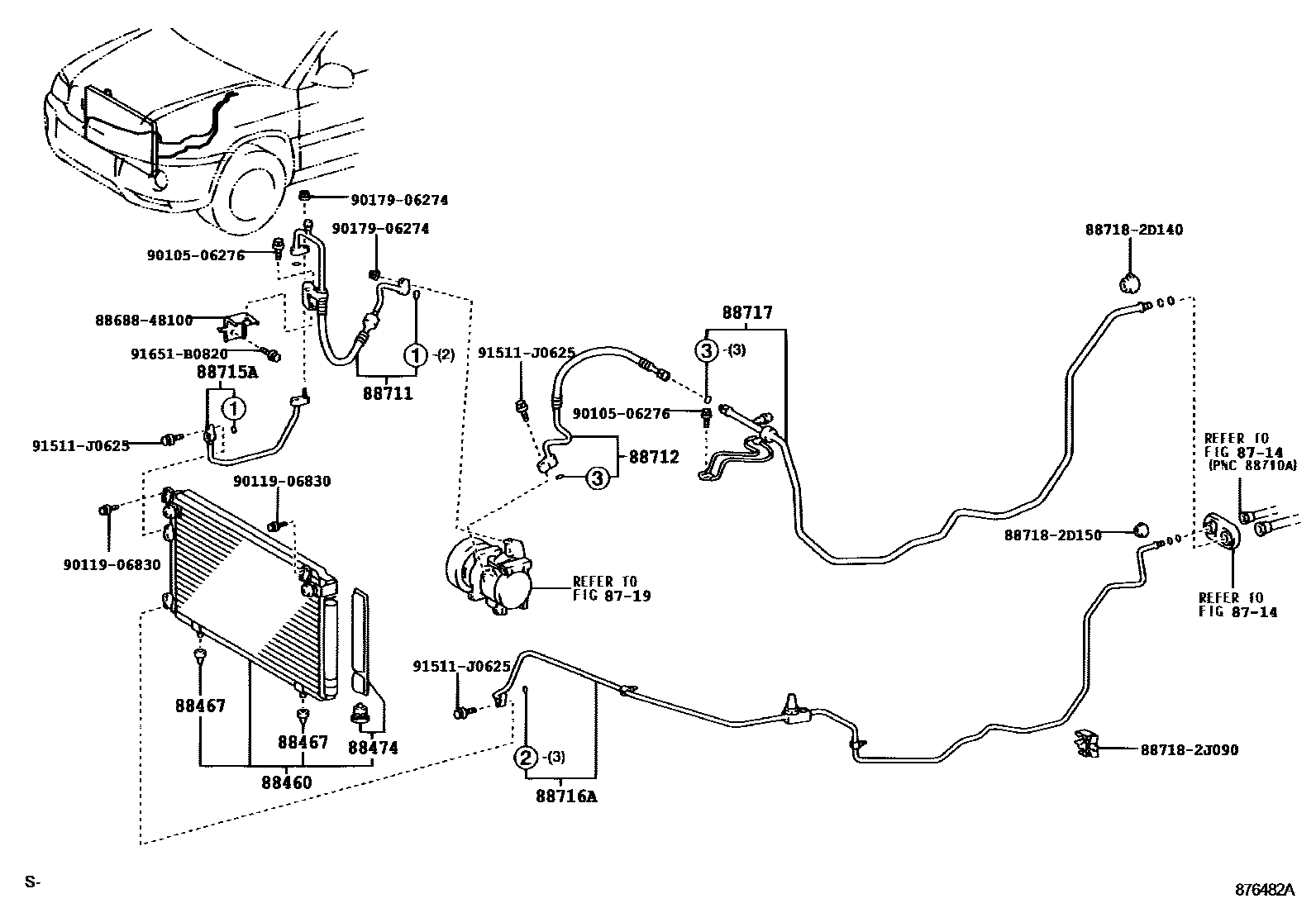

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-48020iMCU28200308

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28040×2iMCU28200308

88474DRYER, COOLER

main88474-47010iMCU28200308

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48050iMCU28200308

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-48050iMCU28200308

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88705-48030iMCU28200308

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-48070iMCU28200308

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88707-48030iMCU28200308

8868848100BRACKET, COOLER DIAPHRAGM

main88688-48100

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

9010506276

main90105-06276

9011906830

main90119-06830

9017906274

main90179-06274

91511J0625

main91511-J0625

91651B0820

main91651-B0820

19 parts on this diagram · 2 diagrams in section
