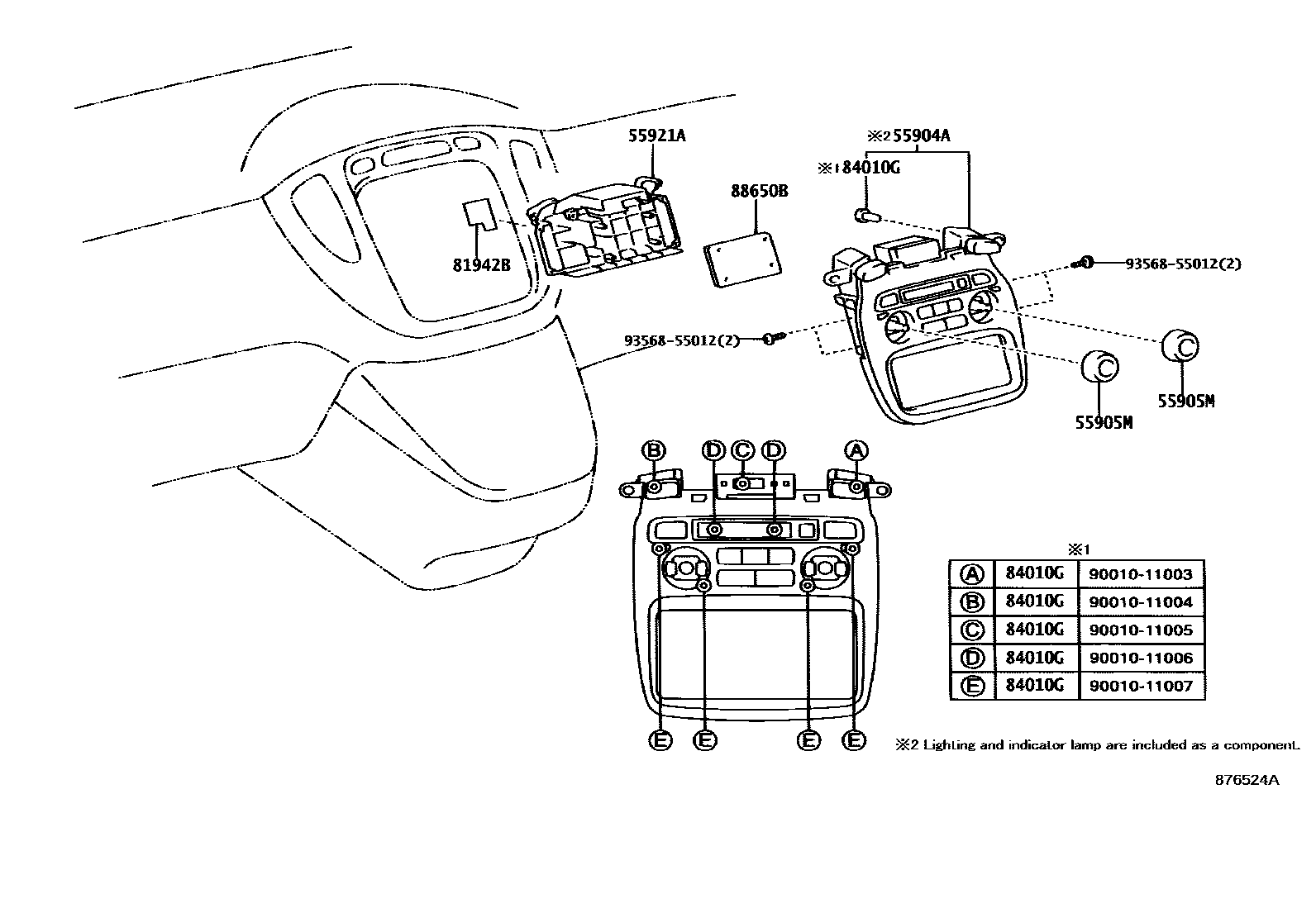

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1W(ELECTRO MULTI VISION) 0003 1FRONT AIR DUCT 0004 1REAR AIR DUCT 0005 1SENSOR

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-48120iMCU28200308-200507

55905MKNOB SUB-ASSY, CONTROL

main55905-48010×2iMCU28200308-200507

55921ARETAINER, HEATER CONTROL

main55921-48011iMCU28200308-200507

81942BSHEET, HEATER CONTROL NAME, NO.2

main81941-48010iMCU28200308-200507

84010GBULB, INTEGRATION CONTROL & PANEL

main90010-11003iMCU28200308

14V 0.91W,TYPE A:REFER TO ILLUSTRATION

main90010-11004iMCU28200308

14V 1.4W,TYPE B:REFER TO ILLUSTRATION

main90010-11005iMCU28200308

8V 1.2W,W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

main90010-11006×2iMCU28200308

14V1.4W,W(GREEN CAP),TYPE D:REFER TO ILLUSTRATION

main90010-11007×4iMCU28200308

14V1.4W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-48090iMCU28..7S200308-200507

W(ELECTRO MULTI VISION)

main88650-48091iMCU28..7S200508

W(ELECTRO MULTI VISION)

main88650-48100iMCU28200308-200507

main88650-48101iMCU28200508

9356855012

main93568-55012

7 parts on this diagram · 5 diagrams in section
