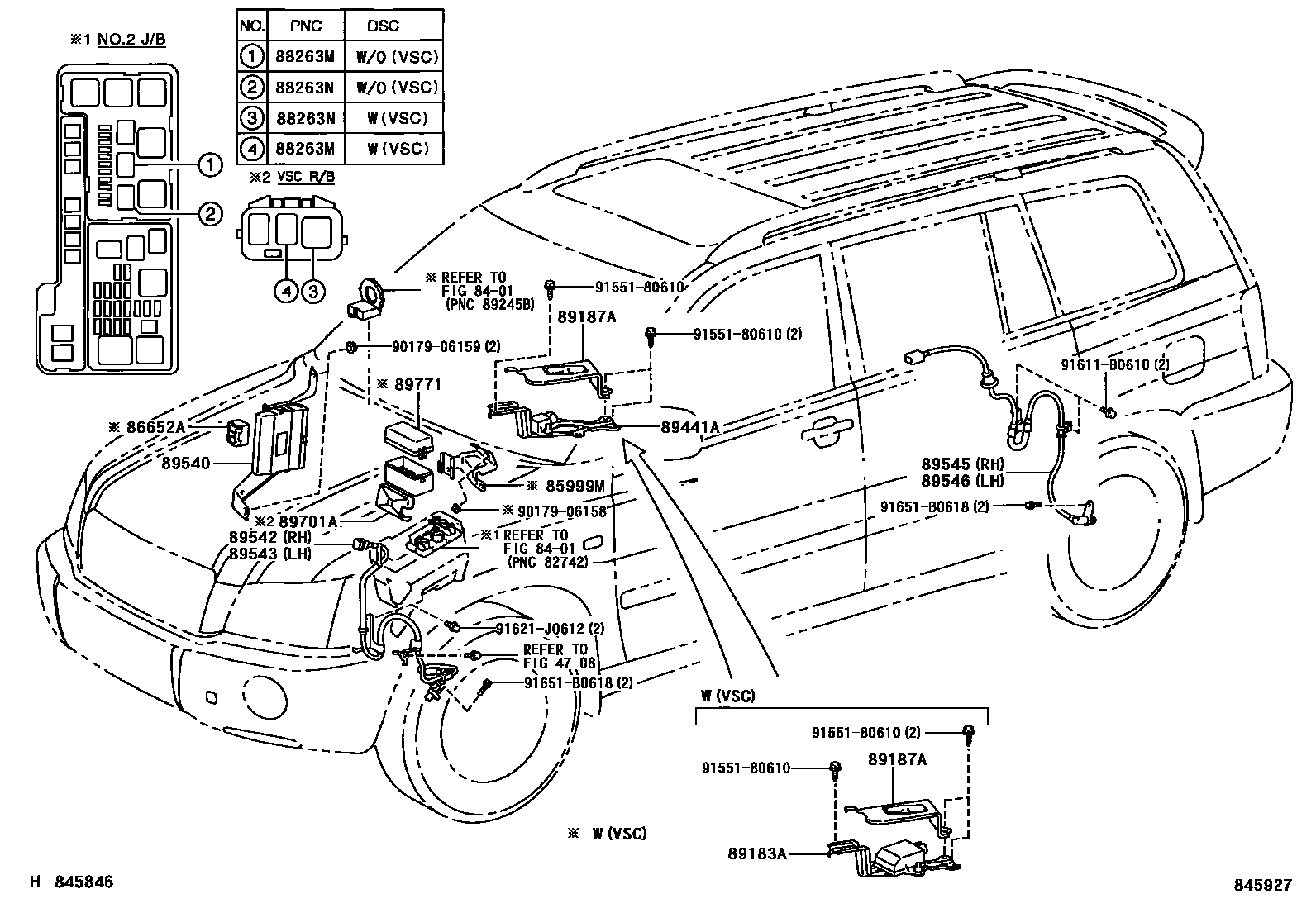

ABS & VSC
4708
8401
85999MBRACKET, RELAY
86652ABUZZER ASSY, SKID CONTROL
88263MRELAY, ABS SOLENOID
89183ASENSOR, YAWRATE
89187APROTECTOR, YAWRATE SENSOR
89441ASENSOR, DECELERATION
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89701ABLOCK SUB-ASSY, ABS RELAY
89771COVER, ABS RELAY BLOCK, UPPER
9017906158
main90179-06158
9017906159
main90179-06159
9155180610
main91551-80610
91611B0610
main91611-B0610
91621J0612
main91621-J0612
91651B0618
main91651-B0618
22 parts on this diagram · 1 diagram in section
