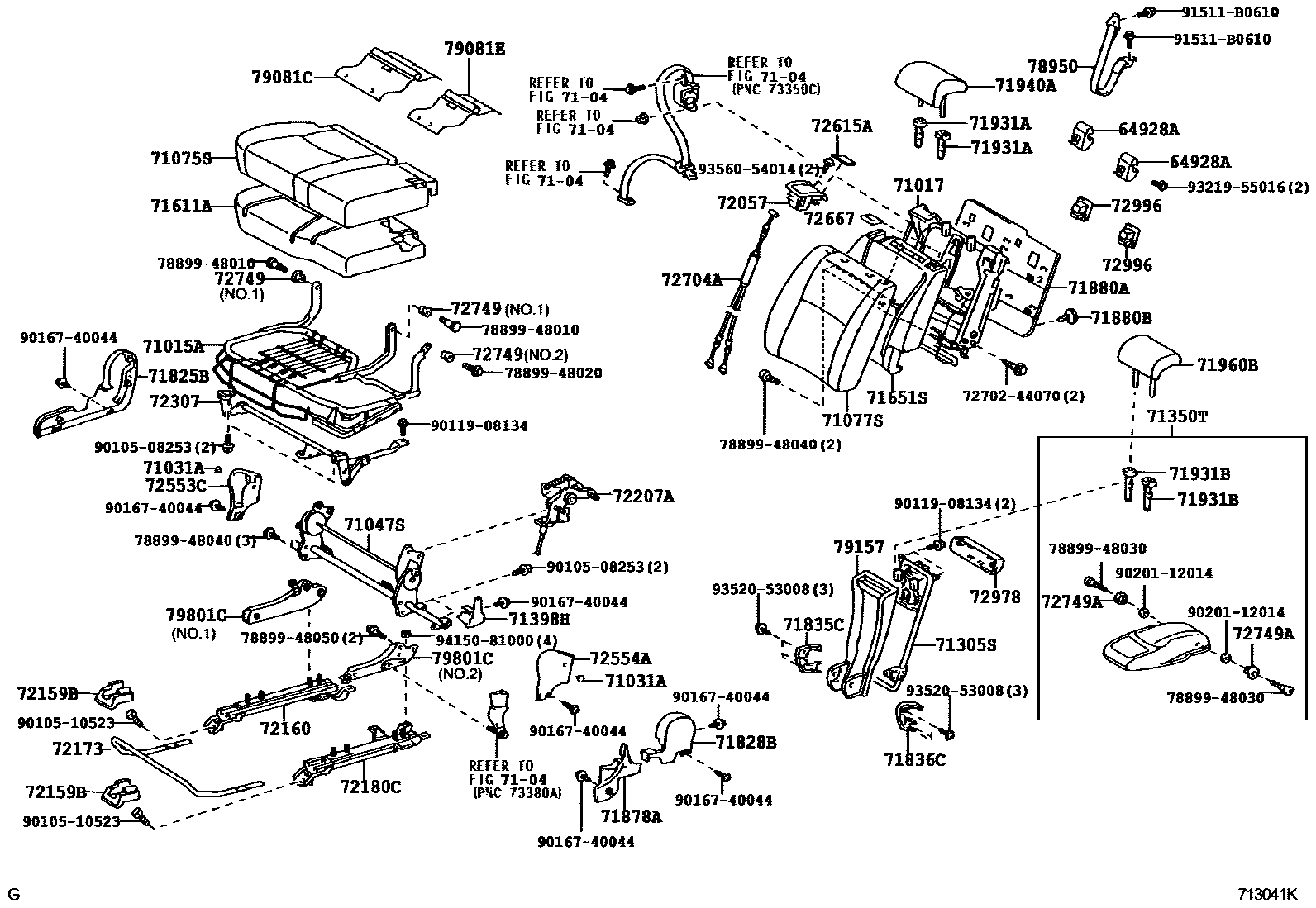

REAR SEAT & SEAT TRACK

0001 1REAR-RH 0002 1REAR-LH 0003 1REAR NO.1-RH 0004 1REAR NO.1-LH 0005 1REAR NO.2

64928AHOLDER, TONNEAU COVER HOOK

main64928-48010iMCU28..5S200308-200705

main64928-48010-A0iMCU28..5S200308-200705

IVORY,TRIM0#

sub64928-48010

main64928-48010-B2iMCU28..5S200308-200705

GRAY,TRIM1#

sub64928-48010

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71650-48020iMCU28..5S200308

main71650-48030iMCU28..7S200308

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-48100iMCU28..5S200308

main71017-48120iMCU28..7S200308

71031ACLIP, CENTER SEAT CUSHION

main90467-05159-A0iMCU28..5S200308-200705

IVORY,TRIM0#

sub90467-05159

main90467-05159-B2iMCU28..5S200308-200705

GRAY,TRIM1#

sub90467-05159

main90467-05159-C0iMCU28..7S200308-200705

BLACK,TRIM2#

sub90467-05159

7104

71047SFRAME SUB-ASSY, REAR SEATBACK, LOWER RH

main71047-48020iMCU28..5S200308

main71047-48030iMCU28..7S200308

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-48240-A4iMCU28..5S200308-200705

IVORY,TRIM0#

sub71075-48241

sub71075-48240

main71075-48240-B4iMCU28..5S200308-200705

GRAY,TRIM1#

sub71075-48241

sub71075-48240

main71075-48250-A2iMCU28..5S200308-200705

LEATHER SEAT,IVORY,TRIM0#

sub71075-48250

main71075-48250-B2iMCU28..5S200308-200705

LEATHER SEAT,GRAY,TRIM1#

sub71075-48250

main71075-48280-A4iMCU28..7S200308-200705

IVORY,TRIM0#

sub71075-48280

main71075-48280-B4iMCU28..7S200308-200705

GRAY,TRIM1#

sub71075-48280

main71075-48290-A2iMCU28..7S200308-200705

LEATHER SEAT,IVORY,TRIM0#

main71075-48290-B2iMCU28..7S200308-200705

LEATHER SEAT,GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-48290-A3iMCU28..5S200308-200408

IVORY,TRIM0#

main71077-48290-B3iMCU28..5S200308-200408

GRAY,TRIM1#

main71077-48300-A1iMCU28..5S200308-200408

LEATHER SEAT,IVORY,TRIM0#

main71077-48300-B1iMCU28..5S200308-200408

LEATHER SEAT,GRAY,TRIM1#

main71077-48310-A3iMCU28..7S200308-200408

IVORY,TRIM0#

main71077-48310-B3iMCU28..7S200308-200408

GRAY,TRIM1#

main71077-48320-A1iMCU28..7S200308-200408

LEATHER SEAT,IVORY,TRIM0#

main71077-48320-B1iMCU28..7S200308-200408

LEATHER SEAT,GRAY,TRIM1#

main71077-48321-A2iMCU28..7S200408-200705

LEATHER SEAT,IVORY,TRIM0#

main71077-48321-B2iMCU28..7S200408-200705

LEATHER SEAT,GRAY,TRIM1#

main71077-48410-A1iMCU28..5S200408-200705

IVORY,TRIM0#

sub71077-48411

main71077-48410-B1iMCU28..5S200408-200705

GRAY,TRIM1#

sub71077-48411

main71077-48420-A1iMCU28..5S200408-200705

LEATHER SEAT,IVORY,TRIM0#

main71077-48420-B1iMCU28..5S200408-200705

LEATHER SEAT,GRAY,TRIM1#

main71077-48430-A0iMCU28..7S200408-200705

IVORY,TRIM0#

main71077-48430-B0iMCU28..7S200408-200705

GRAY,TRIM1#

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71305-48020iMCU28..5S200308

main71305-48040iMCU28..7S200308

71350TBACK ASSY, CENTER SEAT

main71350-48060-A0iMCU28200308-200705

IVORY,TRIM0#

sub71350-48060

main71350-48060-B0iMCU28200308-200705

GRAY,TRIM1#

sub71350-48060

main71350-48070-A0iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

sub71350-48070

main71350-48070-B0iMCU28200308-200705

LEATHER SEAT,GRAY,TRIM1#

sub71350-48070

71398HCOVER, CENTER SEAT HINGE, UPPER LH

main71398-48010-A0iMCU28200308-200705

IVORY,TRIM0#

sub71398-48030

main71398-48010-B1iMCU28200308-200705

GRAY,TRIM1#

sub71398-48030

71611APAD, REAR SEAT CUSHION, RH

main71611-48210iMCU28..5S200308

main71611-48230iMCU28..7S200308

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-48150iMCU28..5S200408

main71651-48160iMCU28..7S200408

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-48030-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main71825-48030-B1iMCU28..5S200308-200705

GRAY,TRIM1#

main71825-48040-A0iMCU28..7S200308-200705

IVORY,TRIM0#

main71825-48040-B0iMCU28..7S200308-200705

GRAY,TRIM1#

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-48030-A0iMCU28..5S200308-200705

IVORY,TRIM0#

sub71828-48030

main71828-48030-B1iMCU28..5S200308-200705

GRAY,TRIM1#

sub71828-48030

main71828-48050-A0iMCU28..7S200308-200705

IVORY,TRIM0#

sub71828-48050

main71828-48050-B0iMCU28..7S200308-200705

NEW GRAY,TRIM1#

sub71828-48050

71835CMOULDING, REAR SEATBACK, RH

main71835-48010-A0iMCU28200308-200705

IVORY,TRIM0#

sub71835-48010

main71835-48010-B1iMCU28200308-200705

GRAY,TRIM1#

sub71835-48010

71836CMOULDING, REAR SEATBACK, LH

main71836-48010-A0iMCU28200308-200705

IVORY,TRIM0#

sub71836-48010

main71836-48010-B1iMCU28200308-200705

GRAY,TRIM1#

sub71836-48010

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-48020-A0iMCU28200308-200705

IVORY,TRIM0#

sub71878-48020

main71878-48020-B1iMCU28200308-200705

GRAY,TRIM1#

sub71878-48020

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-48120-A0iMCU28..7S200308-200705

IVORY,TRIM0#

sub71880-48120

main71880-48120-B0iMCU28..7S200308-200705

LT.GRAY,TRIM1#

sub71880-48120

main71880-48140-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main71880-48140-B0iMCU28..5S200308-200705

LT.GRAY,TRIM1#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-07049-A0iMCU28..5S200308-200705

IVORY,TRIM0#

sub90467-07049

main90467-07049-P6iMCU28..5S200308-200705

GRAY,TRIM1#

sub90467-07049

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-A0iMCU28200308-200705

W(LOCK)&W(BUTTON),IVORY,TRIM0#

sub71930-52030

sub71930-42020

sub71930-44020

main71930-42020-B7iMCU28200308-200705

W(LOCK)&W(BUTTON),GRAY,TRIM1#

sub71930-52030

sub71930-42020

sub71930-44020

main71931-42020-A0iMCU28200308-200705

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

sub71931-42020

main71931-42020-B7iMCU28200308-200705

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

sub71931-42020

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71955-48010-A0iMCU28200308-200705

W(LOCK),IVORY,TRIM0#

sub71955-48020

main71955-48010-B1iMCU28200308-200705

W(LOCK),GRAY,TRIM1#

sub71955-48020

main71956-48010-A0iMCU28200308-200705

W/O(LOCK),IVORY,TRIM0#

sub71956-48010

main71956-48010-B1iMCU28200308-200705

W/O(LOCK),GRAY,TRIM1#

sub71956-48010

71940AHEADREST ASSY, REAR SEAT

main71940-48210-A0iMCU28200308-200705

IVORY,TRIM0#

sub71940-48211

main71940-48210-B0iMCU28200308-200705

GRAY,TRIM1#

sub71940-48211

main71940-48220-A0iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

main71940-48220-B0iMCU28200308-200705

LEATHER SEAT,GRAY,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-48150-A2iMCU28200308-200705

LEATHER SEAT,IVORY,TRIM0#

sub71960-48150

main71960-48150-B2iMCU28200308-200705

LEATHER SEAT,GRAY,TRIM1#

sub71960-48150

main71960-48160-A2iMCU28200308-200705

IVORY,TRIM0#

sub71960-48161

main71960-48160-B2iMCU28200308-200705

GRAY,TRIM1#

sub71960-48161

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-48030-A0iMCU28200308-200705

IVORY,TRIM0#

sub72057-48030

main72057-48030-B1iMCU28200308-200705

GRAY,TRIM1#

sub72057-48030

72159BCOVER, REAR SEAT TRACK BRACKET, OUTER

main72152-48020-A0iMCU28200308-200705

IVORY,TRIM0#,RH SEAT

main72152-48020-B0iMCU28200308-200705

NEW GRAY,TRIM1#,RH SEAT

main72152-48030-A0iMCU28..5S200308-200705

IVORY,TRIM0#,LH SEAT

main72152-48030-B0iMCU28..5S200308-200705

NEW GRAY,TRIM1#,LH SEAT

main72159-48040-A0iMCU28..7S200308-200705

IVORY,TRIM0#,LH SEAT

main72159-48040-B0iMCU28..7S200308-200705

NEW GRAY,TRIM1#,LH SEAT

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-48020iMCU28..5S200308

main72160-48030iMCU28..7S200308

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-48010iMCU28..5S200308-200409

sub72173-48030

main72173-48020iMCU28..7S200308-200409

sub72173-48040

main72173-48030iMCU28..5S200410

main72173-48040iMCU28..7S200410

72180CTRACK ASSY, REAR SEAT, INNER RH

main72180-48020iMCU28..5S200308

main72180-48030iMCU28..7S200308

72207APLATE, SEAT TRACK STOP RH

main72207-48010iMCU28200308

72307LINK SUB-ASSY, RECLINING CONTROL, RH

main72307-48020iMCU28200308

72553CPROTECTOR, RECLINING COVER, RH

main72553-48060-A0iMCU28200308-200705

IVORY,TRIM0#

sub72553-48060

main72553-48060-B1iMCU28200308-200705

GRAY,TRIM1#

sub72553-48060

72554APROTECTOR, RECLINING COVER, LH

main72554-48060-A0iMCU28200308-200705

IVORY,TRIM0#

sub72554-48060

main72554-48060-B1iMCU28200308-200705

GRAY,TRIM1#

sub72554-48060

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-48020-A0iMCU28200308-200705

IVORY,TRIM0#

sub72615-48020

main72615-48020-B1iMCU28200308-200705

GRAY,TRIM1#

sub72615-48020

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-48010-A0iMCU28200308-200705

IVORY,TRIM0#

main72667-48010-B1iMCU28200308-200705

GRAY,TRIM1#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-48010iMCU28..5S200308

main72704-48040iMCU28..7S200308

72749SPACER, REAR SEAT RECLINING

main72749-48010iMCU28200308-200705

NO.1

main72749-48020iMCU28200308-200705

NO.2

72749ASPACER, REAR SEAT RECLINING

main72749-48030iMCU28200308

72978COVER, NO.2 CENTER SEATBACK

main72978-48020-A0iMCU28200308-200705

IVORY,TRIM0#

sub72978-48020

main72978-48020-B0iMCU28200308-200705

GRAY,TRIM1#

sub72978-48020

72996COVER, REAR SEATBACK, RH

main72996-48030-A0iMCU28200308-200705

IVORY,TRIM0#

sub72996-48030

main72996-48030-B1iMCU28200308-200705

GRAY,TRIM1#

sub72996-48030

78950BAND ASSY, FOLD SEAT STOPPER, NO.1

main78950-48030iMCU28200308

79081CCOVER, REAR SEAT, NO.1

main79081-48010iMCU28..5S200308

main79081-48040iMCU28..7S200308

79081ECOVER, REAR SEAT, NO.3

main79081-48030iMCU28..5S200308

sub79081-48170

main79081-48060iMCU28..7S200308

79157COVER, NO.1 SEATBACK

main79157-48010-A0iMCU28..5S200308-200705

IVORY,TRIM0#

sub79157-48010

main79157-48010-B1iMCU28..5S200308-200705

GRAY,TRIM1#

sub79157-48010

main79157-48020-A0iMCU28..7S200308-200705

IVORY,TRIM0#

sub79157-48020

sub79157-48040

main79157-48020-B0iMCU28..7S200308-200705

NEW GRAY,TRIM1#

sub79157-48020

sub79157-48040

79801CFRAME, FOLD SEAT CUSHION, NO.2

main79801-48010iMCU28..5S200308

NO.1

main79801-48020iMCU28..5S200308

NO.2

main79801-48030iMCU28..7S200308

NO.1

main79801-48040iMCU28..7S200308

NO.2

7270244070BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-44070

7889948010BOLT, FRONT SEAT

main78899-48010

7889948020BOLT, FRONT SEAT

main78899-48020

7889948030BOLT, FRONT SEAT

main78899-48030

7889948040BOLT, FRONT SEAT

main78899-48040

7889948050BOLT, FRONT SEAT

main78899-48050

9010508253

main90105-08253

9010510523

main90105-10523

9011908134

main90119-08134

9016740044

main90167-40044

9020112014

main90201-12014

91511B0610

main91511-B0610

9321955016

main93219-55016

9352053008

main93520-53008

9356054014

main93560-54014

9415081000

main94150-81000

61 parts on this diagram · 5 diagrams in section
