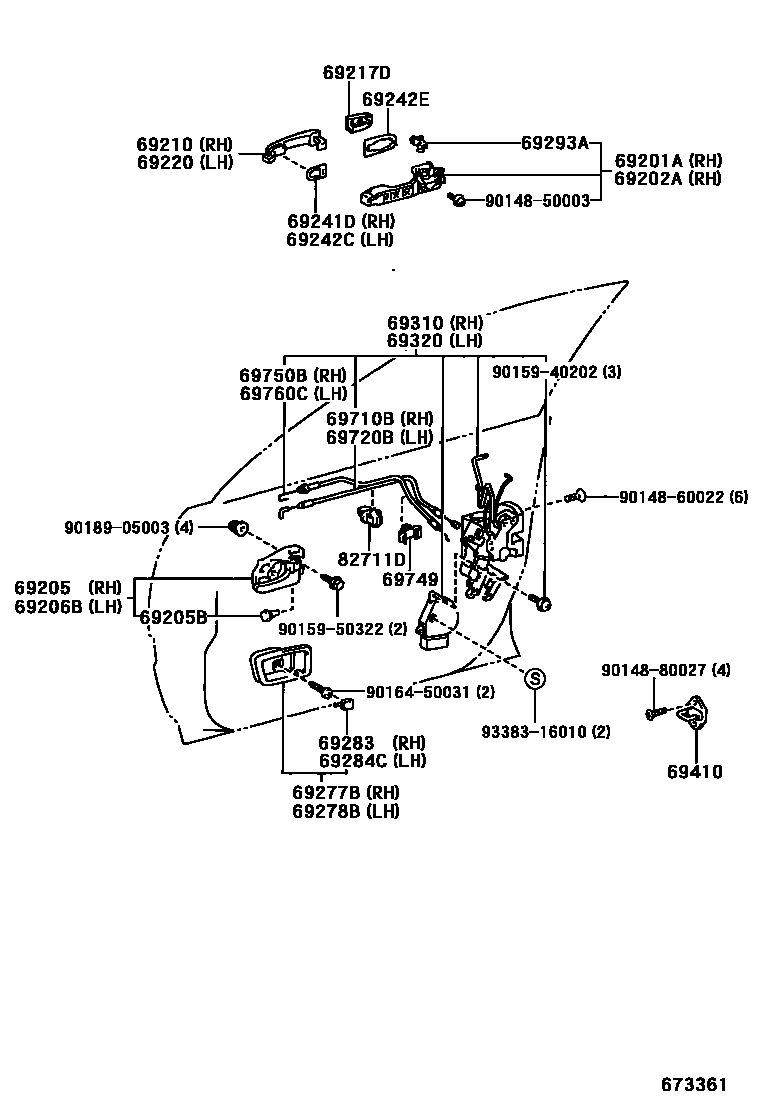

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
GRAY,TRIM1#
W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#
W(CHROME PLATED INSIDE HANDLE),GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#
W(CHROME PLATED INSIDE HANDLE),GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#
W(CHROME PLATED INSIDE HANDLE),GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
NEW GRAY,TRIM1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
NEW GRAY,TRIM1#
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
82711DCLAMP, WIRING HARNESS
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9338316010
main93383-16010
33 parts on this diagram · 1 diagram in section
