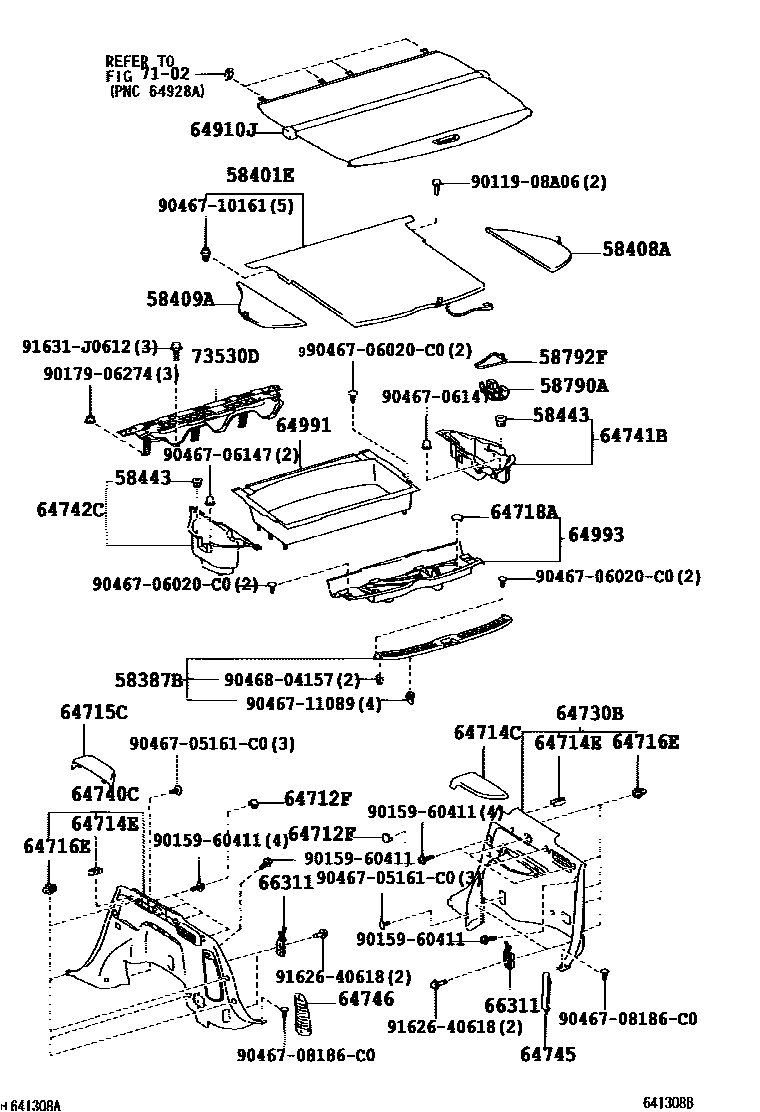

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-48040-A0iMCU28200308-200705

IVORY,TRIM0#

sub58387-48040¥6,200

main58387-48040-B0iMCU28200308-200705

GRAY,TRIM1#

sub58387-48040¥6,200

58401EBOARD SUB-ASSY, DECK

main58410-48060-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main58410-48060-B0iMCU28..5S200308-200705

LT.GRAY,TRIM1#

main58410-48070-A0iMCU28..7S200308-200705

IVORY,TRIM0#

main58410-48070-B0iMCU28..7S200308-200705

LT.GRAY,TRIM1#

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-48060-A0iMCU28200308-200705

IVORY,TRIM0#

main58408-48060-B0iMCU28200308-200705

LT.GRAY,TRIM1#

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-48060-A0iMCU28200308-200705

IVORY,TRIM0#

main58409-48060-B0iMCU28200308-200705

LT.GRAY,TRIM1#

58443CUSHION, DECK BOARD, NO.1

main58443-33010iMCU28¥80200308

58790ACARRIER ASSY, JACK

main58790-48020iMCU28¥1,090200308

58792FSUPPORT, JACK CARRIER

main58792-48010iMCU28¥570200308

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-48010-A0iMCU28200308-200705

IVORY,TRIM0#

sub64712-48010¥370

main64712-48010-B2iMCU28200308-200705

GRAY,TRIM1#

sub64712-48010¥370

64714CCOVER, DECK SIDE TRIM, RH

main64714-48040-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main64714-48040-B0iMCU28..5S200308-200705

GRAY,TRIM1#

main64714-48050-A0iMCU28..7S200308-200705

IVORY,TRIM0#

main64714-48050-B0iMCU28..7S200308-200705

GRAY,TRIM1#

main64714-48060-A0iMCU28..7S200308-200705

W(REAR HEATER),IVORY,TRIM0#

main64714-48060-B0iMCU28..7S200308-200705

W(REAR HEATER),GRAY,TRIM1#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-12080iMCU28¥60200308

64715CCOVER, DECK SIDE TRIM, LH

main64715-48040-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main64715-48040-B0iMCU28..5S200308-200705

GRAY,TRIM1#

main64715-48050-A0iMCU28..7S200308-200705

IVORY,TRIM0#

main64715-48050-B0iMCU28..7S200308-200705

GRAY,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iMCU28¥90200308

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-48010iMCU28¥490200308

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-48040-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main64730-48040-B0iMCU28..5S200308-200705

GRAY,TRIM1#

main64730-48050-A0iMCU28..7S200308-200705

IVORY,TRIM0#

main64730-48050-B0iMCU28..7S200308-200705

GRAY,TRIM1#

main64730-48060-A0iMCU28..7S200308-200705

W(REAR HEATER),IVORY,TRIM0#

main64730-48060-B0iMCU28..7S200308-200705

W(REAR HEATER),GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-48040-A0iMCU28..5S200308-200705

IVORY,TRIM0#

main64740-48040-B0iMCU28..5S200308-200705

GRAY,TRIM1#

main64740-48050-A0iMCU28..7S200308-200705

IVORY,TRIM0#

main64740-48050-B0iMCU28..7S200308-200705

GRAY,TRIM1#

64741BBOX, DECK SIDE TRIM, RH

main64741-48040iMCU28¥9,800200308

64742CBOX, DECK SIDE TRIM, LH

main64742-48030iMCU28¥8,800200308

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-48010-A0iMCU28200308-200705

IVORY,TRIM0#

sub64745-48010¥3,170

main64745-48010-B2iMCU28200308-200705

GRAY,TRIM1#

sub64745-48010¥3,170

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-48010-A0iMCU28200308-200705

IVORY,TRIM0#

sub64746-48010¥3,170

main64746-48010-B2iMCU28200308-200705

GRAY,TRIM1#

sub64746-48010¥3,170

64910JCOVER ASSY, TONNEAU

main64910-48050-A0iMCU28200308-200705

IVORY,TRIM0#

main64910-48050-B0iMCU28200308-200705

GRAY,TRIM1#

64991BOX, DECK FLOOR, FRONT

main64991-48020iMCU28..5S¥25,300200308

64993BOX, DECK FLOOR, REAR

main64993-48020iMCU28¥16,100200308

66311HOOK, ROPE

main66310-32010-A0iMCU28200308-200705

IVORY,TRIM0#

sub66310-32010¥2,340

main66310-32010-B3iMCU28200308-200705

GRAY,TRIM1#

sub66310-32010¥2,340

7102

73530DPANEL ASSY, REAR SEAT SUB FLOOR

main73530-48020iMCU28..5S¥10,100200308

9011908A06

main90119-08A06¥130

9015960411

main90159-60411¥100

9017906274

main90179-06274¥70

9046705161C0

main90467-05161C0

9046706020C0

main90467-06020C0

9046706147

main90467-06147¥80

9046708186C0

main90467-08186C0

9046710161

main90467-10161¥90

9046711089

main90467-11089¥230

9046804157

main90468-04157¥80

9162640618

main91626-40618¥90

91631J0612

main91631-J0612¥110

37 parts on this diagram · 2 diagrams in section
