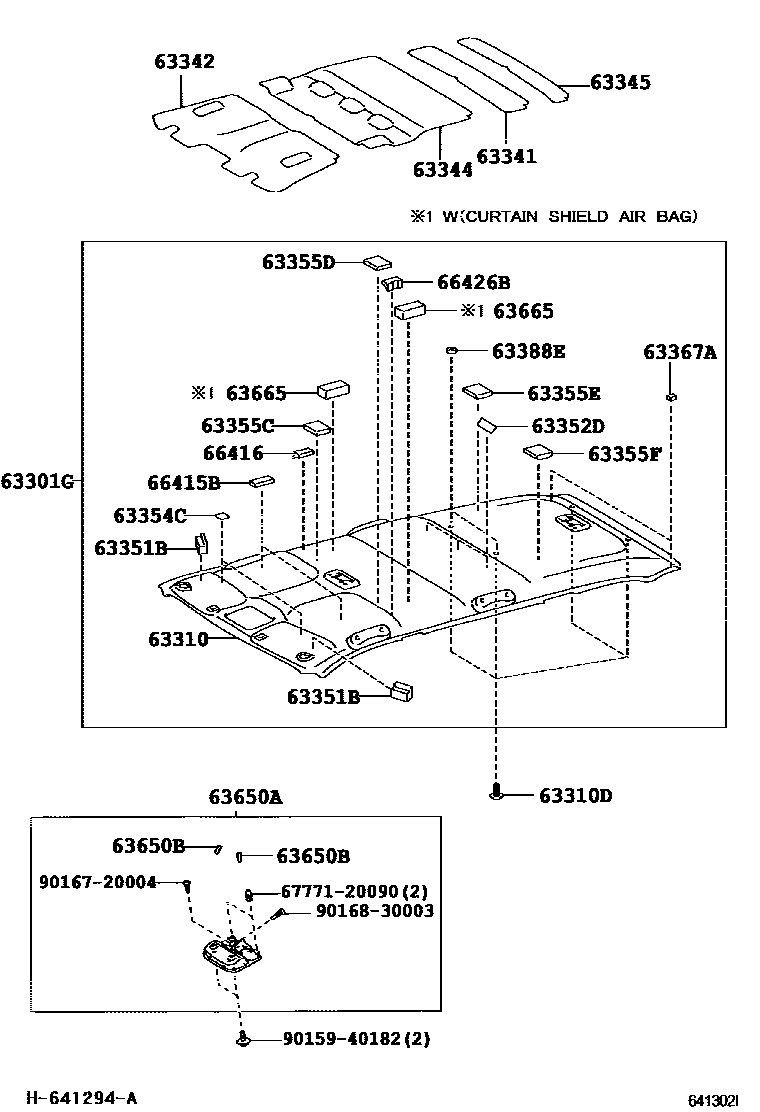

ROOF HEADLINING & SILENCER PAD
63301GHEADLINING SUB-ASSY, ROOF, FRONT
IVORY,TRIM0#
sub63310-48220
sub63351-48010
sub63352-48030
sub63354-48040
sub63355-48050
sub63355-48060
sub63367-48010
sub63388-48010
sub66415-48030
sub66416-48030
sub66426-48050
LT. GRAY,TRIM1#
sub63310-48220
sub63351-48010
sub63352-48030
sub63354-48040
sub63355-48050
sub63355-48060
sub63367-48010
sub63388-48010
sub66415-48030
sub66416-48030
sub66426-48050
W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#
sub63310-48220
sub63351-48010
sub63352-48030
sub63354-48040
sub63355-48050
sub63355-48060
sub63367-48010
sub63388-48010
sub63665-48010
sub66415-48030
sub66416-48030
sub66426-48050
W(SRS CURTAIN SHIELD AIR BAG),LT. GRAY,TRIM1#
sub63310-48220
sub63351-48010
sub63352-48030
sub63354-48040
sub63355-48050
sub63355-48060
sub63367-48010
sub63388-48010
sub63665-48010
sub66415-48030
sub66416-48030
sub66426-48050
W(MOON ROOF) OR W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#
sub63310-48230
sub62213-48020
sub62214-48020
sub63351-48010
sub63354-48050
sub63355-48060
sub63367-48010
sub63388-48010
W(MOON ROOF) OR W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT. GRAY,TRIM1#
sub63310-48230
sub62213-48020
sub62214-48020
sub63351-48010
sub63354-48050
sub63355-48060
sub63367-48010
sub63388-48010
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
LT. GRAY,TRIM1#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),LT. GRAY,TRIM1#
63310DCLIP, ROOF HEADLINING
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63344PAD, ROOF SILENCER, NO.4
W(MOON ROOF)
63345PAD, ROOF SILENCER, NO.5
63351BPAD, ROOF HEADLINING
63352DPAD, ROOF HEADLINING, NO.2
63354CPAD, ROOF HEADLINING FRONT SIDE
W(MOON ROOF)
63355CPAD, ROOF HEADLINING, RH
63355DPAD, ROOF HEADLINING, LH
63355EPAD, ROOF HEADLINING, NO.2 RH
63355FPAD, ROOF HEADLINING, NO.2 LH
63367ASUPPORT, ROOF HEADLINING, C NO.1
63388ESTOPPER, ROOF HEADLINING TRIM CLIP
63650ABOX ASSY, ROOF CONSOLE
63650BBULB, ROOF CONSOLE BOX
63665SPACER, ROOF HEADLINING
W(SRS CURTAIN SHIELD AIR BAG)
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66416SPACER, SIDE RAIL, REAR NO.3 RH
66426BSPACER, SIDE RAIL, REAR NO.3 LH
6777120090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20090
9015940182
main90159-40182
9016720004
main90167-20004
9016830003
main90168-30003
26 parts on this diagram · 2 diagrams in section
