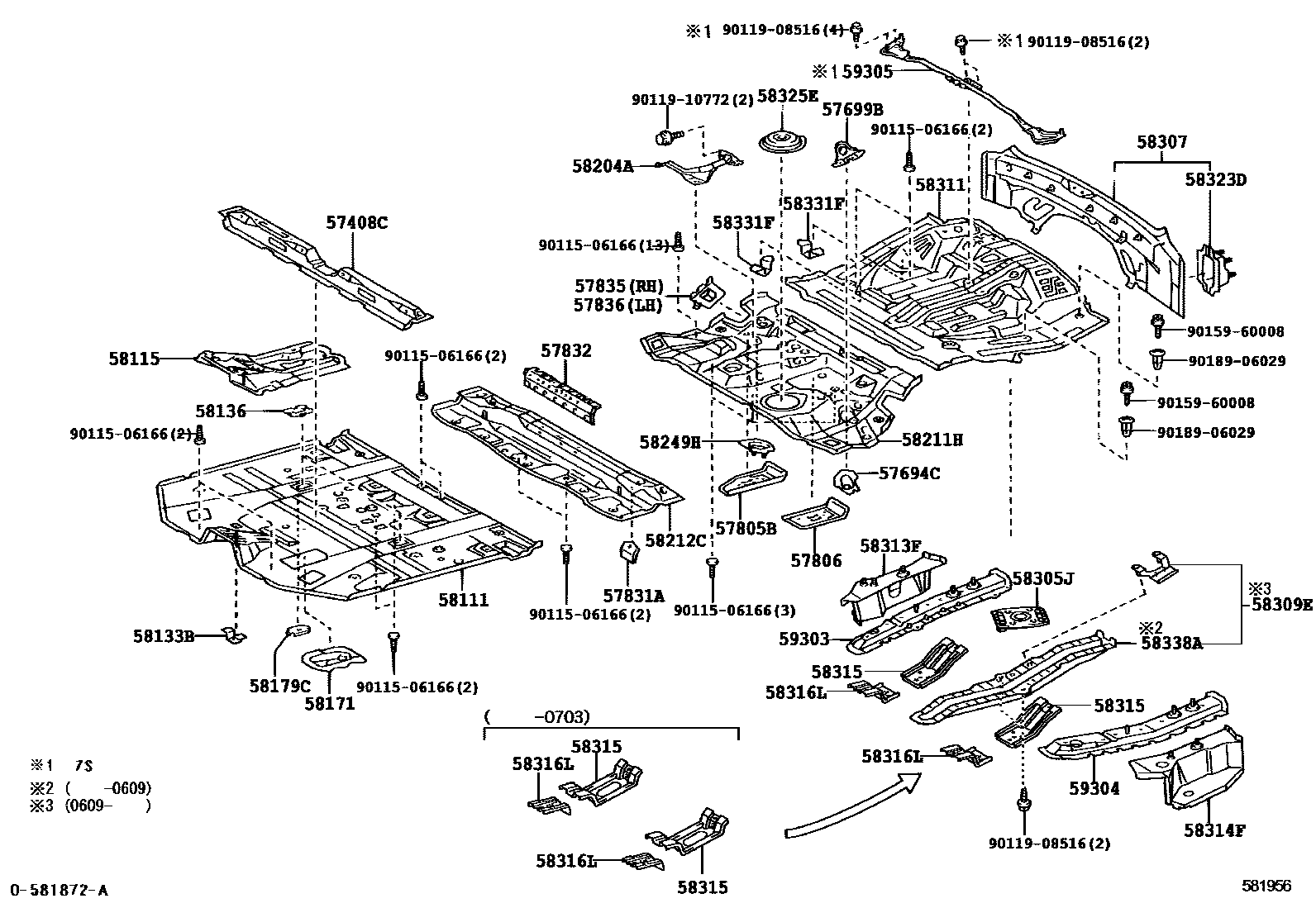

FLOOR PAN & LOWER BACK PANEL
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
sub58211-48908
58212CPAN, CENTER FLOOR, FRONT
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58316LEXTENSION, REAR FLOOR SIDE PANEL, REAR
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
RH
LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
sub58309-48010
59303PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH
59304PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH
59305MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS
9011506166
main90115-06166
9011908516
main90119-08516
9011910772
main90119-10772
9015960008
main90159-60008
9018906029
main90189-06029
39 parts on this diagram · 2 diagrams in section
