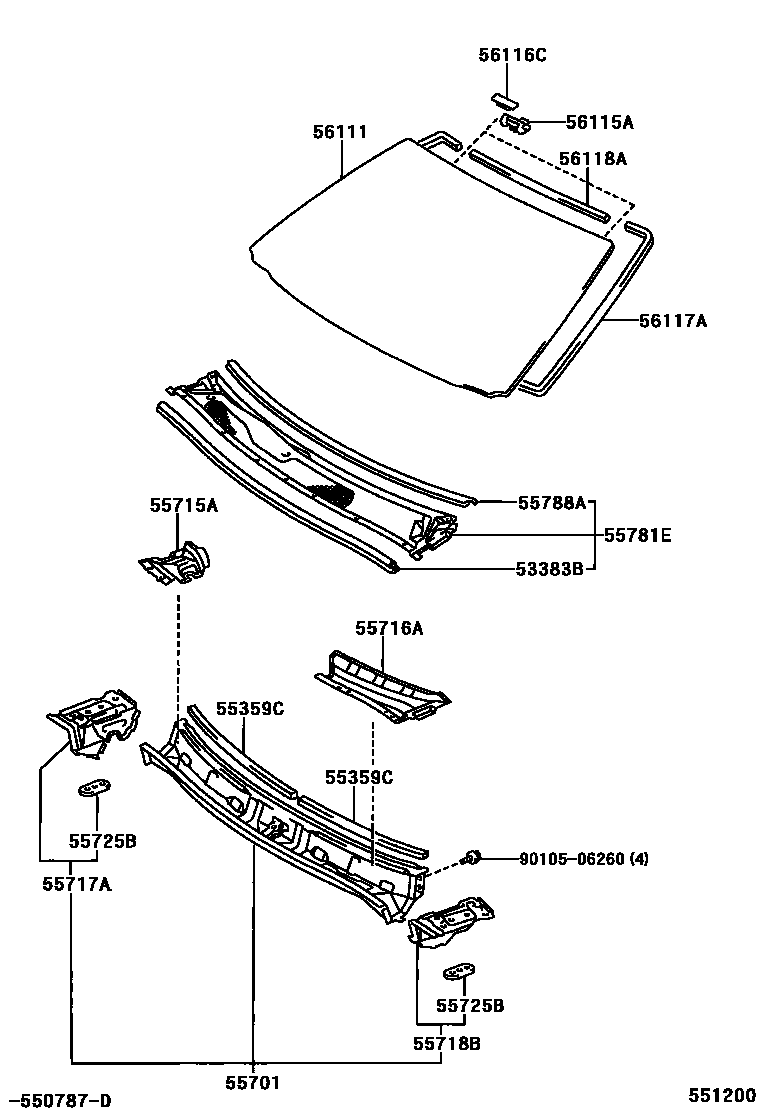

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48020iMCU28200308

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-48010×2iMCU28200308

55701PANEL SUB-ASSY, COWL

main55700-48030iMCU28200308-200705

55715ABRACE, COWL TOP TO APRON, RH

main55715-48020iMCU28200308-200705

55716ABRACE, COWL TOP TO APRON, LH

main55716-48020iMCU28200308-200705

55717APANEL, COWL TOP SIDE, INNER RH

main55717-48900iMCU28200308

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-48900iMCU28200308

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010×2iMCU28200308

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55781-48040iMCU28200308

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-48030iMCU28200308

56111GLASS, WINDSHIELD

main56111-48270iMCU28200308

*TL,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iMCU28200308

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iMCU28200308

56117ADAM, WINDOW GLASS ADHESIVE

main56117-48040iMCU28200308

L=3372

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-48040iMCU28200308

L=595

sub56117-52040

9010506260

main90105-06260

16 parts on this diagram · 1 diagram in section
