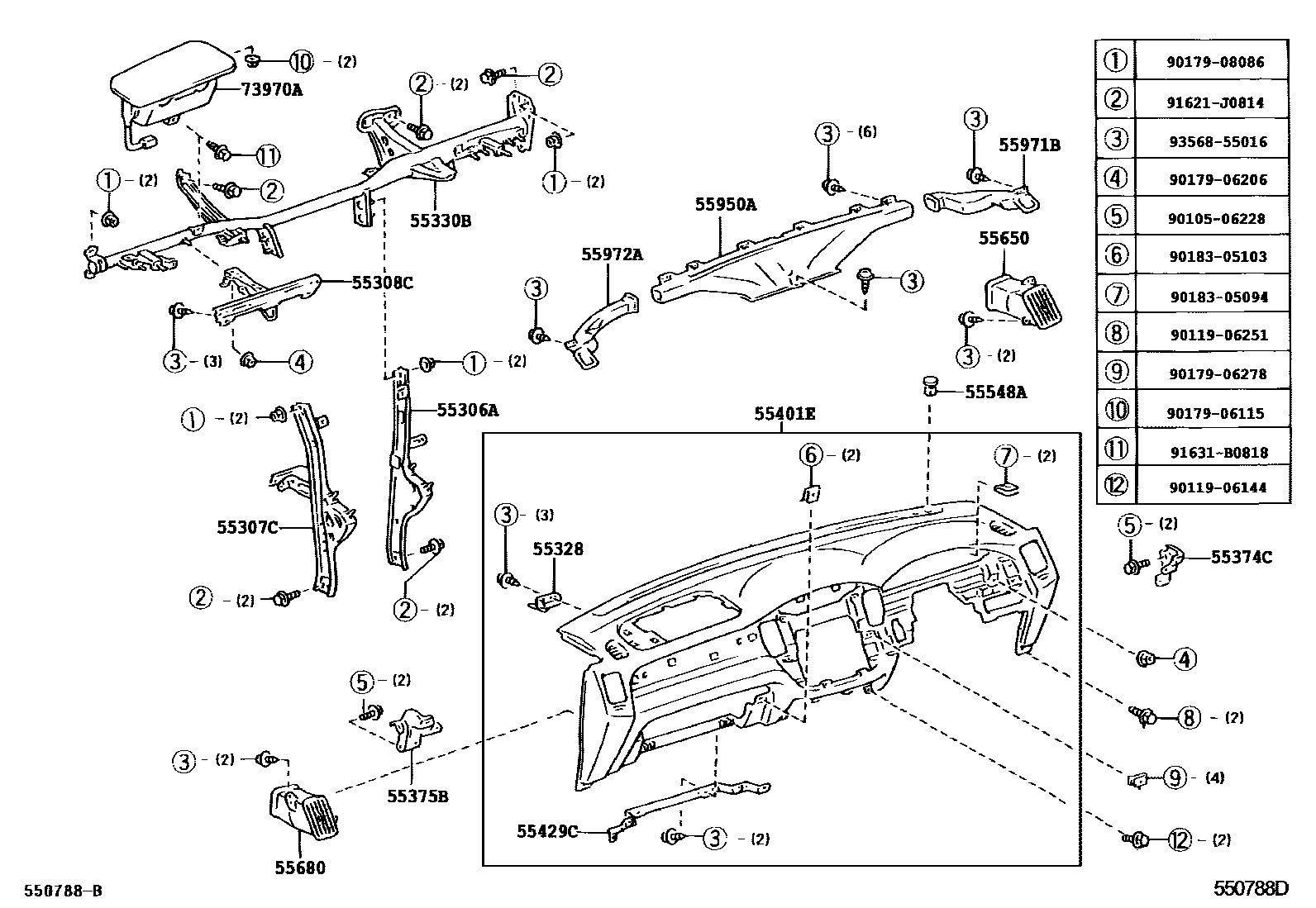

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48070iMCU28200308

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48070iMCU28200308

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48030iMCU28200308

55328PIN, INSTRUMENT PANEL, NO.1

main55346-48010×3iMCU28200308

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48100iMCU28200308-200502

main55330-48101iMCU28200502

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-48030iMCU28200308

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-48030iMCU28200308

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55301-48010-B1iMCU28200308-200705

SADDLE GRAY,TRIM1#

main55301-48010-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

55429CRETAINER, INSTRUMENT PANEL FINISH PANEL, LOWER NO.3

main55429-48020iMCU28200308

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-12070-E1iMCU28200308-200705

SANDAL WOOD,TRIM0#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-48030-B0iMCU28200308-200705

SADDLE GRAY,TRIM1#

main55650-48030-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-48030-B0iMCU28200308-200705

SADDLE GRAY,TRIM1#

main55680-48030-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

55950ANOZZLE ASSY, DEFROSTER

main55950-48020iMCU28200308

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-48020iMCU28200308

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-48020iMCU28200308

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-48050-B0iMCU28200308-200705

SADDLE GRAY,TRIM1#

main73970-48050-E0iMCU28200308-200705

SANDAL WOOD,TRIM0#

9010506228

main90105-06228

9011906144

main90119-06144

9011906251

main90119-06251

9017906115

main90179-06115

9017906206

main90179-06206

9017906278

main90179-06278

9017908086

main90179-08086

9018305094

main90183-05094

9018305103

main90183-05103

91621J0814

main91621-J0814

91631B0818

main91631-B0818

9356855016

main93568-55016

28 parts on this diagram · 4 diagrams in section
