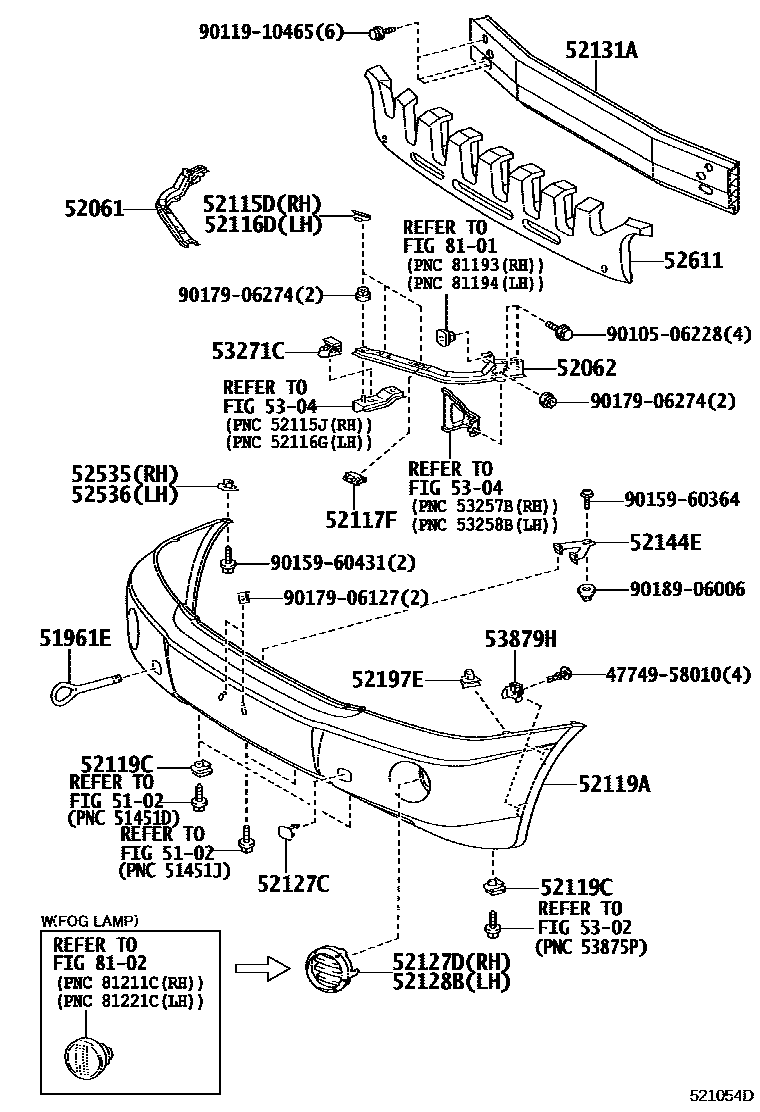

FRONT BUMPER & BUMPER STAY
5102
51961EHOOK, FRONT
sub51961-44010
52061SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52062SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52117FSUPPORT, FRONT BUMPER, UPPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
52144ESTAY, FRONT BUMPER, CENTER
52197EBRACKET, FRONT BUMPER SEAL
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5302
5304
53271CBRACKET, HEADLAMP MOUNTING
53879HRETAINER, FRONT FENDER LINER
8101
8102
4774958010CLIP, PIN HOLD
main47749-58010
9010506228
main90105-06228
9011910465
main90119-10465
9015960364
main90159-60364
9015960431
main90159-60431
9017906127
main90179-06127
9017906274
main90179-06274
9018906006
main90189-06006
32 parts on this diagram · 1 diagram in section
