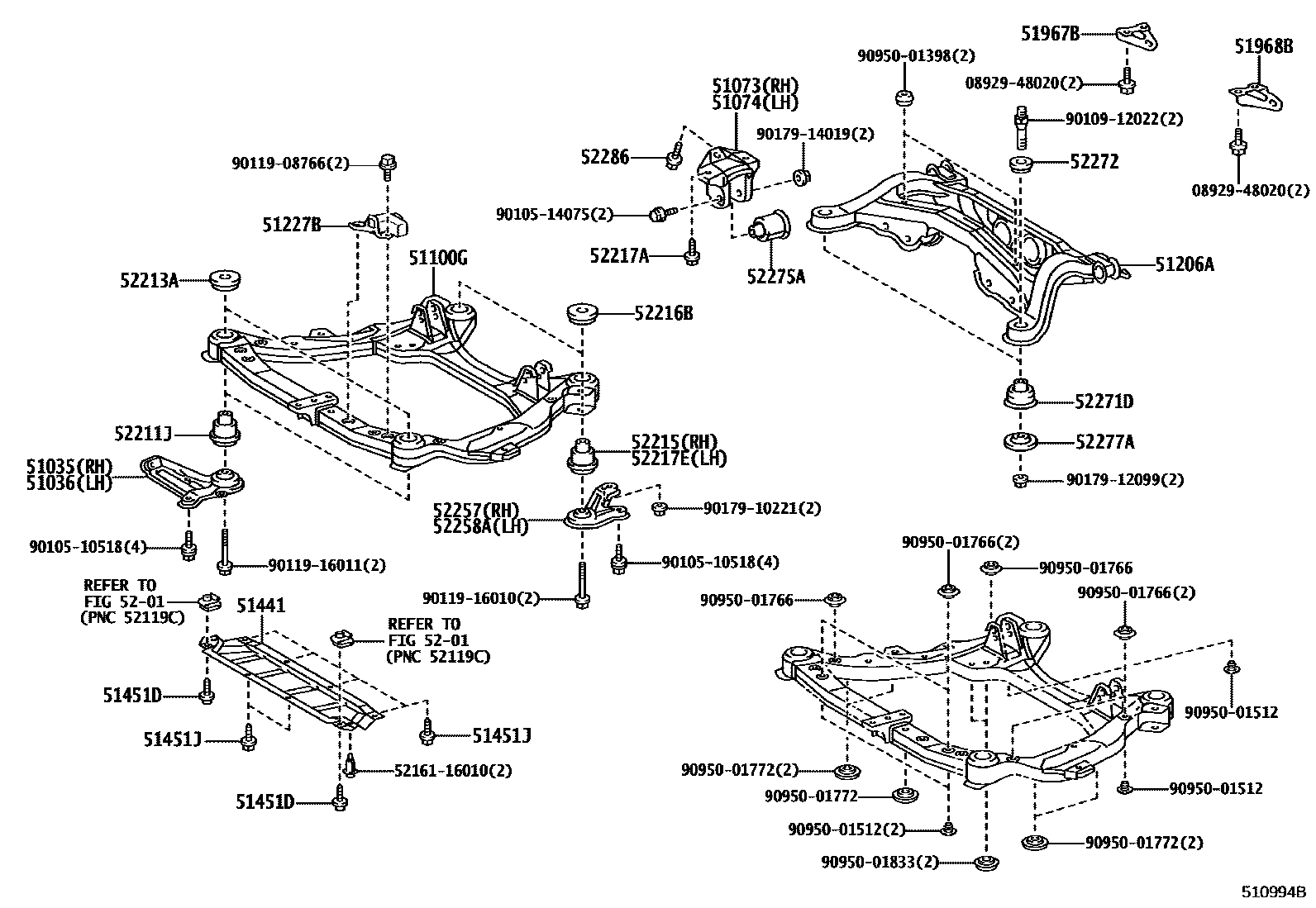

SUSPENSION CROSSMEMBER & UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48010iMCU28¥6,700200308

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48010iMCU28¥6,700200308

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-48010iMCU28¥7,500200308

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-48010iMCU28¥7,400200308

51100GFRAME ASSY, FRONT

main51100-28031iMCU28¥86,900200308-200703

sub51100-48070¥86,900

main51100-48070iMCU28¥86,900200704

sub51100-48071¥86,900

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48040iMCU28¥70,600200308

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48030iMCU28¥4,170200308

51441COVER, ENGINE UNDER, NO.1

main51441-48020iMCU28¥5,100200308

51451DSCREW, NO.1

main90159-60444iMCU28¥100200308-200705

51451JBOLT, NO.1

main90119-06699iMCU28¥70200308-200705

51967BHOOK, TRANSPORT, REAR RH

main51967-48020iMCU28¥2,730200308

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iMCU28¥1,940200308

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iMCU28¥4,930200308

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iMCU28¥2,330200308

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iMCU28¥6,200200308

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iMCU28¥1,860200308

52217ABOLT, BODY MOUNTING

main52217-48010iMCU28¥230200308

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iMCU28¥5,900200308

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iMCU28¥3,690200308

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48030iMCU28¥5,400200308

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010iMCU28¥4,570200308

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iMCU28¥810200308

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-48010iMCU28¥4,930200308

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-32010iMCU28¥1,350200308

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-48010iMCU28¥230200308

0892948020

main08929-48020

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010¥120

9010510518

main90105-10518¥140

9010514075

main90105-14075¥610

9010912022

main90109-12022¥610

9011908766

main90119-08766¥160

9011916010

main90119-16010¥780

9011916011

main90119-16011¥780

9017910221

main90179-10221¥90

9017912099

main90179-12099¥310

9017914019

main90179-14019¥130

9095001398

main90950-01398¥100

9095001512

main90950-01512¥120

9095001766

main90950-01766¥110

9095001772

main90950-01772¥200

9095001833

main90950-01833¥120

42 parts on this diagram · 1 diagram in section
