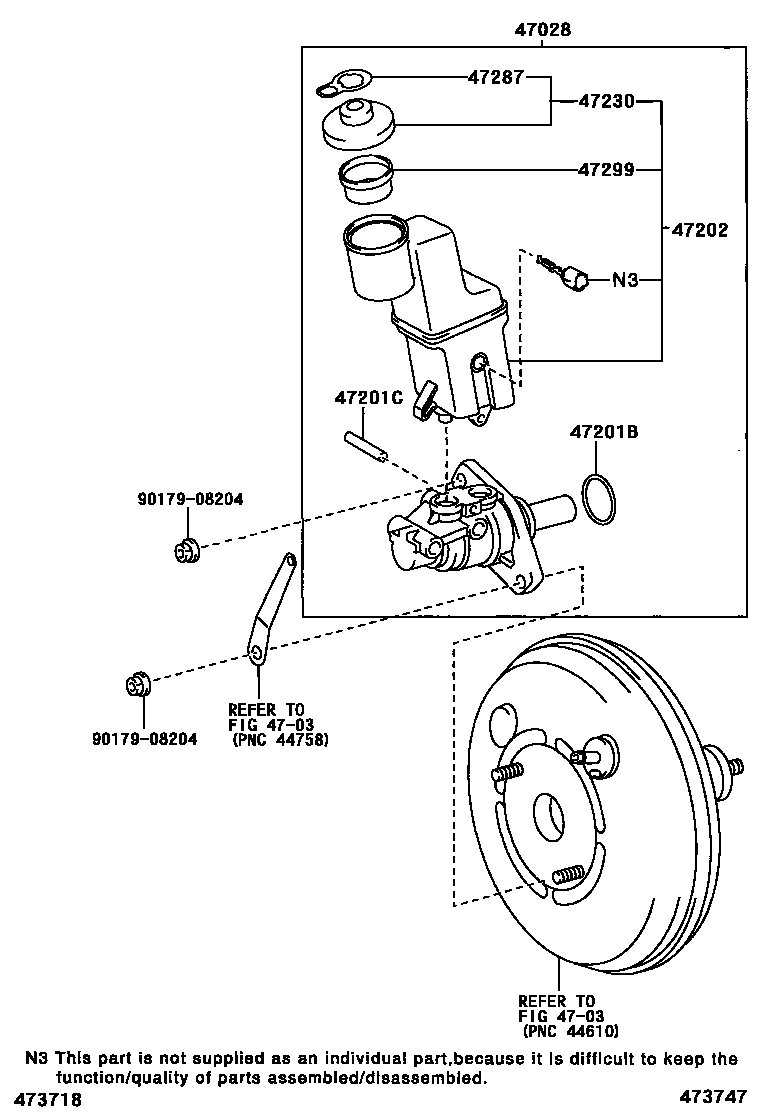

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-48030iMCU28200308-200310

sub47028-48031

main47028-48031iMCU28200310

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMCU28200308

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMCU28200308

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48150iMCU28200308

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iMCU28200308

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCU28200308

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iMCU28200308

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
