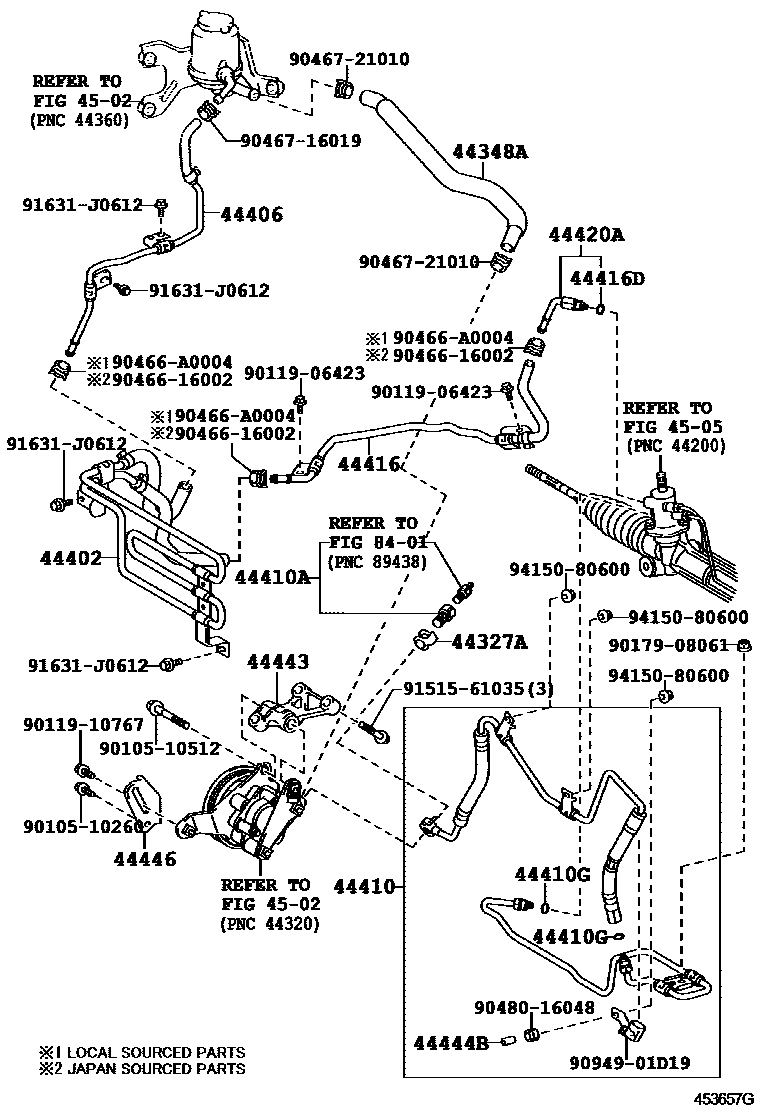

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCU28200308

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-48061iMCU28200308

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-48031iMCU28200308-200412

main44402-48032iMCU28200412

44406TUBE SUB-ASSY, RETURN

main44406-48120iMCU28200308-200412

main44406-48121iMCU28200412

44410TUBE ASSY, PRESSURE FEED

main44410-48151iMCU28200308

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCU28200308

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iMCU28200308-200705

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-48041iMCU28200308-200411

main44416-48042iMCU28200412-200604

main44416-48043iMCU28200605

44416DRING, O(FOR RETURN TUBE)

main90301-07009iMCU28200308-200705

44420ATUBE ASSY, RETURN

main44420-48020iMCU28200308

44443BRACKET, PUMP

main44443-33041iMCU28200308

44444BCOLLAR (FOR PUMP REAR STAY)

main90387-09066iMCU28200308-200405

44446STRUT, ADJUSTING

main44446-28030iMCU28200308

4502

4505

8401

9010510260

main90105-10260

9010510512

main90105-10512

9011906423

main90119-06423

9011910767

main90119-10767

9017908061

main90179-08061

9046616002

main90466-16002

90466A0004

main90466-A0004

9046716019

main90467-16019

9046721010

main90467-21010

9048016048

main90480-16048

9094901D19

main90949-01D19

9151561035

main91515-61035

91631J0612

main91631-J0612

9415080600

main94150-80600

30 parts on this diagram · 1 diagram in section
