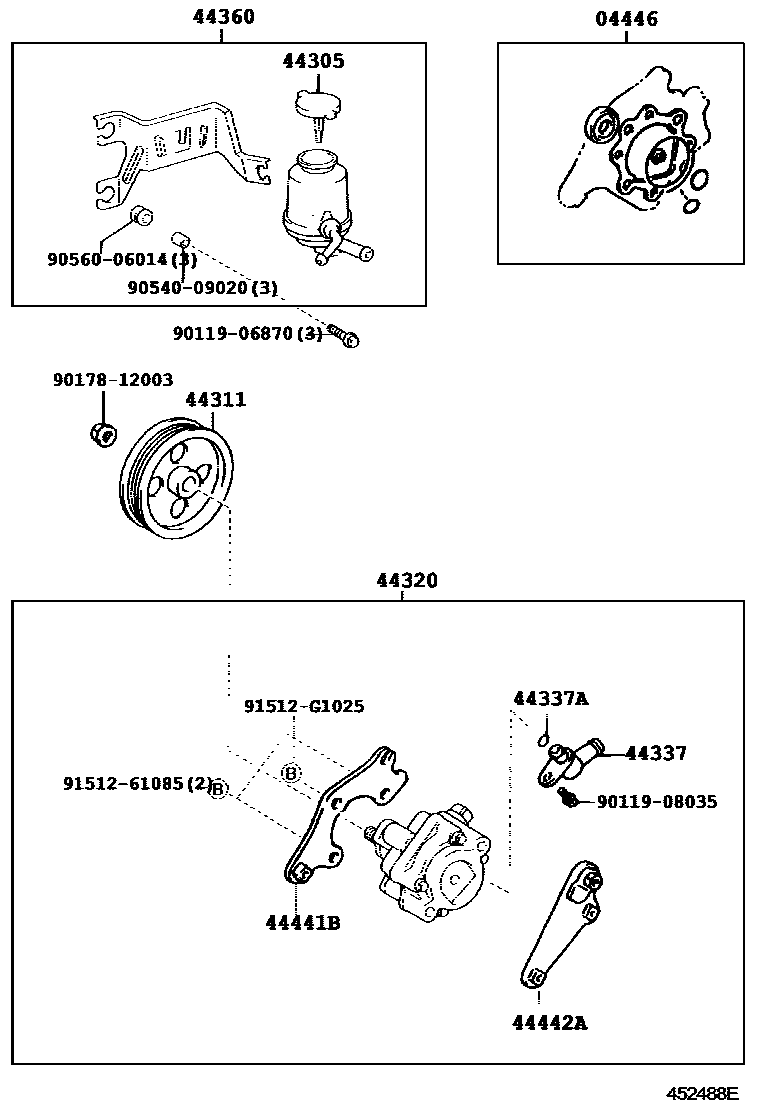

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-53030iMCU28200308

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iMCU28200308

sub44305-28060

44311PULLEY, VANE PUMP

main44311-28110iMCU28200308

44320PUMP ASSY, VANE

main44320-48040iMCU28200308

44337UNION, POWER STEERING SUCTION PORT

main44337-48020iMCU28200308

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU28200308

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48030iMCU28200308

44441BBRACKET, PUMP, FRONT

main44441-28020iMCU28200308

44442ABRACKET, VANE PUMP, REAR

main44442-33021iMCU28200308

9011906870

main90119-06870

9011908035

main90119-08035

9017812003

main90178-12003

9054009020

main90540-09020

9056006014

main90560-06014

9151261085

main91512-61085

91512G1025

main91512-G1025

16 parts on this diagram · 1 diagram in section
