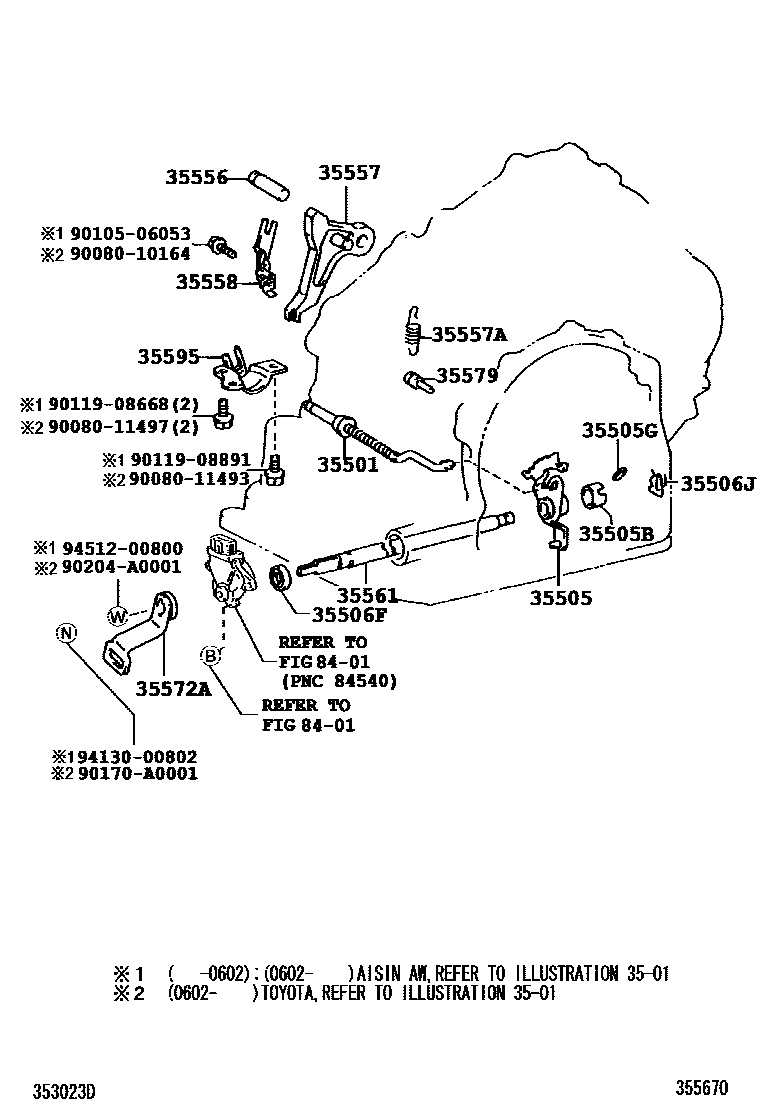

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-07010iMCU28200602-200603

(L)

main35501-21010iMCU28200308-200603

(J)

main35501-21010iMCU28200603

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iMCU28200308

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iMCU28200308

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iMCU28200308

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMCU28200308-200705

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iMCU28200308

35556SHAFT, PARKING LOCK PAWL

main35556-07010iMCU28200602

TOYOTA:REFER 35-01

sub35556-21010

main35556-28010iMCU28200308

AISIN:REFER 35-01

35557PAWL, PARKING LOCK

main35590-21010iMCU28200308

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90080-50373iMCU28200602

(L)

main90506-18077iMCU28200308

(J)

35558CLAMP, PAWL SHAFT

main35558-21010iMCU28200602

TOYOTA:REFER 35-01

main35558-28010iMCU28200308

AISIN:REFER 35-01

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iMCU28200308

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-08010iMCU28200602-200705

(L),TMC:REFER 35-01

main35572-28100iMCU28200308-200705

AISIN:REFER 35-01

sub35572-48010

main35572-48010iMCU28200602-200705

(J),TMC:REFER 35-01

35579PIN, PARKING LOCK PAWL

main35594-07010iMCU28200602

TOYOTA:REFER 35-01

sub35594-21010

main35594-28010iMCU28200308

AISIN:REFER 35-01

35595BRACKET, PARKING LOCK PAWL

main35595-21010iMCU28200308

8401

9008010164

main90080-10164

9008011493

main90080-11493

9008011497

main90080-11497

9010506053

main90105-06053

9011908668

main90119-08668

9011908891

main90119-08891

90170A0001

main90170-A0001

90204A0001

main90204-A0001

9413000802

main94130-00802

9451200800

main94512-00800

25 parts on this diagram · 1 diagram in section
