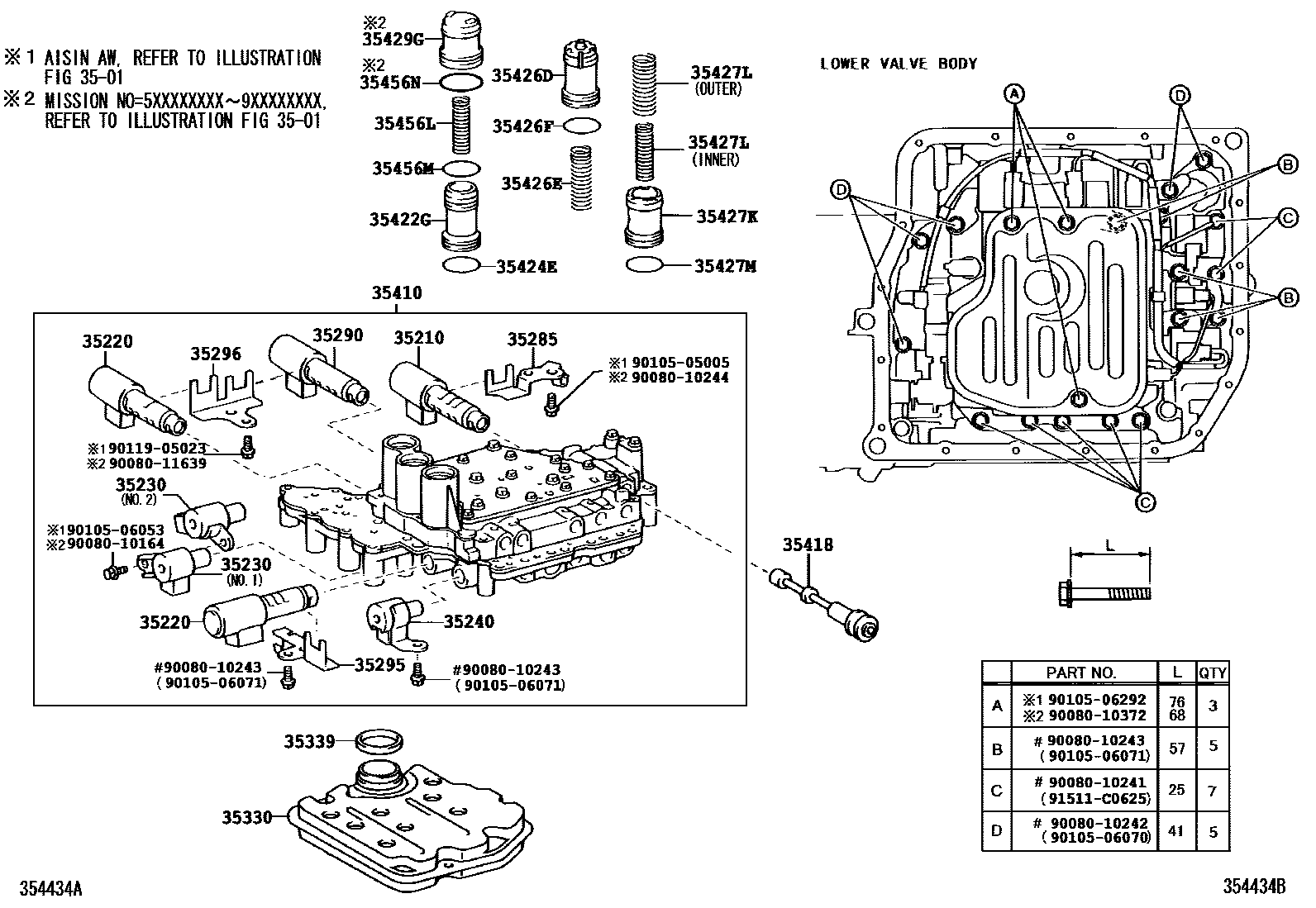

VALVE BODY & OIL STRAINER (ATM)

0001 1U151F 0002 1U151F 0003 1U151F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33020iMCU28200308-200701

AISIN:REFER 35-01

main35210-45010iMCU28200602

TOYOTA:REFER 35-01

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33020×2iMCU28200308-200701

AISIN:REFER 35-01

main35220-45010×2iMCU28200602

TOYOTA:REFER 35-01

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-33010iMCU28200308

NO.1

main35230-33020iMCU28200308

NO.2

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-33030iMCU28200308

35285PLATE, SOLENOID LOCK

main35285-07010iMCU28200602

(L),TMC:REFER 35-01

main35285-33030iMCU28200308-200701

AISIN:REFER 35-01

main35285-45010iMCU28200602

(J),TMC:REFER 35-01

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33020iMCU28200308-200701

AISIN:REFER 35-01

main35290-45010iMCU28200602

TOYOTA:REFER 35-01

35295PLATE, SOLENOID LOCK, NO.2

main35295-07010iMCU28200602

(L),TMC:REFER 35-01

main35295-33010iMCU28200308-200701

AISIN:REFER 35-01

main35295-45010iMCU28200602

(J),TMC:REFER 35-01

35296PLATE, SOLENOID LOCK, NO.3

main35296-07010iMCU28200602

(L),TMC:REFER 35-01

main35296-33010iMCU28200308-200701

AISIN:REFER 35-01

main35296-45010iMCU28200602

(J),TMC:REFER 35-01

35330STRAINER ASSY, VALVE BODY OIL

main35330-08010iMCU28200308

35339GASKET, OIL STRAINER

main90080-30077iMCU28200602

TOYOTA:REFER 35-01

main90301-32012iMCU28200308

AISIN:REFER 35-01

35410BODY ASSY, TRANSMISSION VALVE

main35410-08010iMCU28200602-200604

TOYOTA:REFER 35-01

main35410-08011iMCU28200604

TOYOTA:REFER 35-01

sub35410-33131

main35410-33130iMCU28200308-200701

AISIN:REFER 35-01

sub35410-33131

35418VALVE, MANUAL

main35418-33010iMCU28200308

35422GPISTON, REVERSE CLUTCH ACCUMULATOR

main35422-08010iMCU28200602

TOYOTA:REFER 35-01

main35422-33040iMCU28200308

AISIN:REFER 35-01

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90080-30076iMCU28200602

(L)

main90301-30007iMCU28200308

(J)

35426DPISTON, C-3 ACCUMULATOR

main35406-06010iMCU28200602

(L)

main35406-21010iMCU28200308

(J)

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90080-50387iMCU28200602-200705

TOYOTA:REFER 35-01

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90080-30076iMCU28200602

(L)

main90301-30007iMCU28200308

(J)

35427KPISTON, B-3 ACCUMULATOR

main35427-06010iMCU28200602

(L),TMC:REFER 35-01

main35427-21010iMCU28200602

(J),TMC:REFER 35-01

main35427-28010iMCU28200308

AISIN:REFER 35-01

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90080-50388iMCU28200602-200705

INNER,TMC:SEE 35-01

main90080-50389iMCU28200602-200705

OUTER,TMC:SEE 35-01

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-28008iMCU28200308

(J)

main90301-A0017iMCU28200602

(L)

35429GSLEEVE, REVERSE CLUTCH ACCUMULATOR

main35429-08010iMCU28200602

35456LSPRING, COMPRESSION (FOR C-2 CONTROL VALVE)

main90501-19038iMCU28200308

(J)

main90501-A0039iMCU28200602

(L)

35456MRING, O (FOR C-2 CONTROL)

main90301-19016iMCU28200308

35456NRING, O (FOR C-2 CONTROL)

main90301-A0018iMCU28200602

9008010164

main90080-10164

9008010241

main90080-10241

9008010242

main90080-10242

9008010243

main90080-10243

9008010244

main90080-10244

9008010372

main90080-10372

9008011639

main90080-11639

9010505005

main90105-05005

9010506053

main90105-06053

9010506070

main90105-06070

9010506071

main90105-06071

9010506292

main90105-06292

9011905023

main90119-05023

91511C0625

main91511-C0625

38 parts on this diagram · 3 diagrams in section
