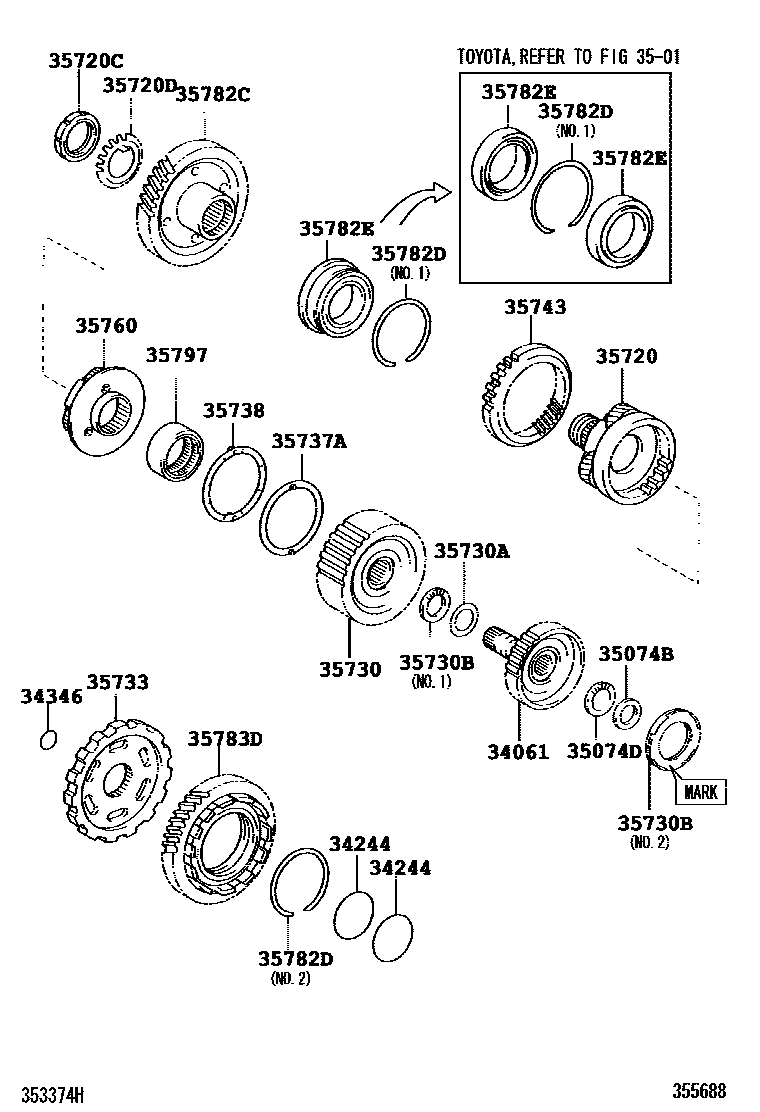

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34061HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH

main34061-07010iMCU28200602

(L)

main34061-33010iMCU28200308

(J)

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010×2iMCU28200308

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iMCU28200602

TOYOTA:REFER 35-01

main34346-28010iMCU28200308

AISIN:REFER 35-01

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-08010iMCU28200602

TOYOTA:REFER 35-01

main35789-33030iMCU28200308

AISIN:REFER 35-01

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90080-37022iMCU28200602

TOYOTA:REFER 35-01

main90374-25010iMCU28200308

AISIN:REFER 35-01

35720GEAR ASSY, FRONT PLANETARY

main35720-07010iMCU28200602-200608

(L),TMC:REFER 35-01

main35720-21031iMCU28200602-200608

(J),TMC:REFER 35-01

main35720-28070iMCU28200308

AISIN:REFER 35-01

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iMCU28200308

(J)

main90179-A0012iMCU28200602

(L)

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iMCU28200308

35730GEAR ASSY, REAR PLANETARY SUN

main35730-07010iMCU28200602

TOYOTA:REFER 35-01

main35730-33010iMCU28200308-200601

main35730-33011iMCU28200601

AISIN:REFER 35-01

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35785-08010iMCU28200602

TOYOTA:REFER 35-01

main35788-33010iMCU28200308

AISIN:REFER 35-01

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90080-37023iMCU28200602

NO.2 BLACK PAINTED

main90080-37024iMCU28200602

NO.2 BROWN PAINTED

main90080-37025iMCU28200602

*116,NO.1

main90374-31007iMCU28200308

*122,NO.1

main90374-55002iMCU28200308

NO.2,T=3.4

main90374-55003iMCU28200308

NO.2,T=3.7

35733GEAR, PARKING LOCK

main35733-48010iMCU28200308

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-08010iMCU28200602

(L)TOYOTA:REFER35-01

main35737-21010iMCU28200602

(J)TOYOTA:REFER35-01

main35737-28020iMCU28200308

AISIN:REFER 35-01

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-08010iMCU28200602

(L)

main35738-33030iMCU28200308

(J)

35743GEAR, FRONT PLANETARY RING

main35743-07010iMCU28200602

(L)TOYOTA:REFER35-01

main35743-21010iMCU28200602

(J)TOYOTA:REFER35-01

main35743-28010iMCU28200308

AISIN:REFER 35-01

35760GEAR ASSY, REAR PLANETARY

main35760-07010iMCU28200602-200608

(L)TOYOTA:REFER35-01

main35760-33040iMCU28200308

AISIN:REFER 35-01

sub35760-42010

sub35737-42010

main35760-45010iMCU28200602-200608

(J)TOYOTA:REFER35-01

sub35760-42010

sub35737-42010

35782CGEAR, COUNTER DRIVE

main35782-07010iMCU28200602

(L)TOYOTA:REFER35-01

main35782-33020iMCU28200308

AISIN:REFER 35-01

main35782-45010iMCU28200602

(J)TOYOTA:REFER35-01

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90080-52128iMCU28200602

*116,NO.1,(L)

main90080-52134iMCU28200602

*116,NO.2,(L)

main90520-84001iMCU28200602

*116,NO.1,(J)

main90520-87004iMCU28200308

*122,NO.1

main90520-89004iMCU28200602

*116,NO.2,(J)

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90080-36121×2iMCU28200602

TOYOTA:REFER 35-01

main90366-59001iMCU28200308

35783DGEAR, COUNTER DRIVEN

main35783-07010iMCU28200602

(L)TOYOTA:REFER35-01

main35783-33030iMCU28200308

AISIN:REFER 35-01

main35783-45010iMCU28200602

(J)TOYOTA:REFER35-01

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iMCU28200308

21 parts on this diagram · 1 diagram in section
