TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

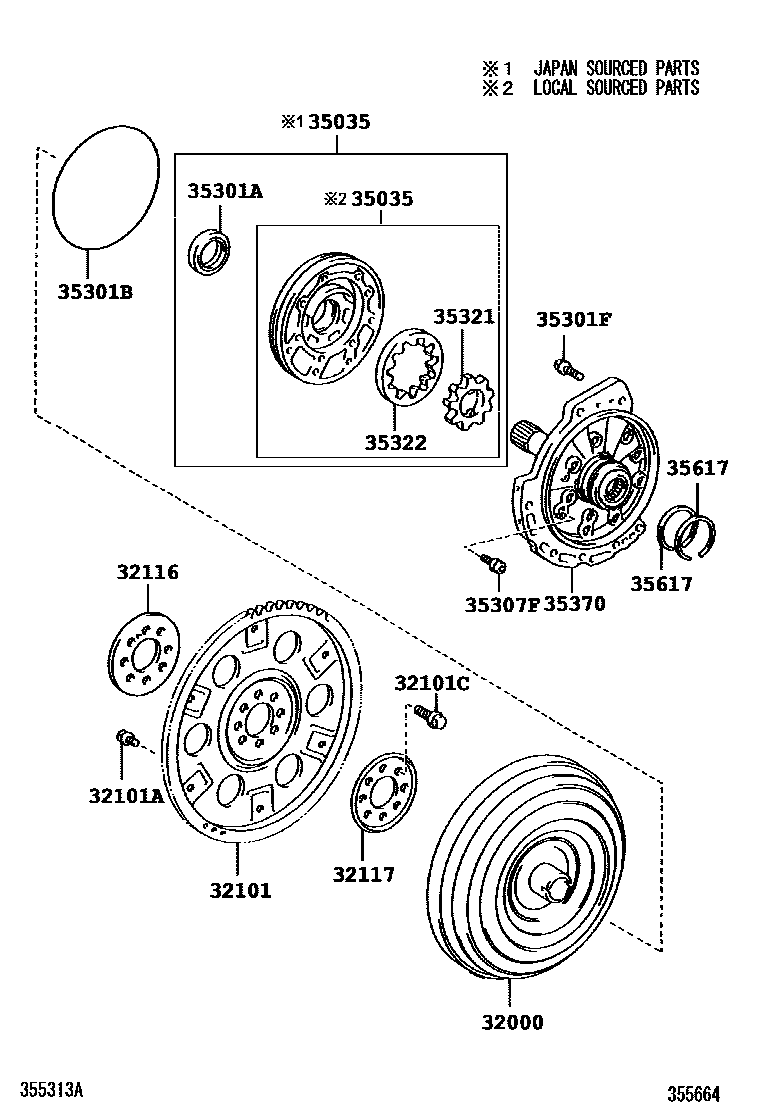

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-08010i200602-200705
(L)
main32000-48040i200308-200705
(J)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06010i200308
(L)
sub32101-48010
main32101-48010i200308
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200308
*9-1.25PX12.4-7.3,GREEN
main90119-09025i200308
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200308
*10-1.25PX18-13,(J)
main90105-A0022i200308
*10-1.25PX18-13,(L)
sub90105-10048
32116SPACER, DRIVE PLATE, FRONT
main32116-32020i200308
32117SPACER, DRIVE PLATE, REAR
main32117-32020i200308
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-08010i200406
(L)
main35035-33020i200308
(J)
sub35035-12080
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90080-31068i200406
(L)
main90311-38083i200308
(J)
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90080-30078i200602
(L)
main90301-99099i200308
(J)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90080-10236i200602
*8-1.25PX28-28,TOYOTA:REFER 35-01
main90105-08050i200308-200403
*8-1.25PX28-28
main90105-08198i200403
*8-1.25PX28-28,AISIN:REFER 35-01
35307FBOLT (FOR STATOR SHAFT)
main90080-14044i200406
(L)
main90148-60027i200308
(J)
35321GEAR, FRONT OIL PUMP DRIVE
main35321-08010i200406-200705
T=11.715,MARK A,(L)
main35321-08020i200406-200705
T=11.715,MARK B,(L)
main35321-08030i200406-200705
T=11.715,MARK C,(L)
main35321-08040i200406-200705
T=11.715,MARK D,(L)
main35321-08050i200406-200705
T=11.715,MARK E,(L)
main35321-33060i200308-200705
T=11.715,MARK A,(J)
main35321-33070i200308-200705
T=11.715,MARK B,(J)
main35321-33080i200308-200705
T=11.715,MARK C,(J)
main35321-33090i200308-200705
T=11.715,MARK D,(J)
main35321-33100i200308-200705
T=11.715,MARK E,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-08010i200406-200705
T=11.715,MARK A,(L)
main35322-08020i200406-200705
T=11.715,MARK B,(L)
main35322-08030i200406-200705
T=11.715,MARK C,(L)
main35322-08040i200406-200705
T=11.715,MARK D,(L)
main35322-08050i200406-200705
T=11.715,MARK E,(L)
main35322-33060i200308-200705
T=11.715,MARK A,(J)
main35322-33070i200308-200705
T=11.715,MARK B,(J)
main35322-33080i200308-200705
T=11.715,MARK C,(J)
main35322-33090i200308-200705
T=11.715,MARK D,(J)
main35322-33100i200308-200705
T=11.715,MARK E,(J)
35370SHAFT ASSY, STATOR
main35370-06010i200406
(L)
main35370-28010i200308
(J)
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200308

15 parts on this diagram · 1 diagram in section
