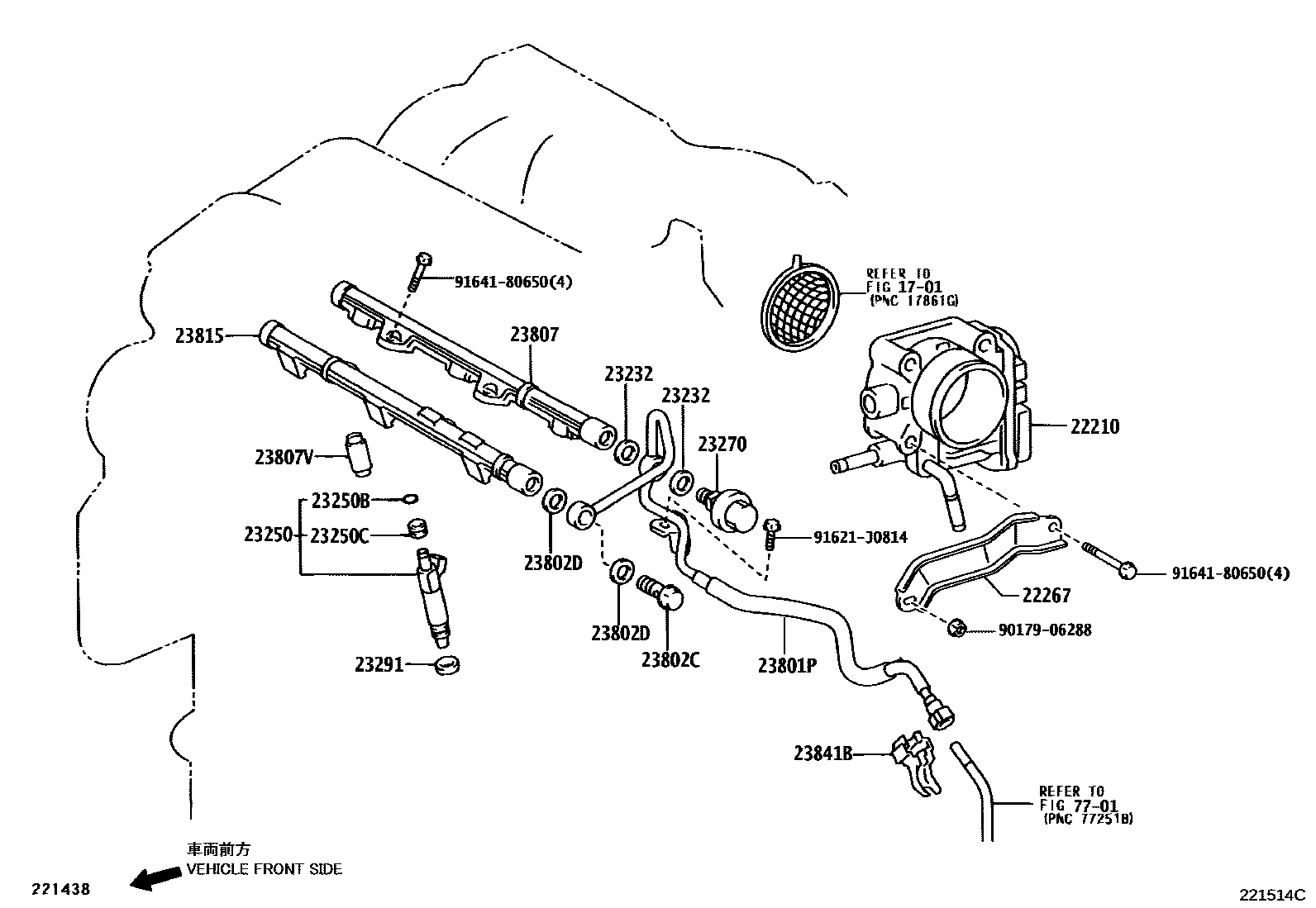

FUEL INJECTION SYSTEM

0001 1 0002 1

1701

22210BODY ASSY, THROTTLE

main22030-20060i3MZFE..MCU28200308-200705

22267BRACKET, THROTTLE BODY

main22267-20020i3MZFE..MCU28200407

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i3MZFE..MCU28200308

23250INJECTOR ASSY, FUEL

main23209-20030i3MZFE..MCU28200308

sub23209-20040

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i3MZFE..MCU28200308-200502

main90301-07037i3MZFE..MCU28200502

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3MZFE..MCU28200308

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-62010i3MZFE..MCU28200308-200410

sub23270-62011

main23270-62011i3MZFE..MCU28200410

sub23207-20010

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i3MZFE..MCU28200308

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20180i3MZFE..MCU28200308

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i3MZFE..MCU28200308

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026i3MZFE..MCU28200308

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i3MZFE..MCU28200308-200401

sub23814-20021

main23814-20021i3MZFE..MCU28200401

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i3MZFE..MCU28200308

23815PIPE, FUEL DELIVERY, NO.2

main23815-20020i3MZFE..MCU28200308-200401

sub23815-20021

main23815-20021i3MZFE..MCU28200401

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3MZFE..MCU28200705

main23841-28010i3MZFE..MCU28200308-200704

sub23841-21050

7701

9017906288

main90179-06288

91621J0814

main91621-J0814

9164180650

main91641-80650

20 parts on this diagram · 2 diagrams in section
