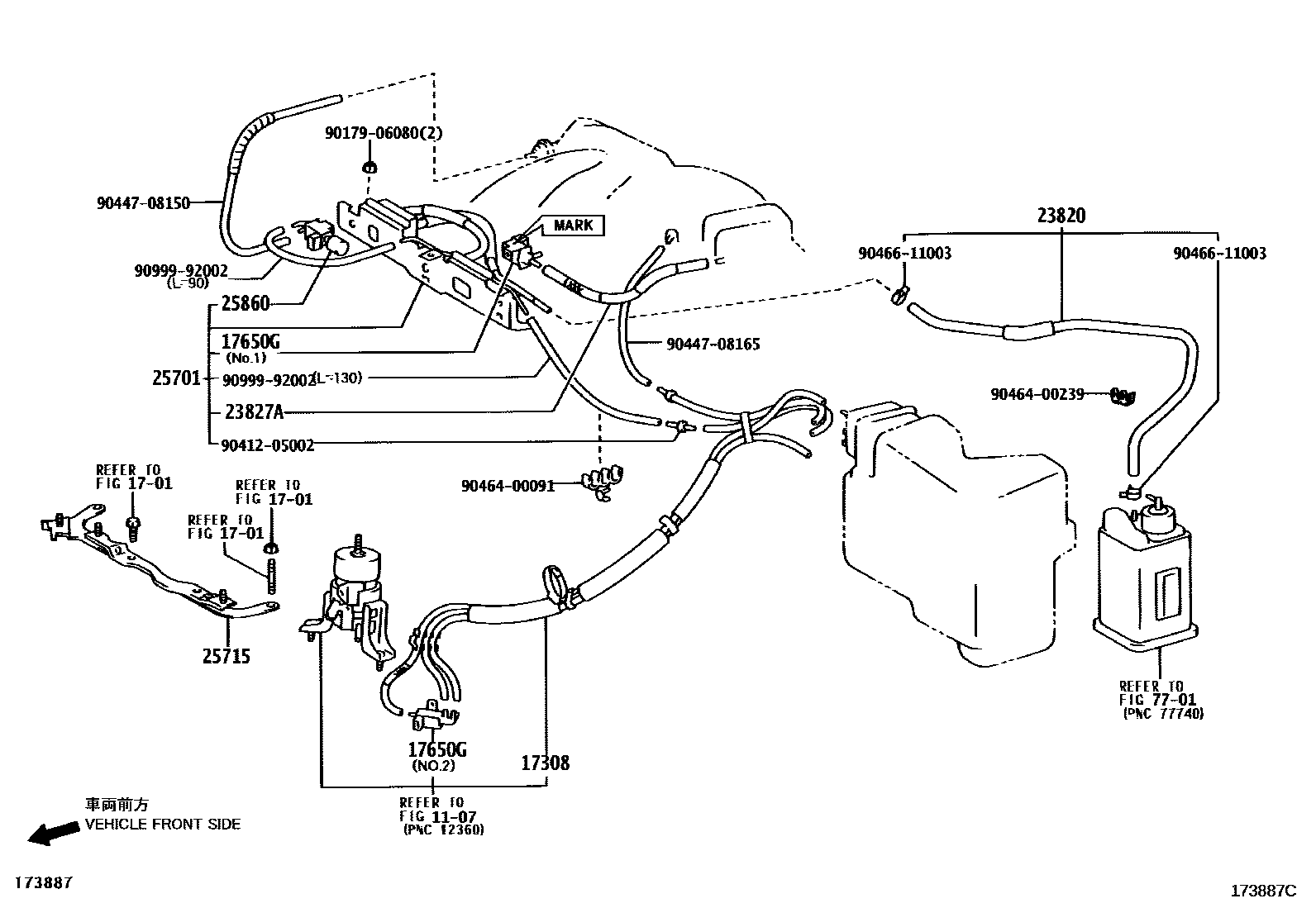

VACUUM PIPING

1107

1701

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-20230i3MZFE..MCU28200308

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i3MZFE..MCU28200308

NO.2

main90910-12259i3MZFE..MCU28200308

NO.1,MARK 90910-12259

main90910-12272i3MZFE..MCU28200308

MARK 90910-12272

23820HOSE ASSY, FUEL VAPOR FEED

main23820-20220i3MZFE..MCU28200308

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-20060i3MZFE..MCU28200308

25701VALVE SET, EMISSION CONTROL

main25701-20220i3MZFE..MCU28200308

25715BRACKET, EMISSION CONTROL VALVE

main25715-20020i3MZFE..MCU28200308-200407

main25715-20021i3MZFE..MCU28200407

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-62010i3MZFE..MCU28200308

7701

9017906080

main90179-06080

9041205002

main90412-05002

9044708150

main90447-08150

9044708165

main90447-08165

9046400091

main90464-00091

9046400239

main90464-00239

9046611003

main90466-11003

9099992002

main90999-92002

18 parts on this diagram · 1 diagram in section
