HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

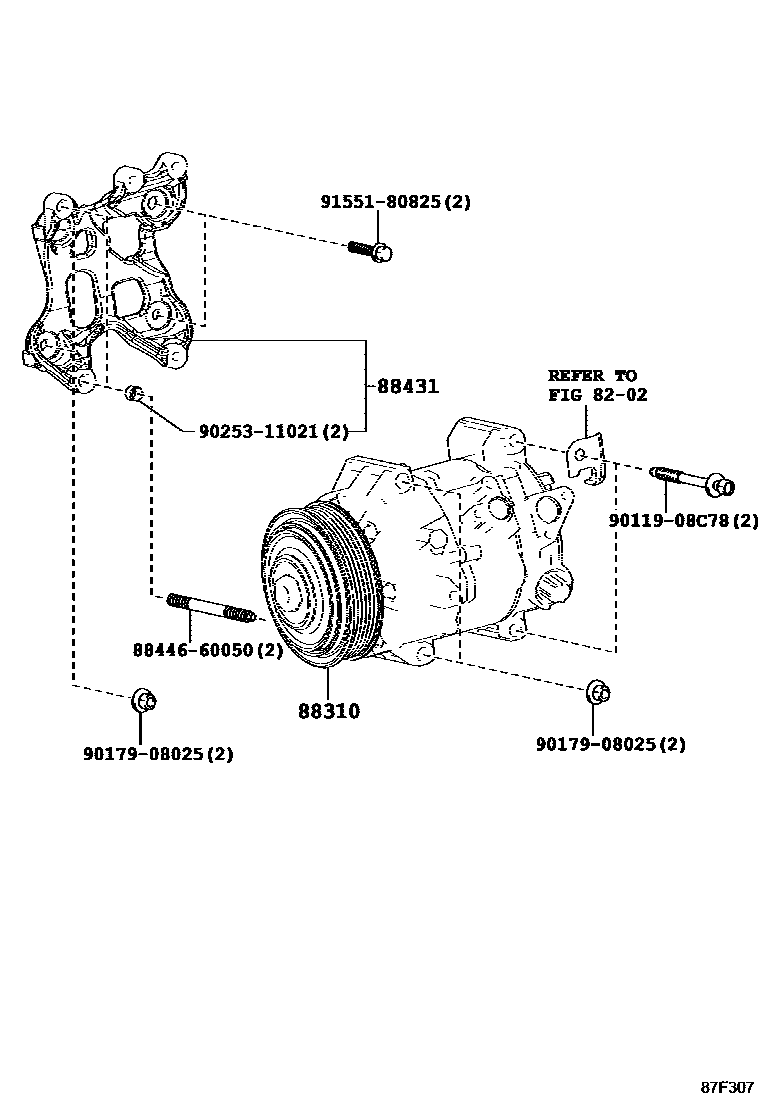

8202

88310COMPRESSOR ASSY, W/PULLEY

main88310-48320iAGL2#201509-201711

sub88310-48321

main88310-48321iAGL2#201712-201908

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iAGL2#201509-201908

main88431-48050iGGL2#201509-201908

main88431-48060iGYL25..GCC,GEN201510-201908

main88431-48070iGYL25..CHI201510-201908

8844660050BOLT, IDLE PULLEY

main88446-60050

9011908C78

main90119-08C78

9017908025

main90179-08025

9025311021

main90253-11021

9155180825

main91551-80825

8 parts on this diagram · 10 diagrams in section
