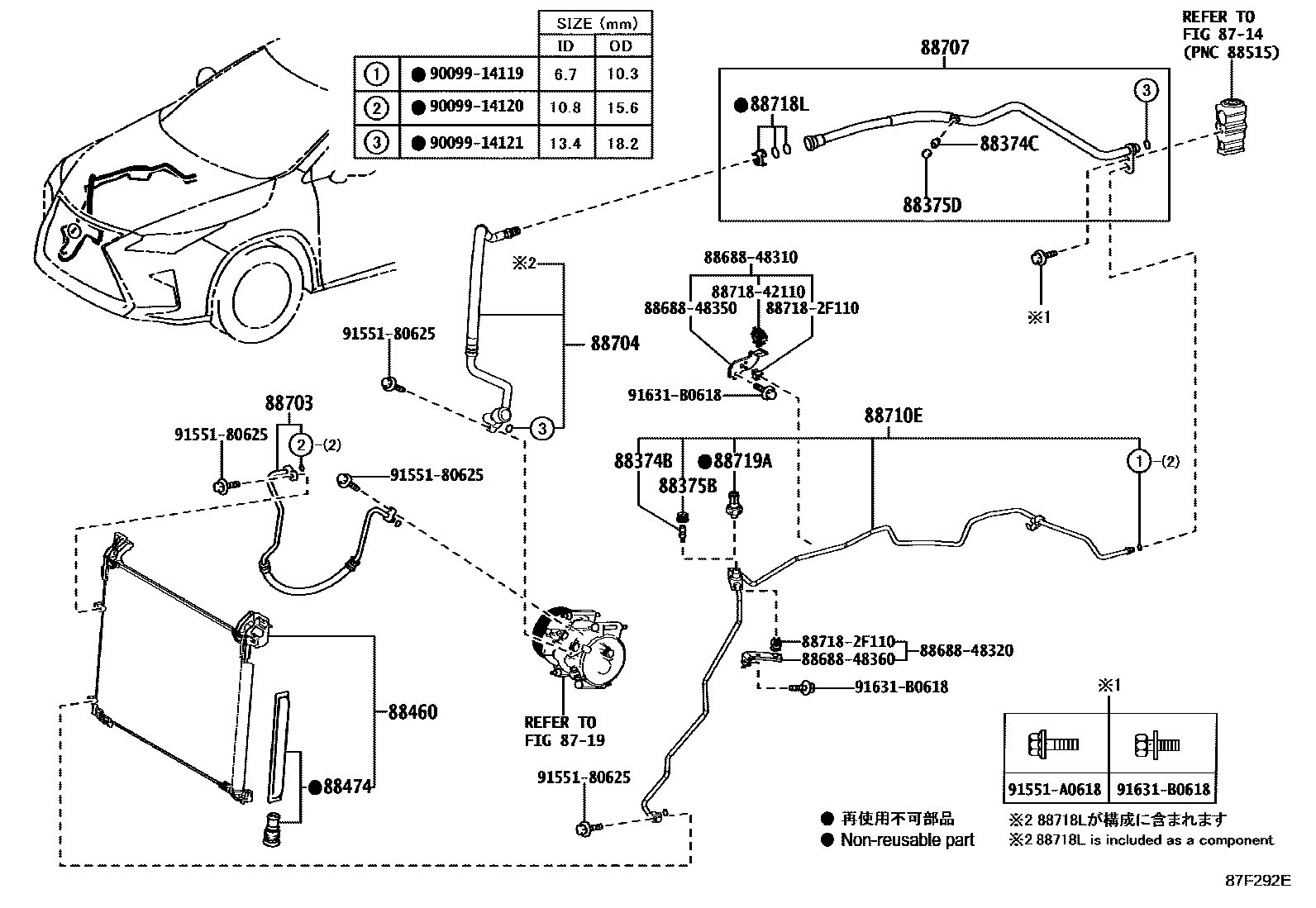

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAGL2#,GGL2#,GYL25201509-201908

88374CVALVE, SERVICE, NO.2

main88374-30010iAGL2#,GGL2#,GYL25201509-201908

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAGL2#,GGL2#,GYL25201509-201908

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAGL2#,GGL2#,GYL25201509-201908

88460CONDENSER ASSY, COOLER

main88460-48210iGGL2#201509-201908

main88460-48220iGYL25201510-201908

main88460-48230iAGL2#201509-201908

88474DRYER, COOLER

main88474-12010iAGL2#,GGL2#201509-201908

main88474-47020iGYL25201510-201908

88703HOSE SUB-ASSY, DISCHARGE

main88703-48310iGGL2#201509-201908

main88703-48320iGYL25..CHI,GEN201510-201908

main88703-48330iGYL25..GCC201510-201908

main88703-48340iAGL2#201509-201908

88704HOSE SUB-ASSY, SUCTION

main88704-48300iGGL2#201509-201908

main88704-48310iGYL25201510-201908

main88704-48320iAGL2#201509-201908

88707PIPE SUB-ASSY, SUCTION

main88707-48211iGGL2#..LHD..GEN201509-201908

main88707-48221iGYL25..LHD201510-201908

main88707-48231iGYL25..RHD201510-201908

main88707-48241iAGL2#201509-201908

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48560iGGL25..RHD201509-201908

main88710-48580iGGL2#..LHD201509-201908

main88710-48590iGYL25..LHD201510-201908

main88710-48600iGYL25..RHD201510-201908

main88710-48630iAGL2#201509-201908

88718LCLAMP, PIPING

main88718-52280iAGL2#,GGL2#,GYL25201509-201908

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAGL2#,GGL2#,GYL25201509-201908

8868848310BRACKET, COOLER DIAPHRAGM

main88688-48310

8868848320BRACKET, COOLER DIAPHRAGM

main88688-48320

8868848350BRACKET, COOLER DIAPHRAGM

main88688-48350

8868848360BRACKET, COOLER DIAPHRAGM

main88688-48360

887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2F110

8871842110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42110

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

91631B0618

main91631-B0618

26 parts on this diagram · 12 diagrams in section
