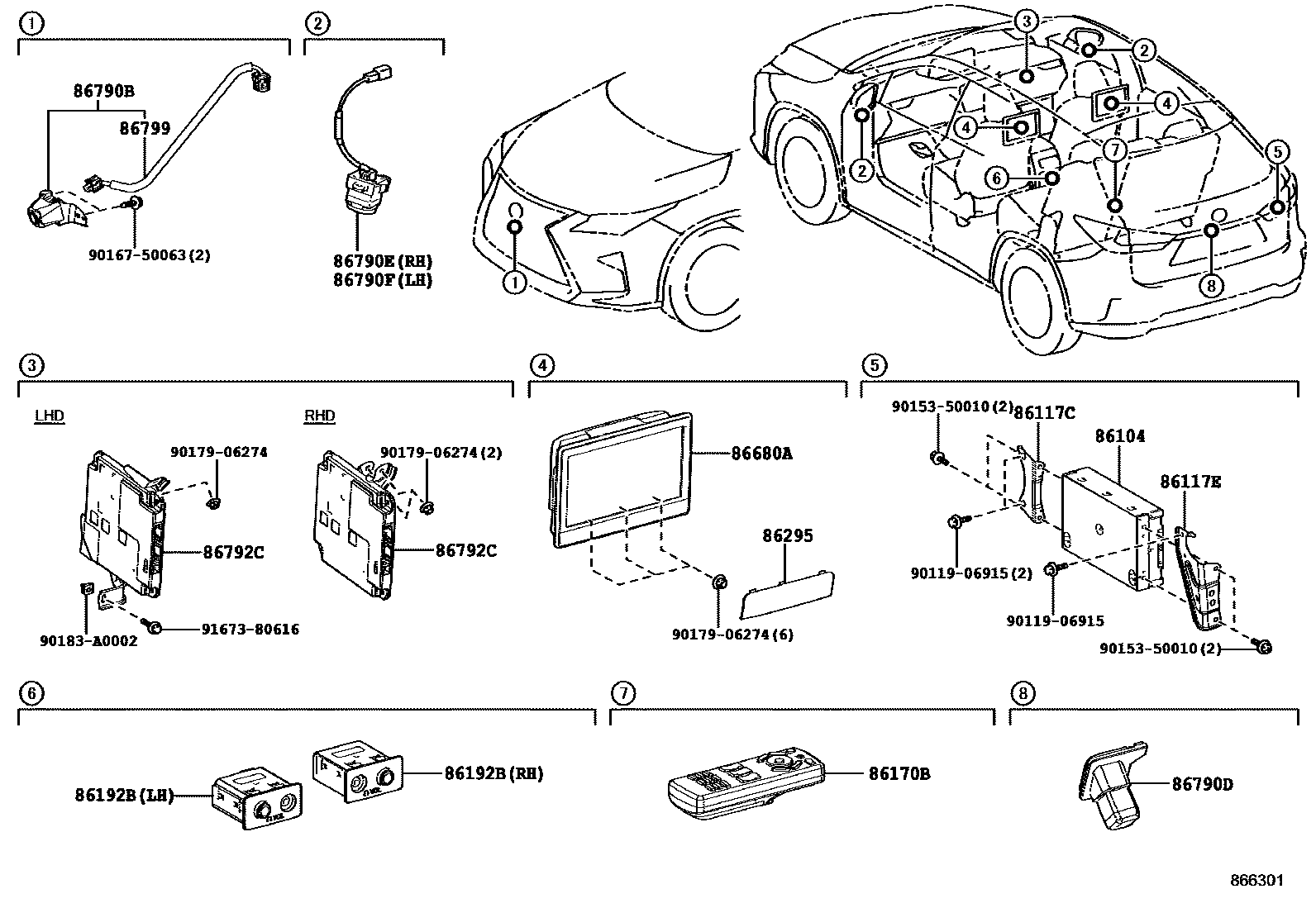

CAMERA & REAR MONITOR DISPLAY
86104CONTROLLER SUB-ASSY, MULTI-DISPLAY
AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
PHILIPPINE SPEC&AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE)
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
VIETNAM,CAMBODIA SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86170BSWITCH & VOLUME ASSY, TELEVISION
AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE)
VIETNAM,CAMBODIA SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)
86192BTERMINAL, HEADPHONE
VIETNAM,CAMBODIA SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),RH
TAIWAN SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),LH
86295BASE, TELEVISION
AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM2#,4#
VIETNAM SPEC&AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM00,01,02,03
86680ADISPLAY ASSY, TELEVISION
PANASONIC,PHILIPPINE SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV &NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK,TRIM2#,4#
PANASONIC,PHILIPPINE SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV &NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,5#,6#
PANASONIC,PHILIPPINE SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV &NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK,TRIM2#,4#
PANASONIC,PHILIPPINE SPEC&AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV &NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM0#,5#,6#
PANASONIC,AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM2#,4#
PANASONIC,AUDIO-*EMV&DVD&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,6#
PANASONIC,VIETNAM SPEC&AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM0#,2#,3#,4#,5#,6#
PANASONIC,TAIWAN SPEC&AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM00,01,02,03
PANASONIC,AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM00,01,02,03,2#,4#,5#,6#
PANASONIC,AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM00,01,02,03
86790BCAMERA ASSY, TELEVISION, FR
"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)
"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)
"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)
"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
AUDIO-DVD&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM)
AUDIO-*EMV&DVD
AUDIO-*EMV&DVD&BACK MONITOR-WITH(*PVM)
AUDIO-*EMV&DVD&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
AUDIO-*EMV&DVD&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
AUDIO-DVD&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(*PVM),EXCEPT TAIWAN
BACK MONITOR-WITH(*PVM),EXCEPT TAIWAN
BACK MONITOR-WITH(*PVM),EXCEPT TAIWAN
TAIWAN SPEC&BACK MONITOR-WITH(*PVM)
THAILAND SPEC&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITH(*PVM),EXCEPT TAIWAN
BACK MONITOR-WITH(*PVM),EXCEPT TAIWAN
BACK MONITOR-WITH(*PVM),EXCEPT TAIWAN
TAIWAN SPEC&BACK MONITOR-WITH(*PVM)
THAILAND SPEC&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86792CCOMPUTER, PARKING ASSIST
AUDIO-*EMV&DVD&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
sub86792-48680
BACK MONITOR-WITH(*PVM)
TAIWAN SPEC&BACK MONITOR-WITH(*PVM)
THAILAND SPEC&BACK MONITOR-WITH(*PVM)
THAILAND SPEC&BACK MONITOR-WITH(*PVM)
86799WIRE, TELEVISION CAMERA
BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)
9011906915
main90119-06915
9015350010
main90153-50010
9016750063
main90167-50063
9017906274
main90179-06274
90183A0002
main90183-A0002
9167380616
main91673-80616
19 parts on this diagram · 2 diagrams in section
