ELECTRONIC FUEL INJECTION SYSTEM

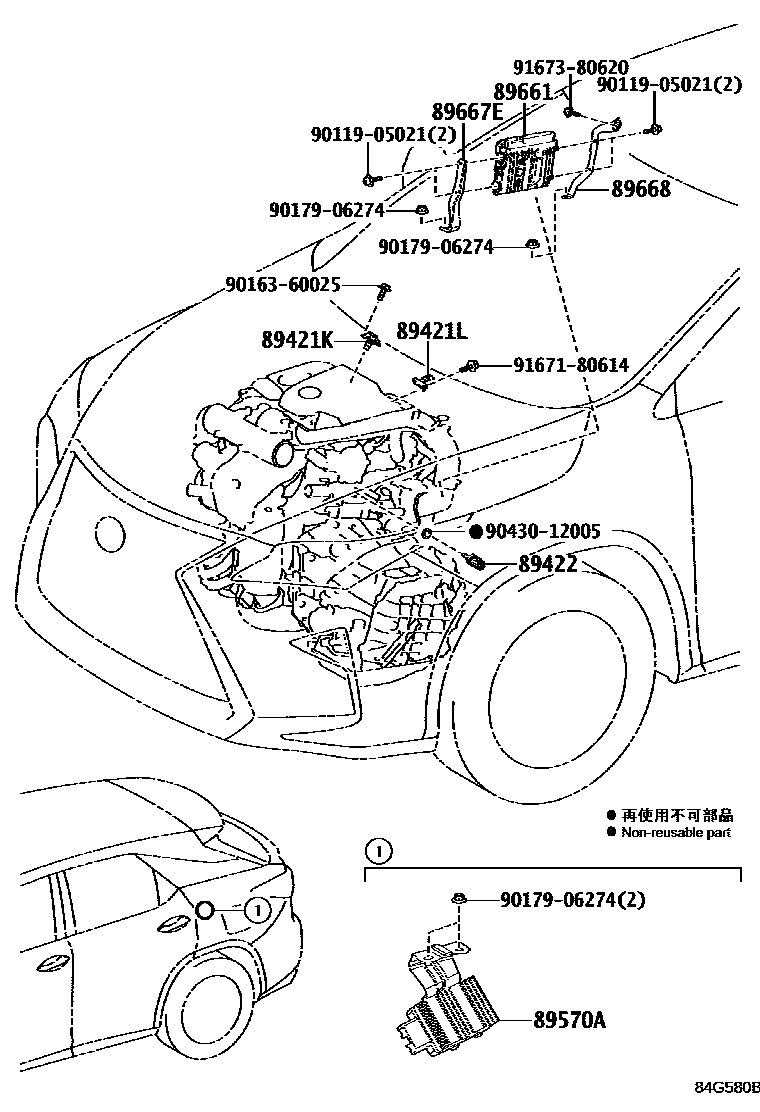

Parts diagram
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-47010i201510-201908
89421KSENSOR, TURBO PRESSURE, NO.1
main89421-78010i201509-201908
89421LSENSOR, TURBO PRESSURE, NO.2
main89421-78020i201509-201908
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i201509-201908
main89422-47010i201509-201908
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
main89570-48020i201509-201908
main89570-48021i202007-202008
TAIWAN SPEC
sub89570-48020
main89570-48040i201509-202007
89661COMPUTER, ENGINE CONTROL
main89661-48R50i201510-201712
DENSO
main89661-48R60i201510-201712
DENSO,DOMINICA SPEC
main89661-48R60i201510-201712
DENSO,PANAMA SPEC
main89661-48R60i201510-201712
DENSO,MIDDLE AMERICA SPEC
main89661-48R60i201510-201712
DENSO,SOUTH AMERICA SPEC
main89661-48R60i201510-201712
DENSO,CHILE SPEC
main89661-48R60i201510-201712
DENSO,BRUNEI SPEC
main89661-48R60i201510-201712
DENSO,INDONESIA SPEC
main89661-48R60i201510-201712
DENSO,MALAYSIA SPEC
main89661-48R60i201510-201712
DENSO,SOUTH AFRICA SPEC
main89661-48R60i201510-201712
DENSO,VIETNAM,CAMBODIA SPEC
main89661-48R60i201510-201712
DENSO,PHILIPPINE SPEC
main89661-48R60i201510-201712
DENSO
main89661-48R80i201510-201712
DENSO
sub89661-48R81
main89661-48R90i201712-201908
DENSO
main89661-48S00i201509-201712
main89661-48S10i201509-201712
main89661-48S20i201509-201712
DOMINICA SPEC
main89661-48S20i201509-201712
PHILIPPINE SPEC
main89661-48S20i201509-201712
SOUTH AFRICA SPEC
main89661-48S20i201509-201712
CHILE SPEC
main89661-48S20i201509-201712
SOUTH AMERICA SPEC
main89661-48S20i201509-201712
MIDDLE AMERICA SPEC
main89661-48S20i201509-201712
PANAMA SPEC
main89661-48S30i201509-201712
MIDDLE AMERICA SPEC
main89661-48S30i201509-201712
PANAMA SPEC
main89661-48S30i201509-201712
SOUTH AMERICA SPEC
main89661-48S30i201509-201712
CHILE SPEC
main89661-48S30i201509-201712
BRUNEI SPEC
main89661-48S30i201509-201712
INDONESIA SPEC
main89661-48S30i201509-201712
MALAYSIA SPEC
main89661-48S30i201509-201712
SOUTH AFRICA SPEC
main89661-48S30i201509-201712
VIETNAM,CAMBODIA SPEC
main89661-48S30i201509-201712
PHILIPPINE SPEC
main89661-48S30i201509-201712
DOMINICA SPEC
main89661-48S90i201509-201908
main89661-48T00i201509-201908
main89661-48U80i201712-201908
DENSO,SOUTH AFRICA SPEC
main89661-48U80i201712-201908
DENSO,SOUTH AMERICA SPEC
main89661-48U80i201712-201908
DENSO,MIDDLE AMERICA SPEC
main89661-48U80i201712-201908
DENSO,PANAMA SPEC
main89661-48U80i201712-201908
DENSO,DOMINICA SPEC
main89661-48U80i201712-201908
DENSO,COSTA RICA SPEC
main89661-48U80i201712-201908
DENSO
main89661-48U80i201712-201908
DENSO,PHILIPPINE SPEC
main89661-48U80i201712-201908
DENSO,VIETNAM,CAMBODIA SPEC
main89661-48U80i201712-201908
DENSO,MALAYSIA SPEC
main89661-48U80i201712-201908
DENSO,INDONESIA SPEC
main89661-48U80i201712-201908
DENSO,BRUNEI SPEC
main89661-48U80i201712-201908
DENSO,CHILE SPEC
main89661-48V10i201712-201811
DENSO
sub89661-48V11
main89661-48V11i201812-201901
DENSO
sub89661-48V12
main89661-48V12i201901-201908
DENSO
main89661-48V30i201712-201908
DENSO
main89661-48V40i201712-201908
DENSO
main89661-48V50i201712-201908
DENSO,COSTA RICA SPEC
main89661-48V50i201712-201908
DENSO
main89661-48V50i201712-201908
DENSO,PHILIPPINE SPEC
main89661-48V50i201712-201908
DENSO,SOUTH AFRICA SPEC
main89661-48V50i201712-201908
DENSO,CHILE SPEC
main89661-48V50i201712-201908
DENSO,SOUTH AMERICA SPEC
main89661-48V50i201712-201908
DENSO,MIDDLE AMERICA SPEC
main89661-48V50i201712-201908
DENSO,PANAMA SPEC
main89661-48V50i201712-201908
DENSO,DOMINICA SPEC
main89661-48V60i201712-201908
DENSO
main89661-48V60i201712-201908
DENSO,VIETNAM,CAMBODIA SPEC
main89661-48V60i201712-201908
DENSO,SOUTH AFRICA SPEC
main89661-48V60i201712-201908
DENSO,MALAYSIA SPEC
main89661-48V60i201712-201908
DENSO,INDONESIA SPEC
main89661-48V60i201712-201908
DENSO,BRUNEI SPEC
main89661-48V60i201712-201908
DENSO,CHILE SPEC
main89661-48V60i201712-201908
DENSO,SOUTH AMERICA SPEC
main89661-48V60i201712-201908
DENSO,MIDDLE AMERICA SPEC
main89661-48V60i201712-201908
DENSO,PANAMA SPEC
main89661-48V60i201712-201908
DENSO,DOMINICA SPEC
main89661-48V60i201712-201908
DENSO,COSTA RICA SPEC
main89661-48V60i201712-201908
DENSO,PHILIPPINE SPEC
main89661-48X60i201908
DENSO
main89661-48X70i201908
DENSO
main89661-48X80i201908
DENSO,DOMINICA SPEC
main89661-48X80i201908
DENSO
main89661-48X80i201908
DENSO,PHILIPPINE SPEC
main89661-48X80i201908
DENSO,SOUTH AFRICA SPEC
main89661-48X80i201908
DENSO,MALAYSIA SPEC
main89661-48X80i201908
DENSO,INDONESIA SPEC
main89661-48X80i201908
DENSO,BRUNEI SPEC
main89661-48X80i201908
DENSO,CHILE SPEC
main89661-48X80i201908
DENSO,PERU, BOLIVIA SPEC
main89661-48X80i201908
DENSO,GUATEMALA, HONDURAS SPEC
main89661-48X80i201908
DENSO,PANAMA SPEC
main89661-48X80i201908
DENSO,COSTA RICA SPEC
main89661-48X80i201908
DENSO,ARUBA, CURACAO SPEC
main89661-48X80i201908
DENSO,EL SALVADOR SPEC
main89661-48Y70i201908
DENSO
main89661-48Y80i201908
DENSO
main89661-48Y80i201908
DENSO,PHILIPPINE SPEC
main89661-48Y80i201908
DENSO,SOUTH AFRICA SPEC
main89661-48Y80i201908
DENSO,MALAYSIA SPEC
main89661-48Y80i201908
DENSO,BRUNEI SPEC
main89661-48Y80i201908
DENSO,CHILE SPEC
main89661-48Y80i201908
DENSO,PERU, BOLIVIA SPEC
main89661-48Y80i201908
DENSO,GUATEMALA, HONDURAS SPEC
main89661-48Y80i201908
DENSO,PANAMA SPEC
main89661-48Y80i201908
DENSO,DOMINICA SPEC
main89661-48Y80i201908
DENSO,COSTA RICA SPEC
main89661-48Y80i201908
DENSO,ARUBA, CURACAO SPEC
main89661-48Y80i201908
DENSO,EL SALVADOR SPEC
main89661-48Y80i201908
DENSO,PARAGUAY SPEC
main89661-48Z00i202007
DENSO
main89661-48Z10i201908-202007
DENSO
main89661-48Z70i201908-202007
DENSO
main89661-48Z80i201908-202007
DENSO
main89661-4D080i201812-201908
DENSO
main89661-4D090i201812-201908
DENSO
main89661-4D110i201908-202007
DENSO
sub89661-4D111
main89661-4D120i201908-202007
DENSO
sub89661-4D121
main89661-4D210i202007
DENSO
main89661-4D220i202007
DENSO
main89661-4D300i202007
DENSO
main89661-4D310i202007
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-48170i201509-201908
main89667-48180i201510-201908
main89667-48190i201509-201908
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-48190i201509-201908
main89668-48200i201510-201908
main89668-48210i201509-201908
9011905021
main90119-05021
9016360025
main90163-60025
9017906274
main90179-06274
9043012005
main90430-12005
9167180614
main91671-80614
9167380620
main91673-80620

14 parts on this diagram · 3 diagrams in section
