REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81277KSHADE, LICENSE PLATE LAMP, RH
81278HSHADE, LICENSE PLATE LAMP, LH
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LAMP ASSY, REAR COMBINATION, RH
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81558MBRACKET, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81568KBRACKET, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
AUSTRALIA SPEC
PHILIPPINE SPEC
VIETNAM,CAMBODIA SPEC
NEW ZEALAND SPEC
SOUTH AFRICA SPEC
MALAYSIA SPEC
TAIWAN SPEC
81582GASKET, REAR LAMP
81584AGASKET, REAR LAMP RH
81585SOCKET & WIRE, REAR LAMP
NEW ZEALAND SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
TAIWAN SPEC
TAIWAN SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
PHILIPPINE SPEC
PHILIPPINE SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
VIETNAM,CAMBODIA SPEC
VIETNAM,CAMBODIA SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
AUSTRALIA SPEC
AUSTRALIA SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
NEW ZEALAND SPEC
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
MALAYSIA SPEC
MALAYSIA SPEC&FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
FRONT TURN SIGNAL LAMP-WITH(LED) & SEQUENTIAL
81586CORD, REAR LAMP
81591BLENS AND BODY, REAR LAMP, LH
AUSTRALIA SPEC
SOUTH AFRICA SPEC
MALAYSIA SPEC
TAIWAN SPEC
PHILIPPINE SPEC
VIETNAM,CAMBODIA SPEC
NEW ZEALAND SPEC
81594AGASKET, REAR LAMP LH
81952ACOVER, REAR LAMP, RH
81962COVER, REAR LAMP, LH
9007502046
9015960498
9015960621
9017905102
9018906148
9018906235
9018906242

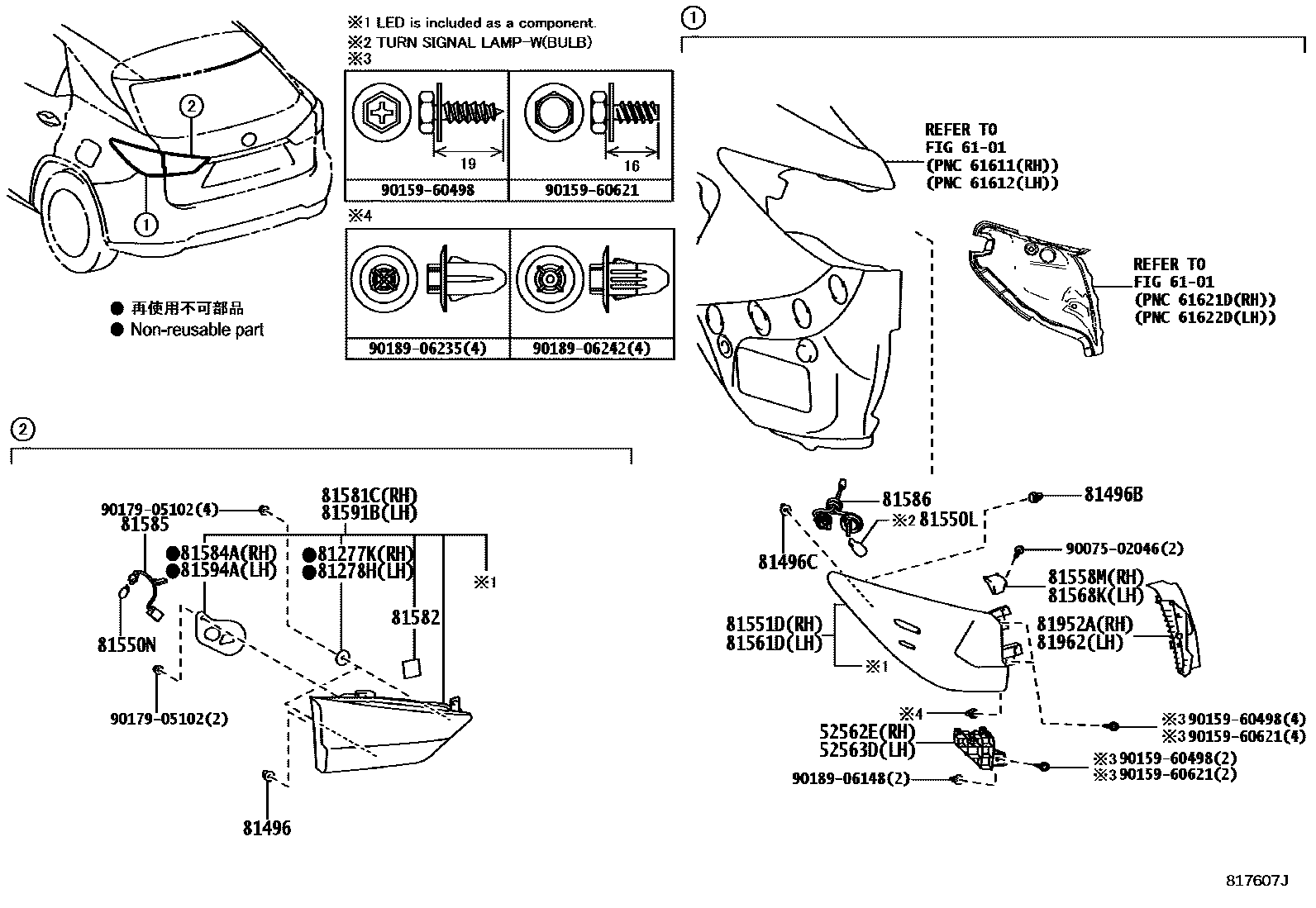

31 parts on this diagram · 2 diagrams in section
